18 HA0278T Rev H Dec 2016
Chapter 3
4) In the ‘Motor’ field, select the serial number of the drive card to be configured.
The ‘Channel’ field defaults to ‘1’ and the ‘Channel 2’ option is greyed out.
5) In the ‘Stage’ field, select your actuator type from the list displ ayed (e.g. HS
NanoMax 300 X Axis).
6) Click the 'Add Stage Association' button.
7) The server reads in the stage and controller information on start up.
Shut down the APTConfig utility and proceed to Section 3.7. to verify the software
operation. See the APT Config utility on line help for further information.
3.7 Verifying Software Operation
3.7.1 Initial Setup
The APT Software should be installed (Section 3.1.) and the stage association
performed (Section 3.6.) before software operation can be verified.
1) Run the APTUser utility and check that the Graphical User Interface (GUI) panel
appears and is active.

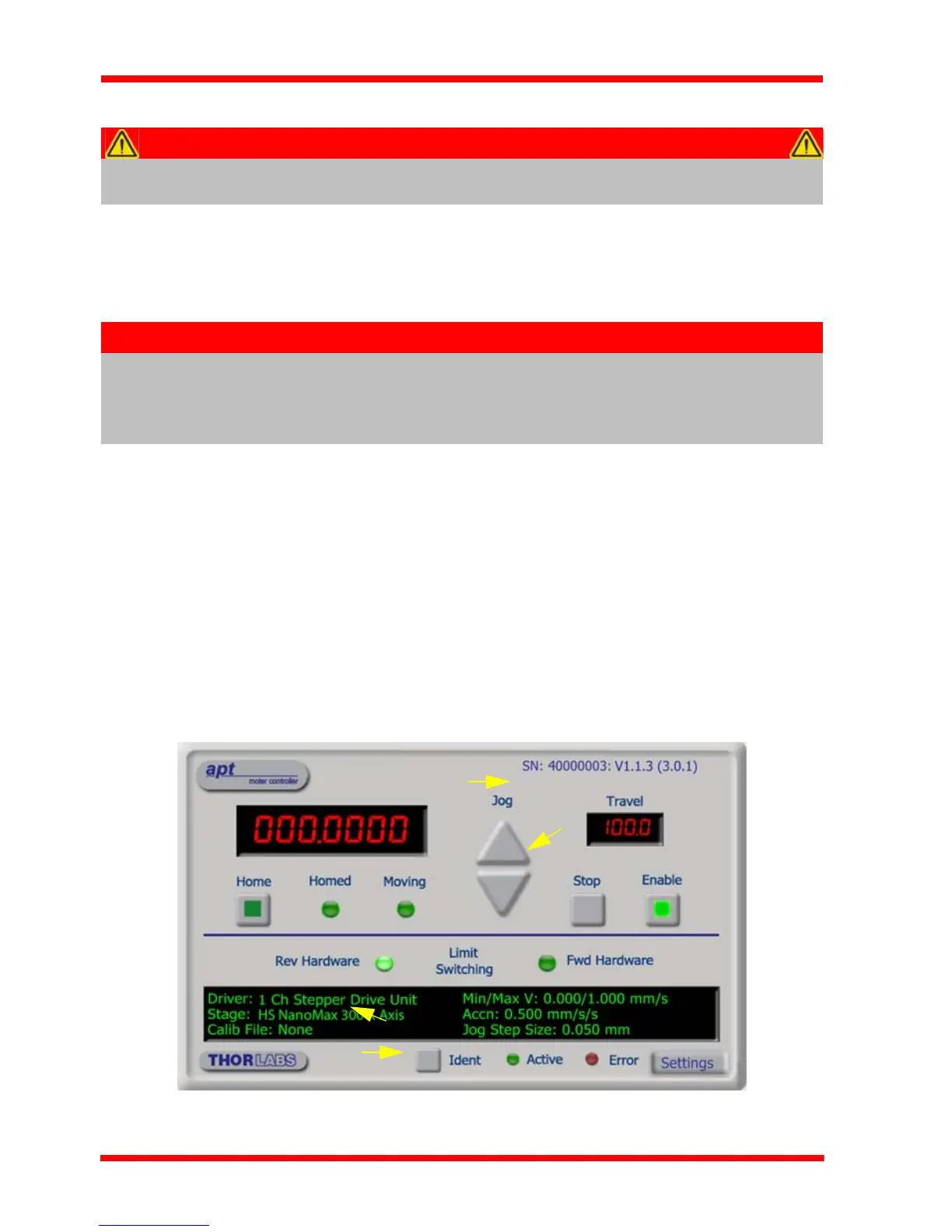

Fig. 3.4 Gui panel showing jog and ident buttons
Caution
The following items relate to the single channel Drive Cards fitted to the
controller, and not the parent 3-channel controller housing.
Note
To use the increased resolution and velocity funcitionality offered by
these controllers, the stage types prefixed by ‘HS’ (e.g. HS NanoMax 300
X Axis) must be selected. Selecting a stage/actuator type without the ‘HS’
prefix will result in reduced velocity and resolution.
