Chapter 4 Operation - Tutorial
4.1 Introduction
The following brief tutorial guides the user through a typica l series of moves an d
parameter adjustments performed using the PC based APT software. It assumes that
the unit is electrically connected to the stage, and that the APT Software is alre ady
installed - see Section 3.1. For illustration purposes, it also assumes that a
NanoMax300 is connected to the ‘Motor’ connector on the rear panel.
4.2 Using the APT User Utility
The APT User.exe application allows the user to interact with any number of APT
hardware control units connected to the PC USB Bus (or simulated via the APTConfig
utility). This program allows multiple graphical instrument panels to be displayed so
that multiple APT units can be controlled. All basic operating parameters can be set
through this program, and all basic operations (such as motor moves) can be initiated.
Hardware configurations and parameter settings can be save d to a file , which
simplifies system set up whenever APT User is run up.

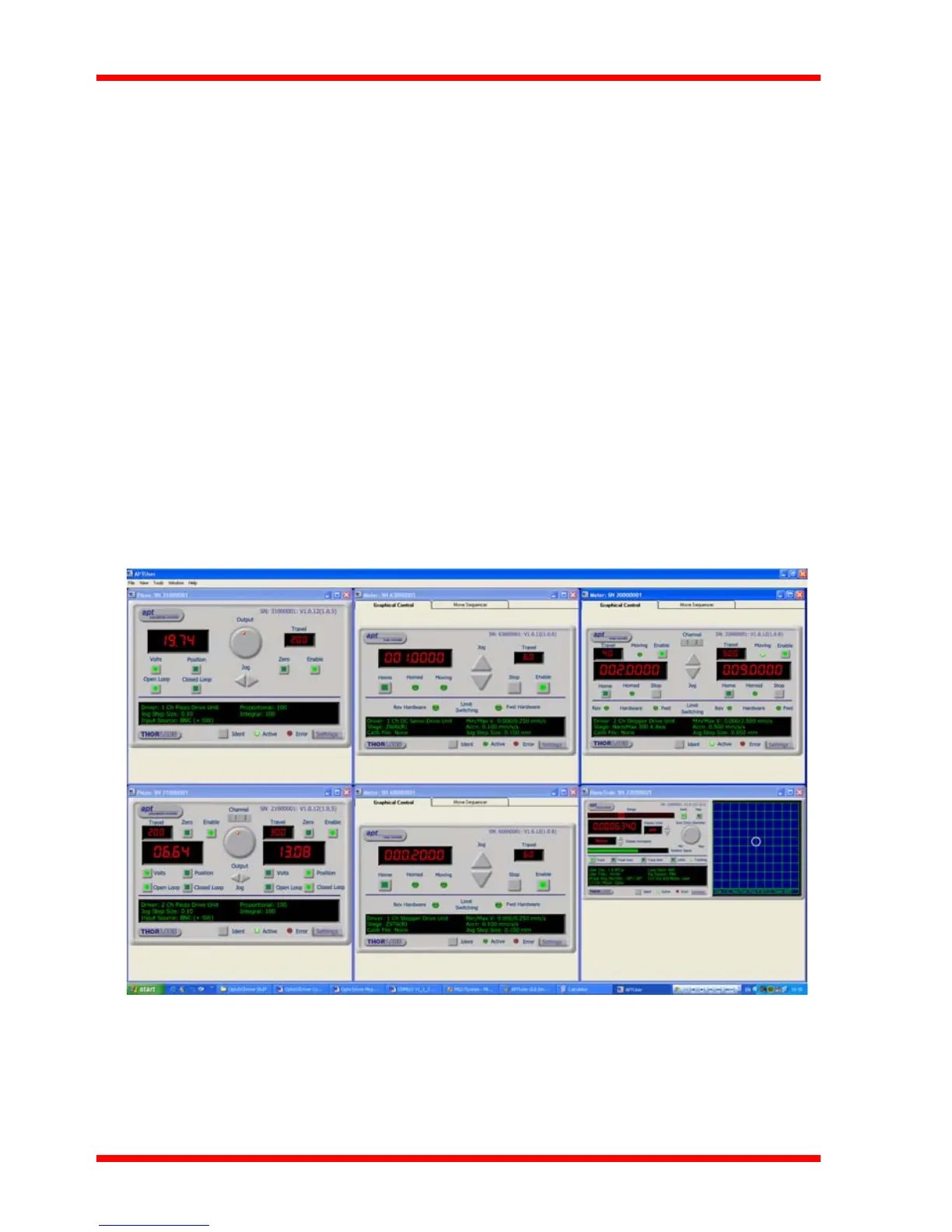

Fig. 4.1 Typical APT User Screen
