WARNER ELECTRIC EUROPE - Rue Champfleur, B.P. 11095, F - 49182 St Barthélemy d’Anjou Cedex SM344gb - rev 01/06 2/5
We, WARNER ELECTRIC EUROPE, 7, rue Champfleur, B.P. 20095, F-49182 St Barthélemy d’Anjou Cedex
declare that the brakes made in our factories from St Barthélemy d’Anjou,
and hereafter designated: ERS VAR10 SZ 2500/2500 Warner Electric Part Number 1 12 106607
ERS VAR10 SZ 2500/3000 Warner Electric Part Number 1 12 106806
Fully comply with directive 95/16/EC on Lifts and are intended for incorporation into an installation or for assembly with other equipment, with
the aim of constituting a machine subject to the application of directive 98/37/EC and the directive on Electromagnetic Compatibility 89/336
(modified).
Compliance with the basic requirements of the Low Voltage Directive 73/23 (modified) is guaranteed by our full compliance with the following
standards: NFC 79300 and VDE 0580/8.65.
Drawn up in St Barthélemy d’Anjou, July 2002
E. PRAT, General Managing Director
CONTENTS
1Technical specifications 2
2 Precautions and restrictions on use 3
2.1 Restrictions on use 3
2.2 Precautions 3
and safety measures
3Installation 3
3.1 Transport - storage 3
3.2 Handling 3
3.3 Installation 3
4Maintenance 4
4.1 Adjusting the airgap 4
4.2 Adjusting the microswitch 4
5Electrical connection 4
5.1 Important recommendations 4
6 Spare parts 5
7Tools 5
8Troubleshooting 6
1Technical specifications
Warner Electric Part Number ERS VAR10 SZ 2500/2500 ERS VAR10 SZ 2500/3000
1 12 106607 1 12 106806
Nominal torque Nm 2500 3000
Maximum speed min
-1
250
Nominal airgap mm 0,45 +0,05 / -0,1
Maximum airgap after wear mm 0,7
Inrush voltage VDC 180
Holding voltage VDC 90
Resistance Ω 136
Power (inrush) W 238
Power (holding) W 59,5
Cyclic duration factor ED 60 %
Weight kg 60
Table 1

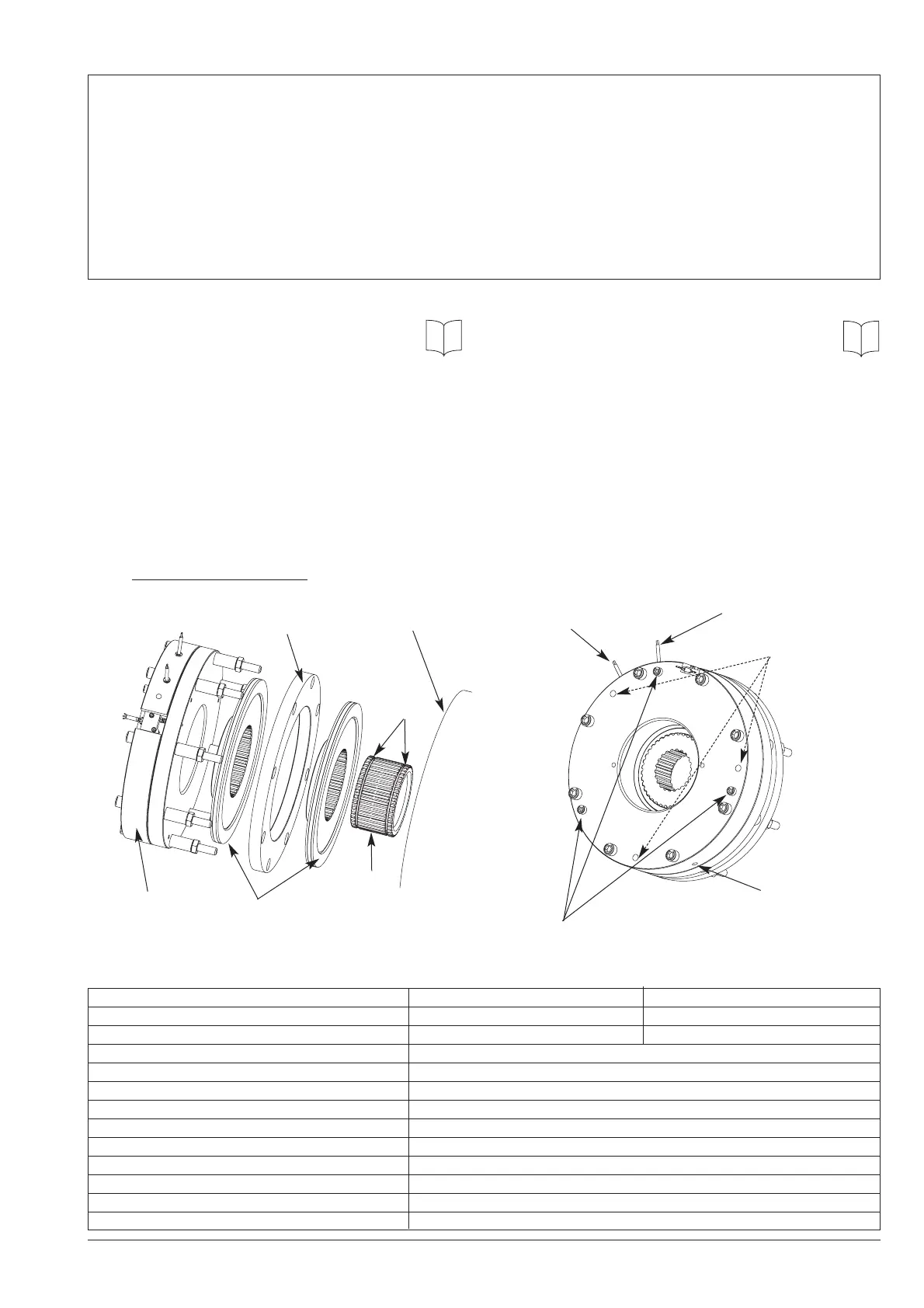

Fig. 2Fig. 1
Customer’s fixing
flange
O-rings
Hub
Friction discs
Intermediate disc
Magnet
Coil cable
Thermistor cable
Threads M12
for eye hook
Threads M10
for eye hook
Transport
screws
