WARNER ELECTRIC EUROPE - Rue Champfleur, B.P. 20095, F - 49182 St Barthélemy d’Anjou Cedex SM342gb - rev 01/06 2/5
We, WARNER ELECTRIC EUROPE, 7, rue Champfleur, B.P. 11095, F-49182 St Barthélemy d’Anjou Cedex
declare that the brakes made in our factories from St Barthélemy d’Anjou,
and hereafter designated: ERS VAR08 SZ1700/1700 Warner Electric Part Number 1 12 106606
Fully comply with directive 95/16/EC on Lifts and are intended for incorporation into an installation or for assembly with other equipment, with
the aim of constituting a machine subject to the application of directive 98/37/EC and the directive on Electromagnetic Compatibility 89/336
(modified).
Compliance with the basic requirements of the Low Voltage Directive 73/23 (modified) is guaranteed by our full compliance with the following
standards: NFC 79300 and VDE 0580/8.65.
Drawn up in St Barthélemy d’Anjou, July 2002
E. PRAT, General Managing Director
CONTENTS
1Technical specifications 2
2 Precautions and restrictions on use 3
2.1 Restrictions on use 3
2.2 Precautions and safety measures 3
3Installation 3
3.1 Transport - storage 3
3.2 Handling 3
3.3 Installation 3
4Maintenance 4
4.1 Adjusting the airgap 4
4.2 Adjusting the microswitch 4
5Electrical connection 4
5.1 Important recommendations 4
6 Spare parts 5
7Tools 5
8Troubleshooting 5
1 Spécifications techniques

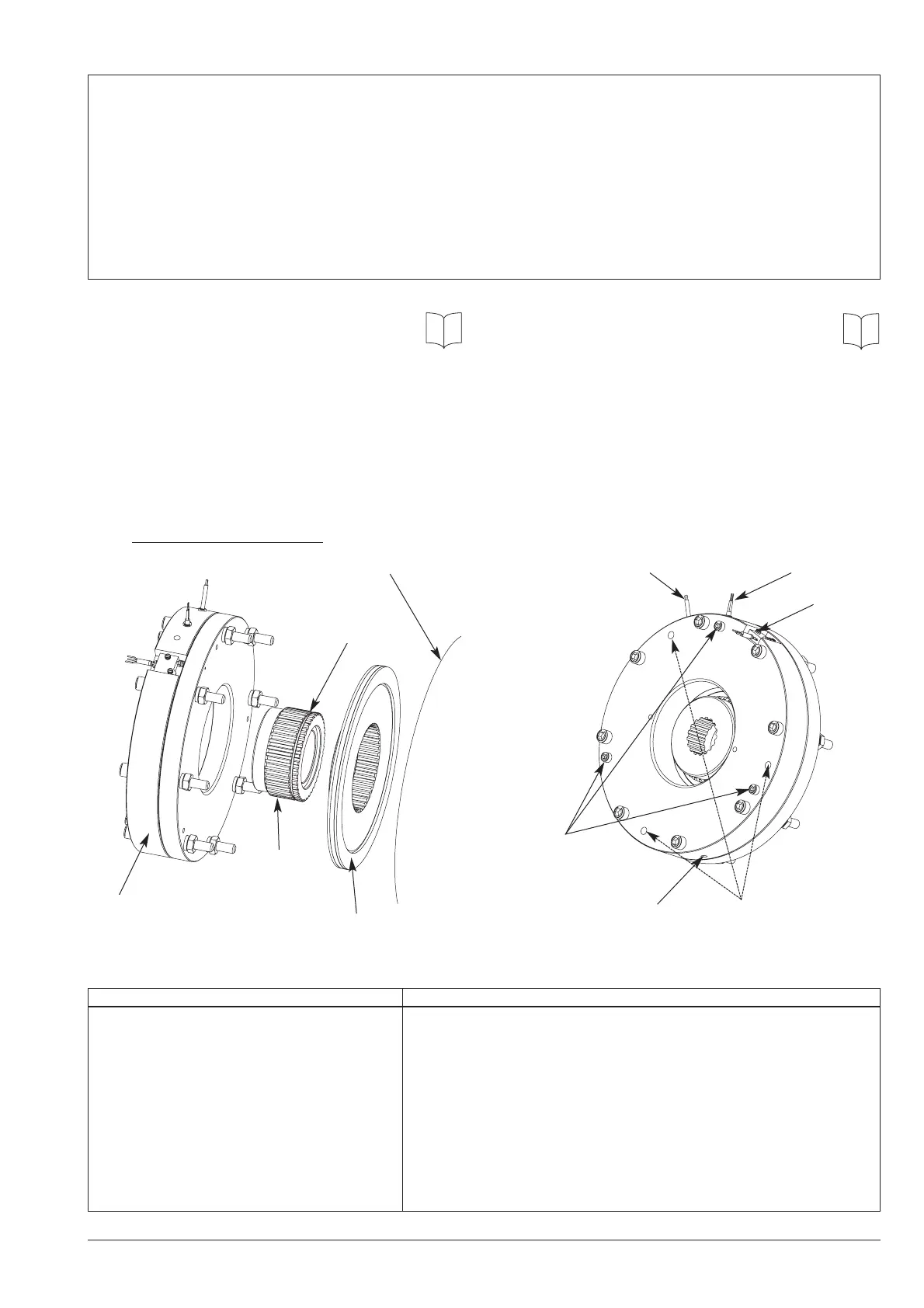

Fig. 2Fig. 1
Magnet
Warner Electric Part Number ERS VAR08 SZ 1700/1700 WE Part Number 1 12 106606
Nominal torque Nm 1700
Maximum speed min-1 250
Nominal airgap mm 0,35 + 0,05 / -0,1
Maximum airgap after wear mm 0,7
Inrush voltage VDC 180
Holding voltage VDC 90
Resistance Ω 136
Power (inrush) W 238
Power (holding) W 59,5
Cyclic duration factor % 60 %
Weight kg 45
Table 1
Friction disc
Hub
O-ring
Customer’s fixing flange Coil cable Thermistor cable
Transport
screw
Thread M10
Threads M12
Microswitch
