WARNER ELECTRIC EUROPE - Rue Champfleur, B.P. 20095, F - 49182 St Barthélemy d’Anjou Cedex SM348gb - rev 01/06 2/5
We, WARNER ELECTRIC EUROPE, 7, rue Champfleur, B.P. 11095, F-49182 St Barthélemy d’Anjou Cedex
declare that the brakes made in our factories from St Barthélemy d’Anjou,
and hereafter designated: ERS VAR10 SZ 5000/5000 Warner Electric part number 1 12 106621
Fully comply with directive 95 / 16 / EC on Lifts and are intended for incorporation into an installation or for assembly with other equipment, with
the aim of constituting a machine subject to the application of directive 89/392 (modified) and the directive on Electromagnetic Compatibility 89/336
(modified).Compliance with the basic requirements of the Low Voltage Directive 73/23 is guaranteed by our full compliance with the following
standards: NFC 79300 and VDE 0580/8.65.
Drawn up in St Barthélemy d’Anjou, July 2002
E. PRAT, General Managing Director
CONTENTS
1Technical specifications 2
2 Precautions and restrictions on use 3
2.1 Restrictions on use 3
2.2 Precautions 3
and safety measures
3Installation 3
3.1 Transport - storage 3
3.2 Handling 3
3.3 Installation 3
4Maintenance 4
4.1 Adjusting the airgap 4
4.2 Adjusting the microswitch 4
5Electrical connection 4
5.1 Important recommendations 4
6 Spare parts 5
7Tools 5
8Troubleshooting 5
1Technical specifications
Table 1 ERS VAR10 SZ 5000/5000
Warner Electric part number 1 12 106621
Nominal holding torque Nm 5000
Maximum speed min-1 120
Nominal airgap mm 0,5 ± 0,1
Maximum airgap after wear mm 0,8
OEX voltage VDC 180
Holding voltage VDC 90
Resistance Ω 101
Power (OEX) W 324
Power (holding) W 81
Cyclic duration factor % 50 %
Weight kg 124

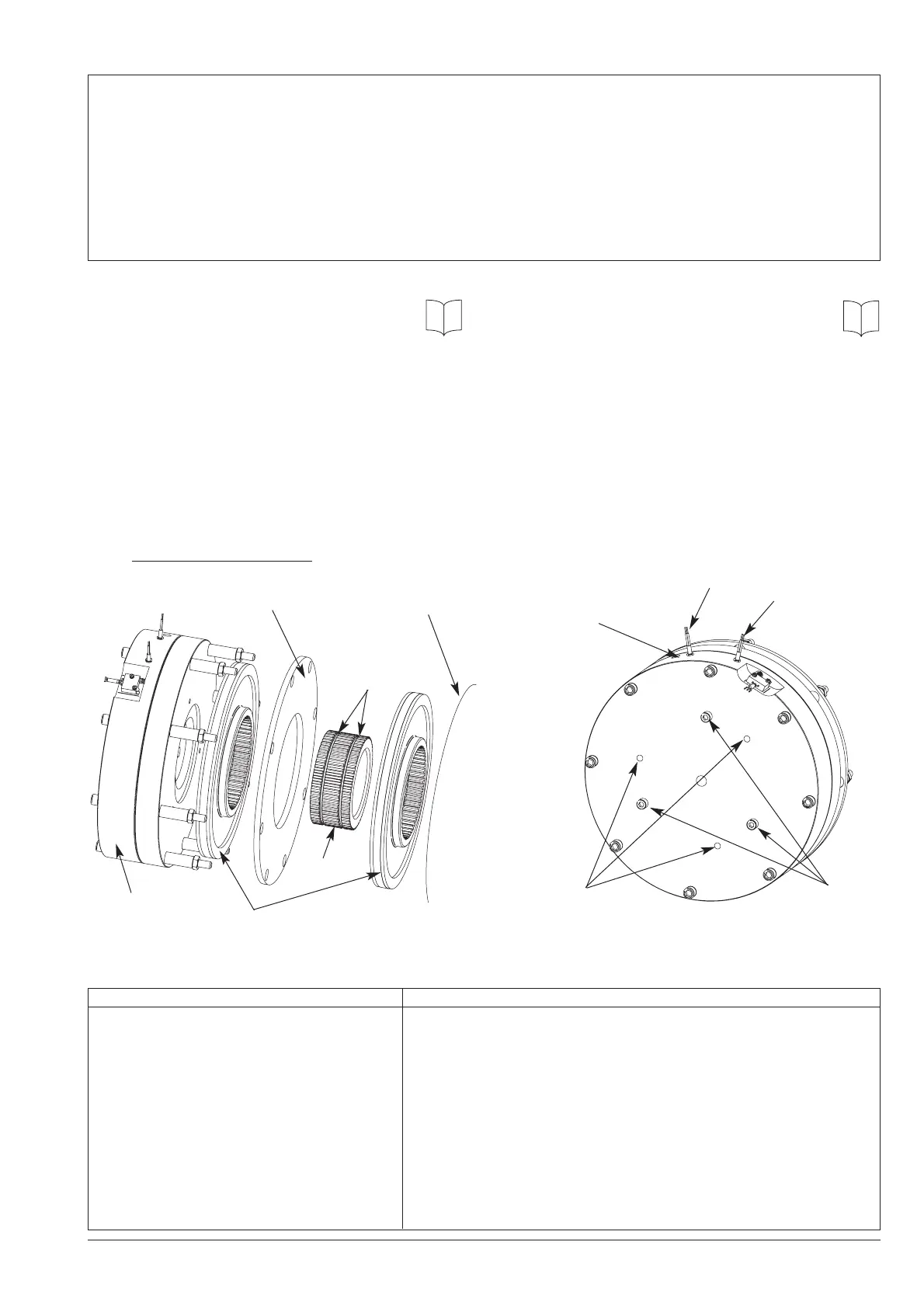

Fig. 1 Fig. 2
Magnet
Friction discs, heel on
customer’s flange side
Customer’s
friction flange
O-rings
Intermediate disc
Coil cable
Thermistor cable
Thread M16
for eye hook
2 x 180°
Thread M12
for eye hook
Transport
screw
Hub
