Illustration of TW45C

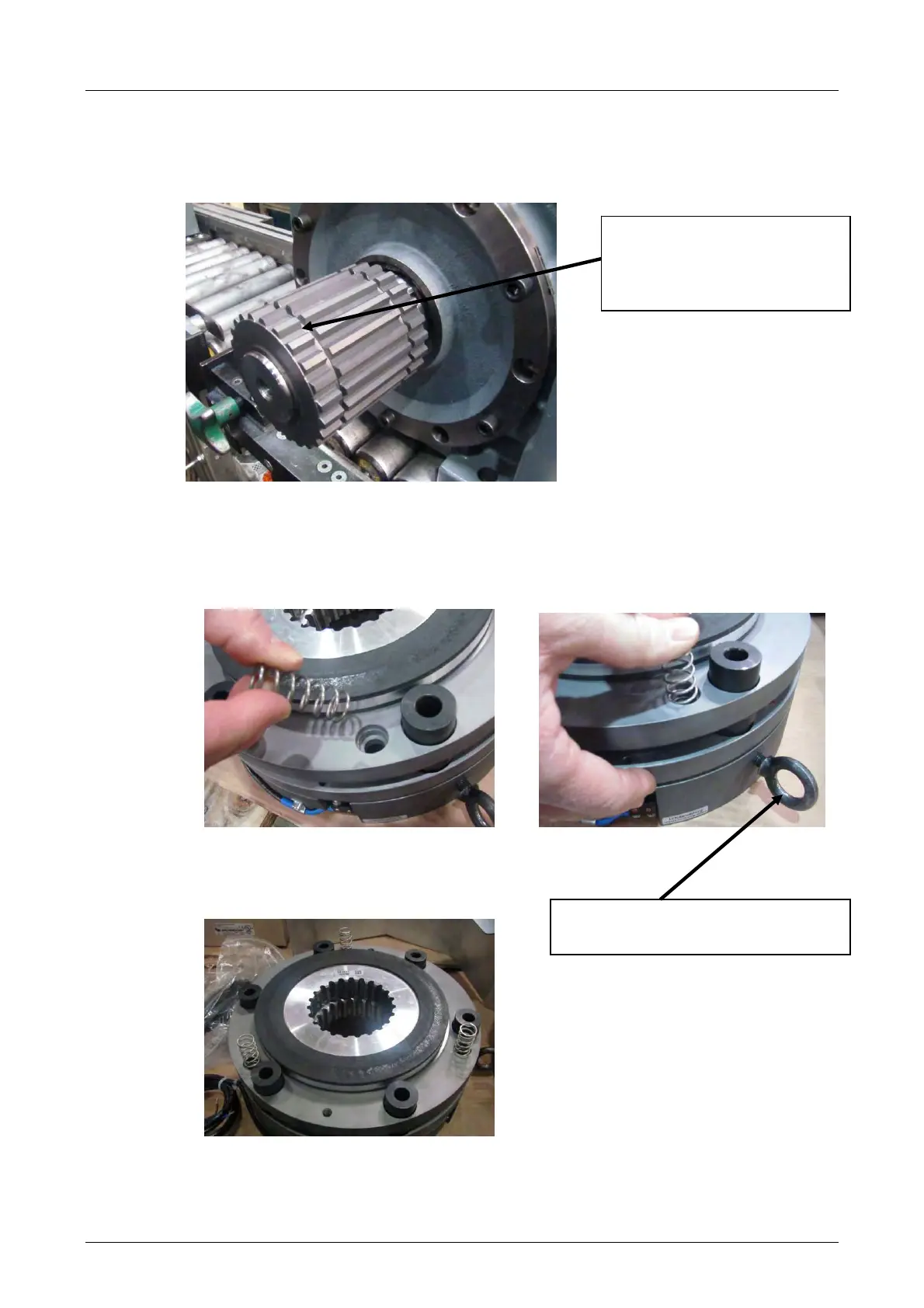

Inserting springs on the NBS emergency brake system
Fig. 7.1.1
Fig. 7.1
1
Worm drive shaft end with
toothing for mounting the
NBS
Fig. 7.1.2
Eye bolt for lifting the NBS
emergency brake system
