SETTING AND COMMISSIONING
69
NC020 - Manual - 05 - 2022

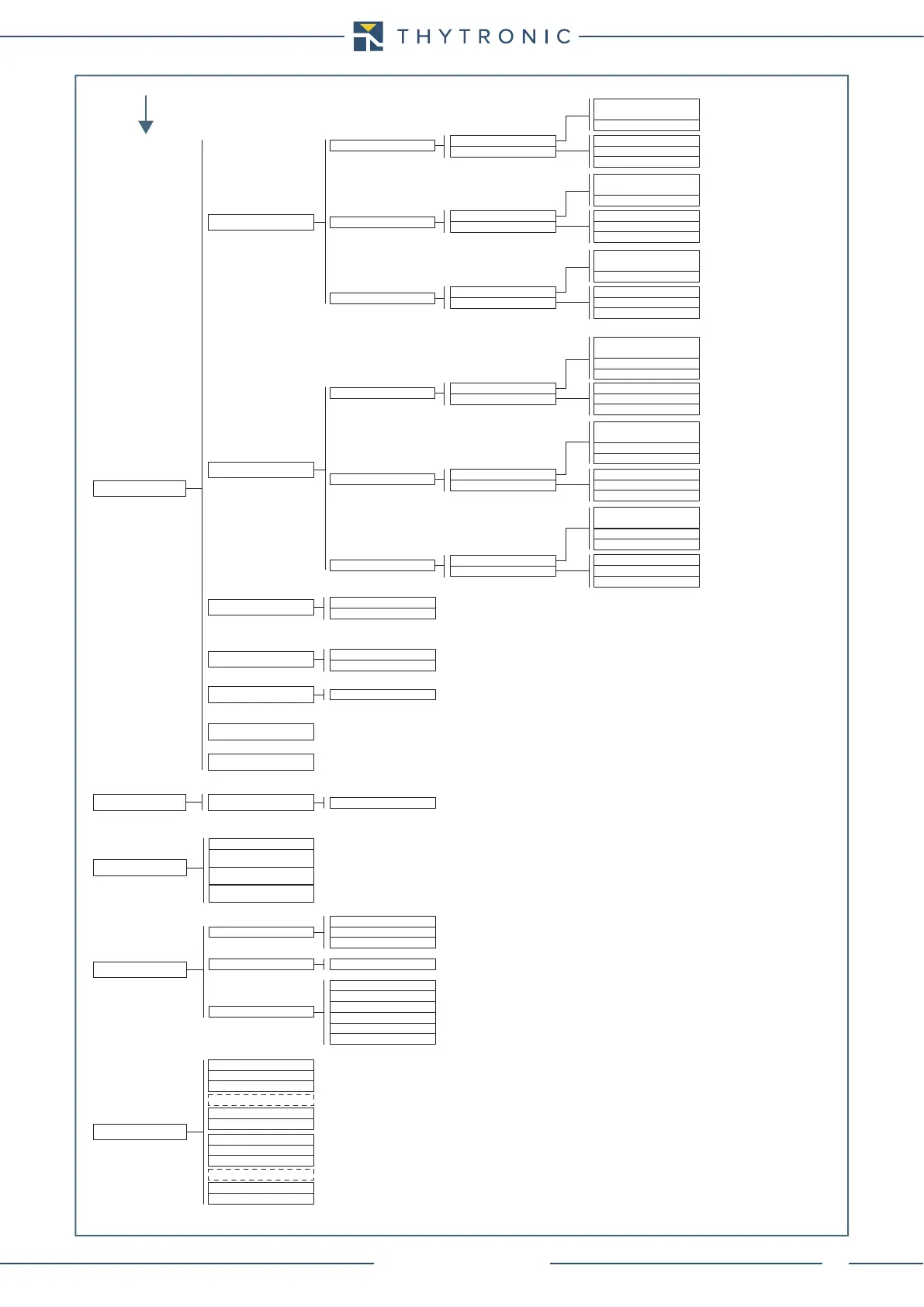

SET
NC020_set1.ai
Oscillography
FROM SET MENU’
46N
IN>AL Element
IN>AL Setpont
IN>AL Definite
tINCLP>AL 0.50 s
INCLP>AL
On-Changing
IN>ALdef 0.100 In
INCLP>ALdef 2.00In
tIN>ALdef 0.20 s
IN> Setpont
IN> Definite
tINCLP> 0.50 s
INCLP>
On-Changing
IN>def 0.100 In
INCLP>def 2.00In
tIN>def 0.20 s
IN> Element
IN>> Setpont
IN>> Definite
tINCLP>> 0.50 s
INCLP>>
On-Changing
IN>>def 0.100 In
INCLP>>def 2.00In
tIN>>def 0.20 s
IN>> Element
59H
U> Element
U> Setpont
U> Definite
tUCLP> 0.50 s
tU>RES 0 s
tU>>RES 0 s
UCLP>
On-Changing
U>def 0.100 Un
UCLP>def 2.00 Un
tU>def 0.20 s
U>> Element
U>> Setpont
U>> Definite
tUCLP>> 0.50 s
UCLP>>
On-Changing
U>>def 0.100 Un
UCLP>>def 2.00 Un
tU>>def 0.20 s
tU>>>RES 0 s
U>>> Element
U>>> Setpont
U>>> Definite
tUCLP>>> 0.50 s
UCLP>>>
On-Changing
U>>>def 0.100 Un
UCLP>>>def 2.00 Un
tU>>>def 0.20 s
TD Discharge
tD 6 s
TD-P37 enable ON
Reset counters
Reset alarm
Reset discharge
Breaker failure
BF Enable Trip I>
tBF 0.50 s
Circuit breaker
CB check 52b
Info
Record stored 2
Clear
Store
Communication
Baudrate RS485
9600
Enable TX delay
2 ms
Start TX delay
1 ms
Address 1
Commands
Reset
Set year 2012
Set month 3
Set day 8
Set hour 18 h
Set minute 12 m
Set second 38 s
Set clock
Set compensation
Compensation
Test I> led
Test I>> led
Test I>>> led
Test IE> led
Test U>>> led
Test I<< led
Test I> full
Test I>> full
Test I>>> full
Test IE> full
Test U>>> full
Test I<< full
Test
