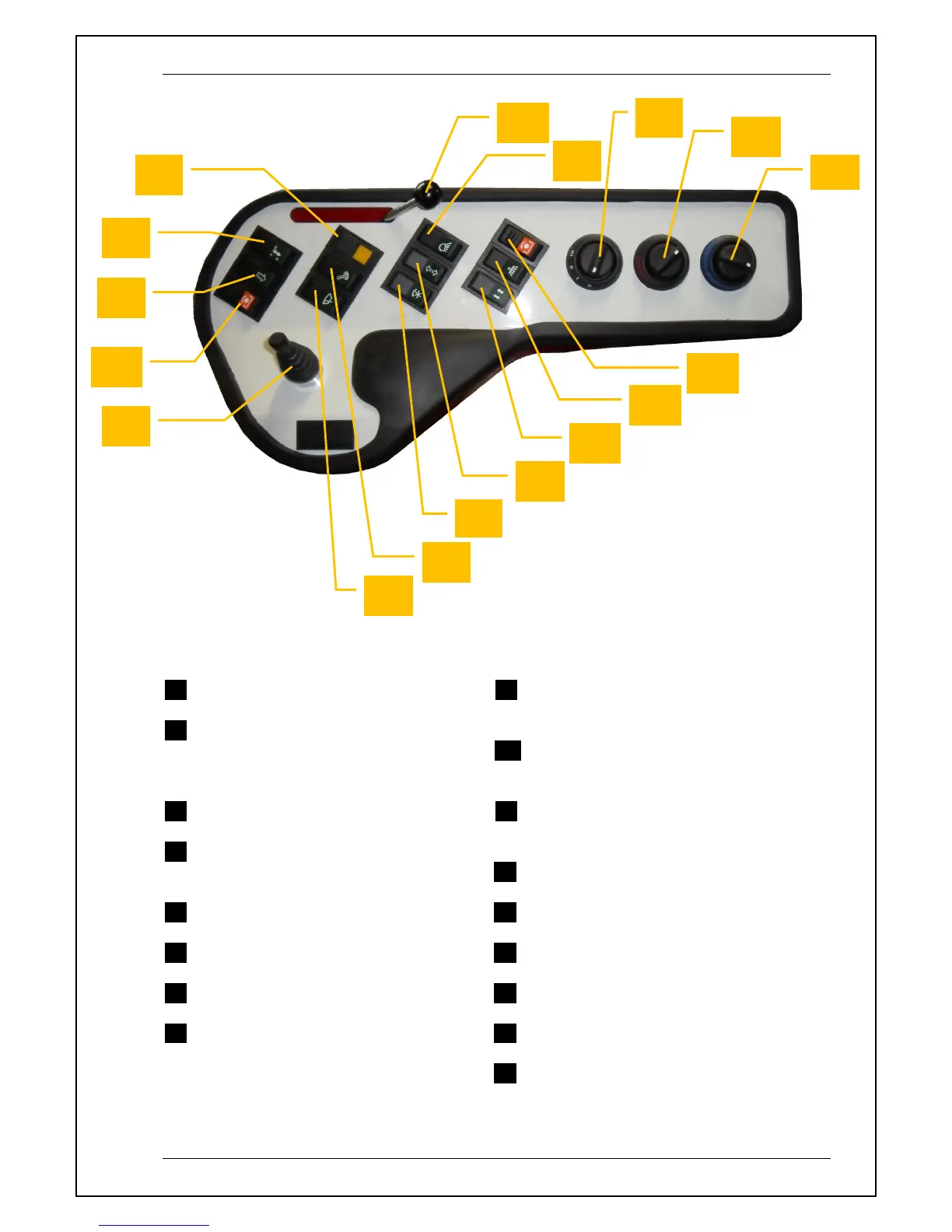

9.2 Armrest
13. Float position setting indicator (page 23) 21. Heat regulation (page 24)
14. Button to change
the direction of rotation (page 24) 22. Air conditioning (additional equipment)
(page 24)
15. Button for lifting the front (page 24) 23. Interval wiper switch (page 24)
16. Terminal of the hydraulic power take
off (PTO) - front (page 24) 24. Switch plug, 2 poles (page 24)
17. Joystick – control lever (page 24) 25. Switch plug, 3 poles (page 24)
18. Throttle control handle (page 24) 26. Double-action outlet (page 25)
19. Lighting switch (page 24) 27. 12V reversing switch (page 25)
20. Fan switch 28. 12V switch (page 25)
29. Terminal of the hydraulic power
take off (PTO) - rear (page 24)
