19 HYDRAULIC OIL AND FILTER MAINTAINENCE
19.1 Oil level inspection
- Park the machine on a straight surface, raise the lifting arms and stop the motor.
- The oil level must be in the middle of the sight glass. If the level is too low,
add new oil.

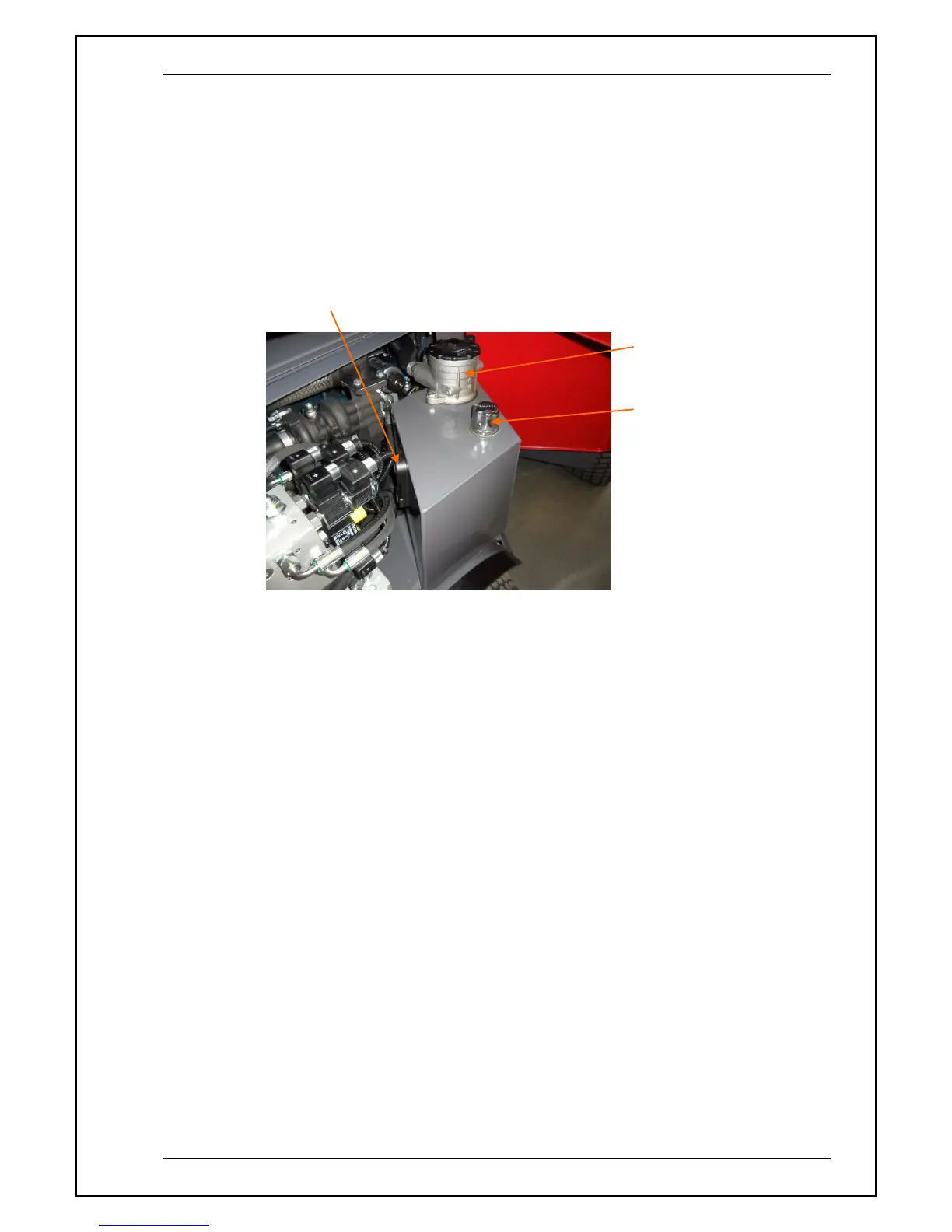

Sight glass
Hydraulic oil filter
Fill cap
The hydraulic tank is filled with Shell Tellus TX 46 oil in the factory. Use only
this oil for refilling. If you want to use a different brand, contact Shell
concerning information about the miscibility of the oil.
19.2 Hydraulic oil filter
You will gain access to the hydraulic filter by opening the right side cover. The
hydraulic oil filter is located under the black lid, which can be loosened with a
monkey wrench. Replace the filter in accordance with the service inspection
plan.
IMPORTANT: Only use the original TIMAN filter in order to prevent serious
damage to the hydraulic system.
