Assembly instructions

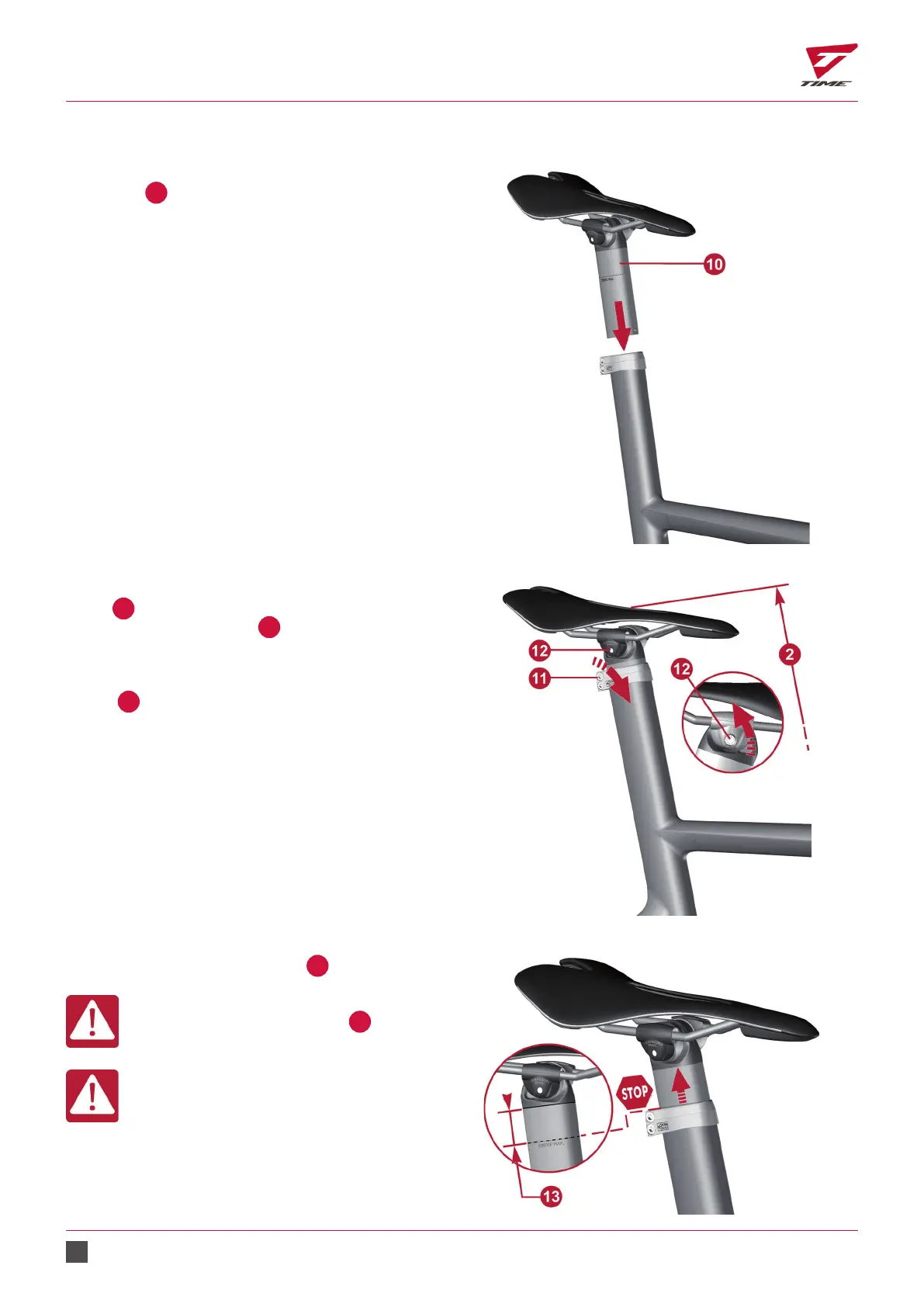

- Remove the seat / seat post assembly from tube of
the frame
10
.
Scylon 13.jpg
- Set the correct seat height (in our example: 758
mm)
2
.
- Lightly tighten the screws
11
of the clamp.
- Finalise the seat adjustment on the seat post (trim
and recoil).
- Final tightening of the seat to a maximum torque of
8 Nm
12
.
- Perform the nal tightening of the seat post to a
maximum torque of 4 Nm taking care to increase
the torque alternately on each screw.
Scylon 14.jpg
- Seat extension limit mark 30 mm
13
.
The seat post must not extended beyond
the maximum extension limit
13
: 30 mm.
In the event of a cutting error or resale to
someone else of a di󰀨erent height, TIME
sells a "Retro Fit" seat post enabling the
seat to be extended up to 100 mm.
