Assembly instructions

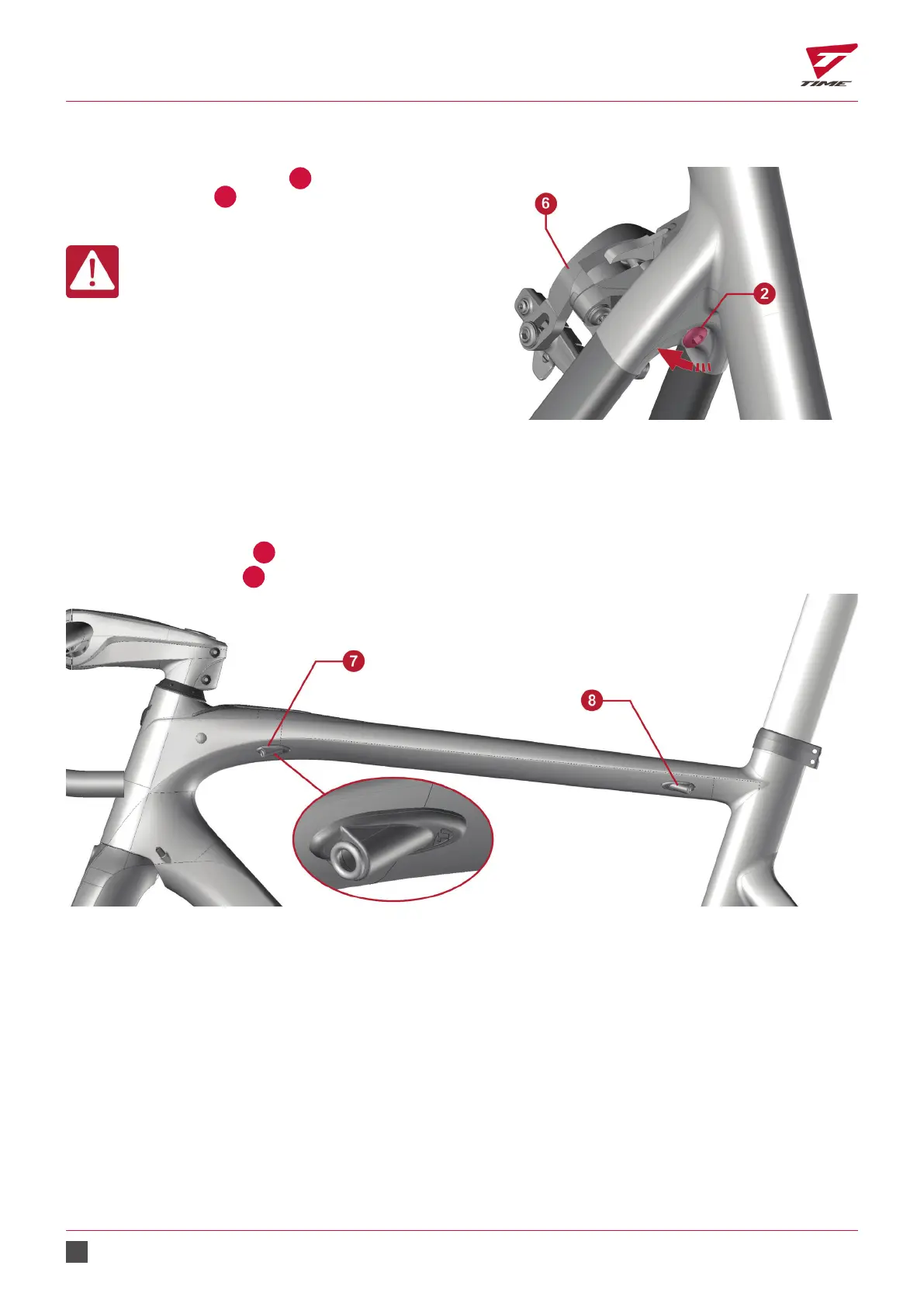

- Position the rear brake calliper
6
.
- Tighten the rear nut
2
to the torque of 6 Nm using
a torque wrench.
The brake nuts are specic for each type
of frame and should not be used on
another product and vice versa.
Exceeding the recommended torque
does not improve the performance, but
on the other hand risks producing a
harmful stress that can damage the
carbon part or reduce the braking
e󰀨ectiveness.
Scylon 69.jpg
Assembly of the rear brake sheath:
The TIME Scylon frame has a passage for the inner rear brake sheath, and a guide tube allows the sheath to be
guided into the upper tube of the frame.
- Entry of the brake sheath
7
.
- Exit of the brake sheath
8
.
Scylon 70.jpg
