TIPTEL 1020 - Wall bracket

Getting started
10
Wall bracket

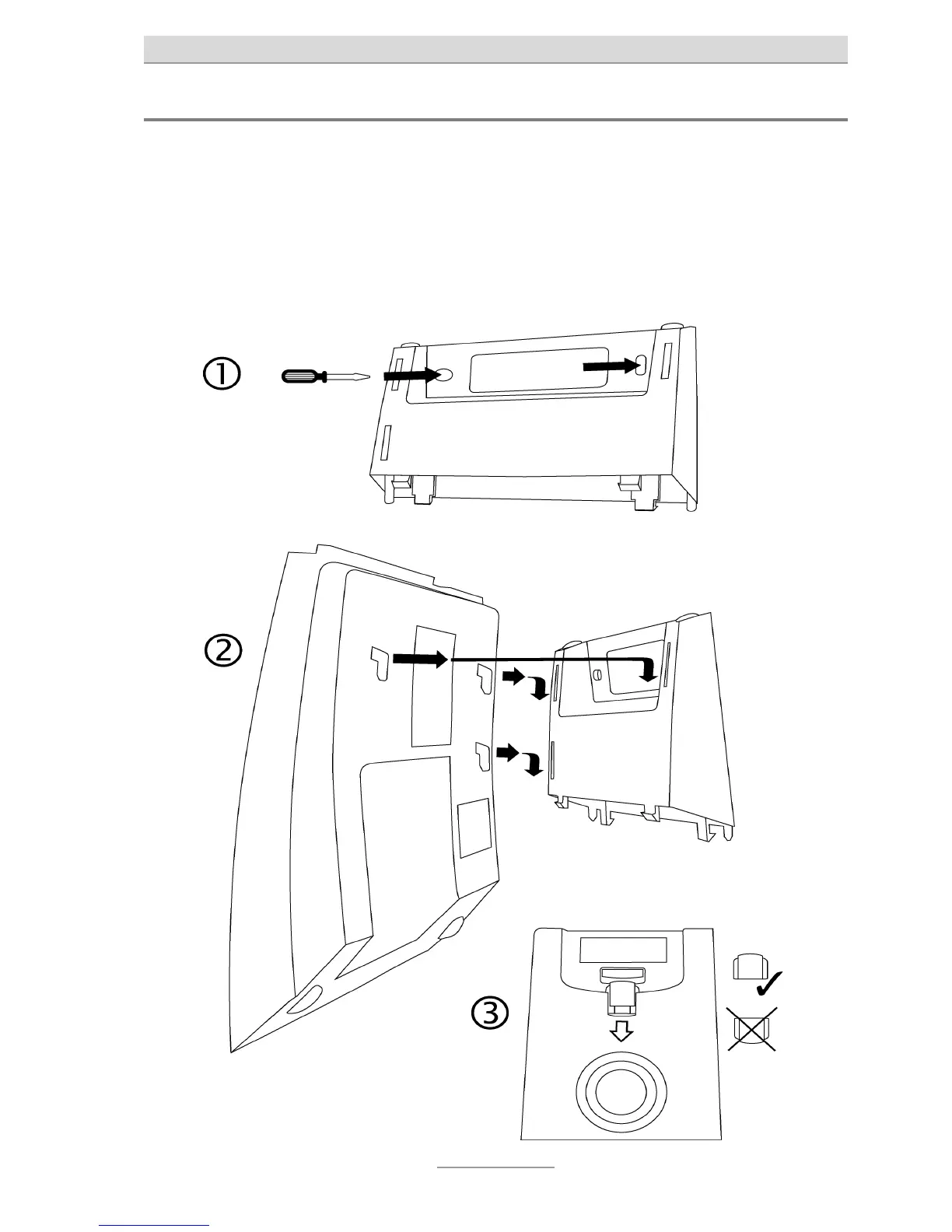

For wall installation, secure the stand to the wall using the two screws (as shown in
Fig. 1).
Then attach the telephone unit to the stand (Fig. 2).
Pull out the plastic piece in the receiver holder, and put it back in rotated by 180
degrees (Fig. 3).
