1200-1600 Series Rotary Cutters 26 Titan Implement, LLC
August 2016 (423) 334-0012

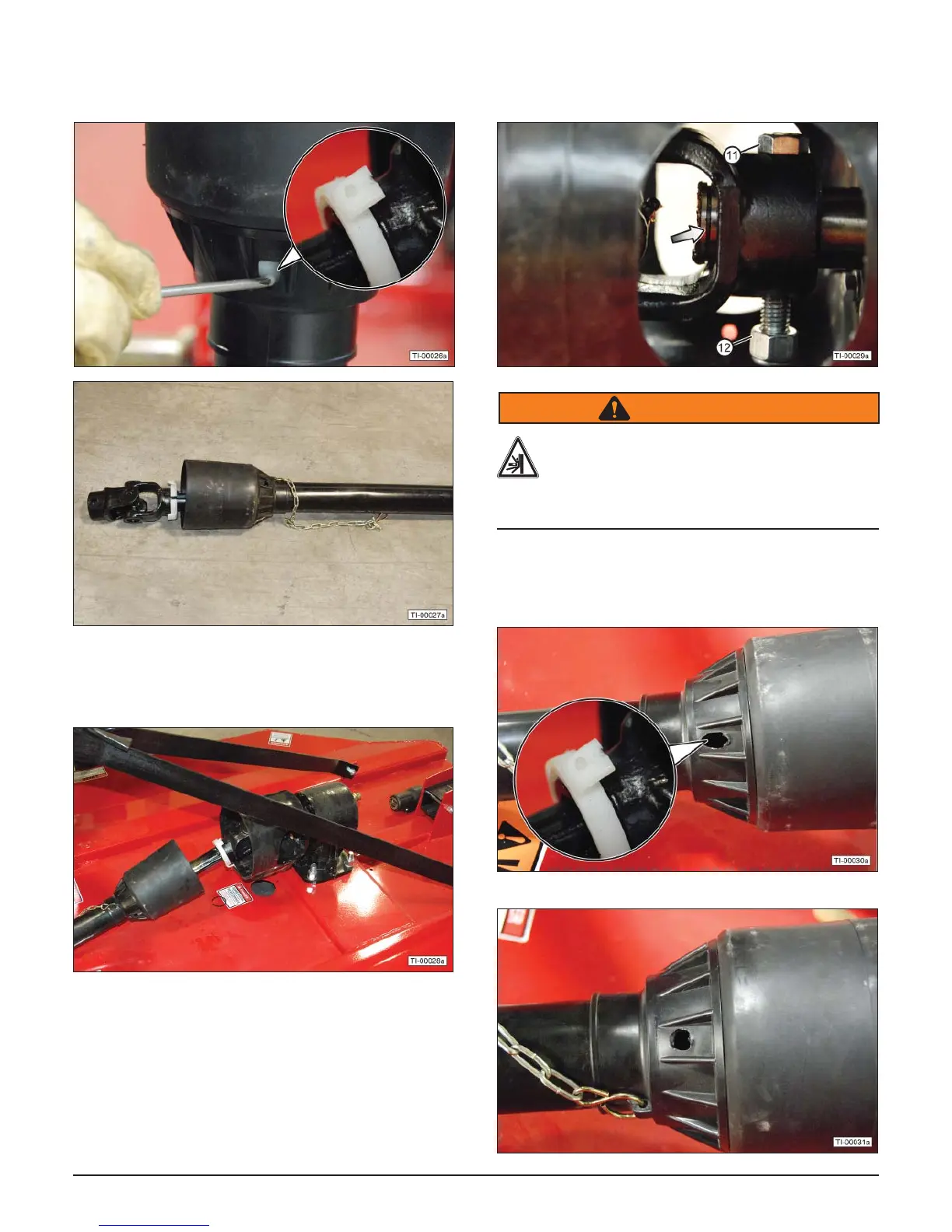

14. Depress the tab on the implement end of the
driveline and slide the outer shield down and away
from the U-joint.
15. Slide the driveline onto the gearbox input shaft.
Align the shear bolt holes in the shaft and the
U-joint.
16. Install 1/2-13 x 3” Grade 2 shear bolt (11) and lock
nut (12). Install the snap ring in the groove on the
input shaft (shown by arrow).
WARNING
Crush Hazard
If the snap ring is not present and the bolt
shears, the driveline may separate from the
gearbox, causing serious injury or death. Do
not omit the snap ring.
17. Slide the outer driveline shield back into position.
Make sure the tab with the button aligns with the
slotted hole in the shield.
Slotted Hole
Round Hole
To Next Page
