Titan Implement, LLC 27 1200-1600 Series Rotary Cutters
(423) 334-0012 August 2016
Note: The following steps are for rotary cutters
equipped with slip clutch drivelines. For rotary
cutters equipped with shear bolt drivelines,
continue with Step 19.

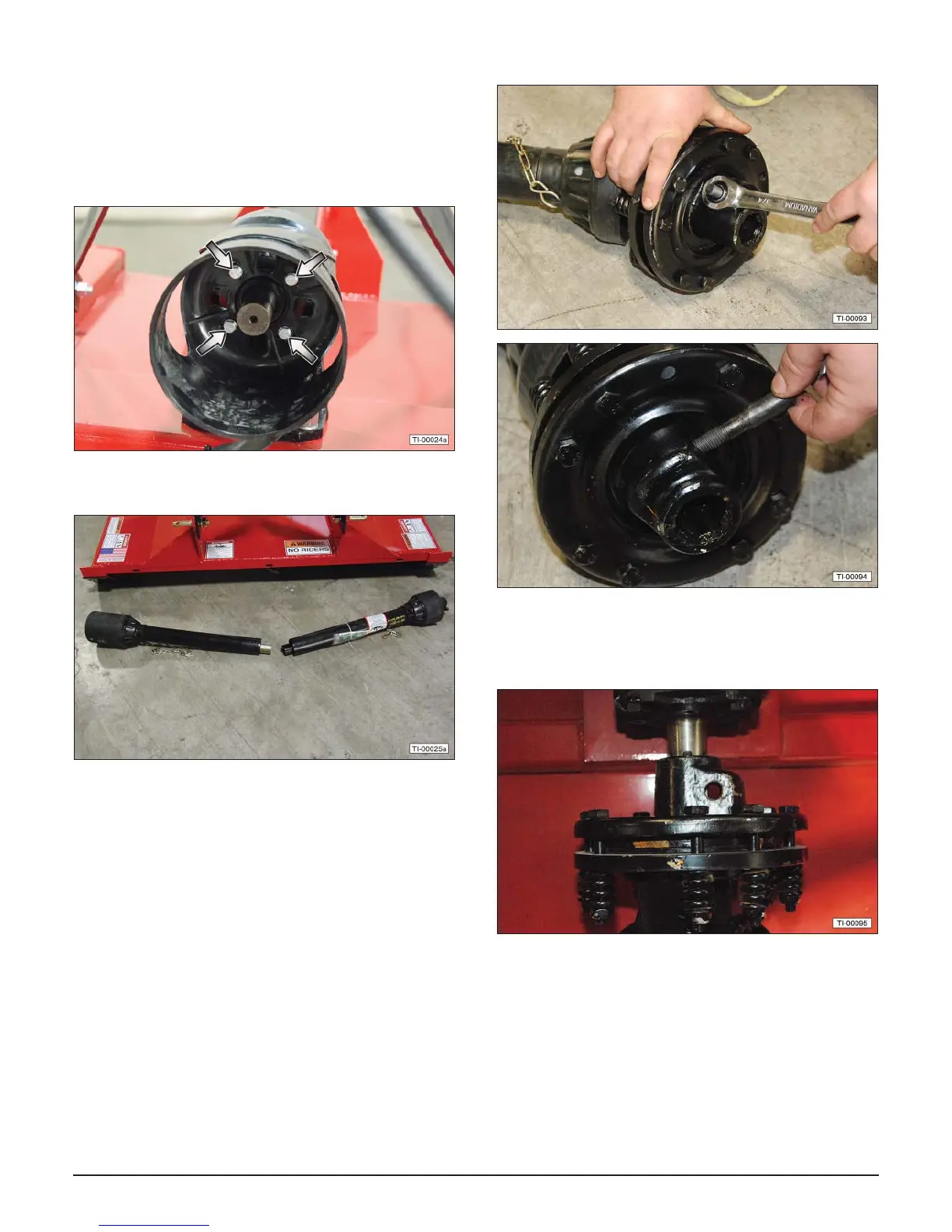

18. Position the gearbox shield on the front of the
gearbox and re-install the bolts.
19. Separate the two halves of the driveline.
20. Remove the retaining bolt from the slip clutch.
21. Line up the spline grooves and slide the slip clutch
onto the gearbox input shaft until the retaining bolt
hole aligns with the groove in the shaft.
To Next Page
