TMQ AP4 - Selection Switch- Standard or Heavy Duty Feedback

TMQ AP4 Autopilot (AP4S10) 29 of 62 Version 4.96 9/10/2017
 Check the rectangular correlation between the feedback arm, the tiller
and the linkage with rudder amidships
 Check direction of feedback arm movement (port and starboard)
corresponds with the markings on the feedback body
 Check the feedback arm direction matches the tiller movement
direction for port and starboard
Note: Correct any problems before using the autopilot
Selection Switch- Standard or Heavy Duty Feedback
The AP4 is normally dispatched from the factory as ordered. However, when
installation of the feedback is completed on the boat the RFUS / RFUH
selection switch in the AP4 control unit should be checked for correct selection.

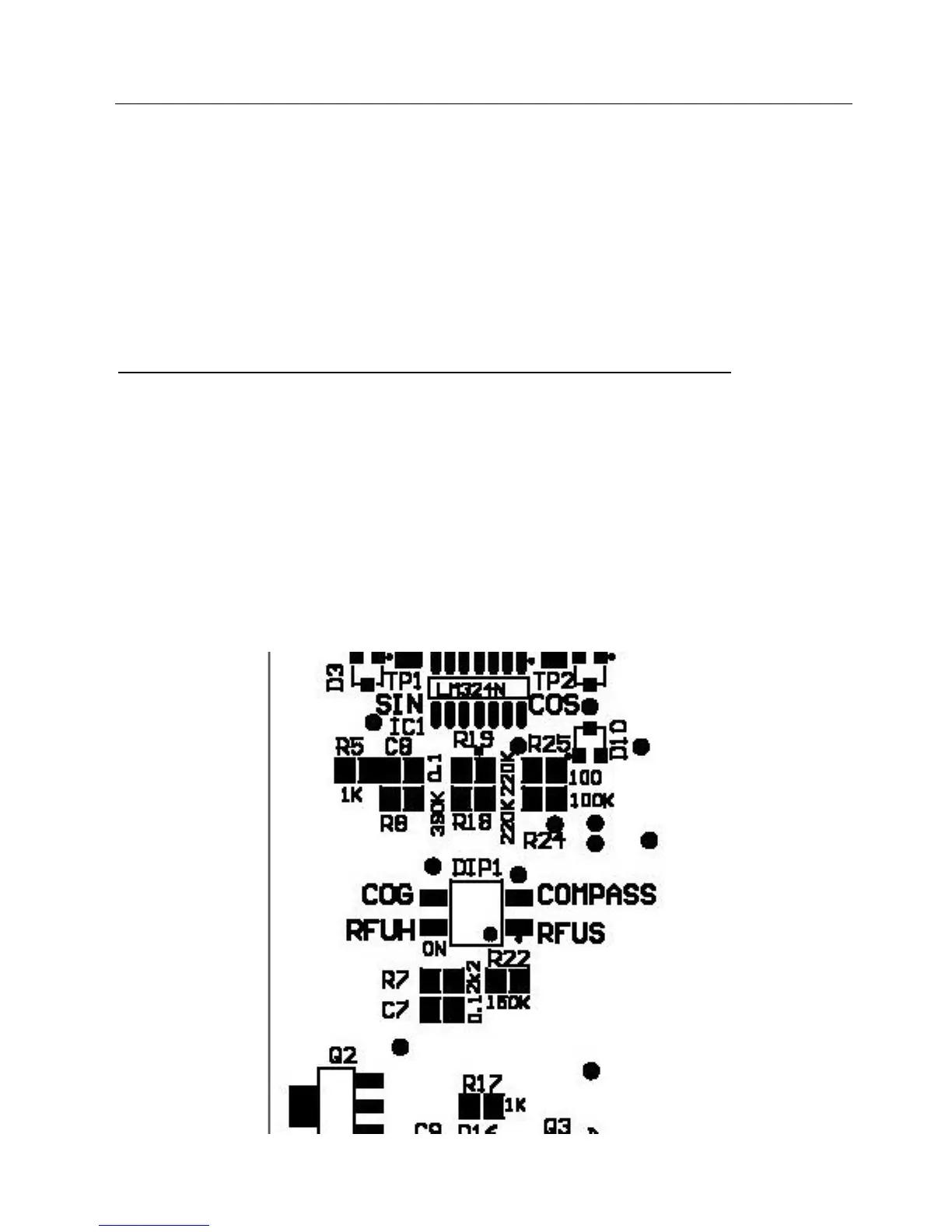

Selecting between RFUS and RFUH:
 Switch the switch 1 of DIP1 to RFUS
or
 Switch the switch 1 of DIP1 for RFUH
