TMT XPROG-m - MC68 HC05 V12 in-circuit programming

XPROG-m © 2005
TMT
Users manual P/C: 3-001-0001
15
MC68HC05V12 in-circuit programming

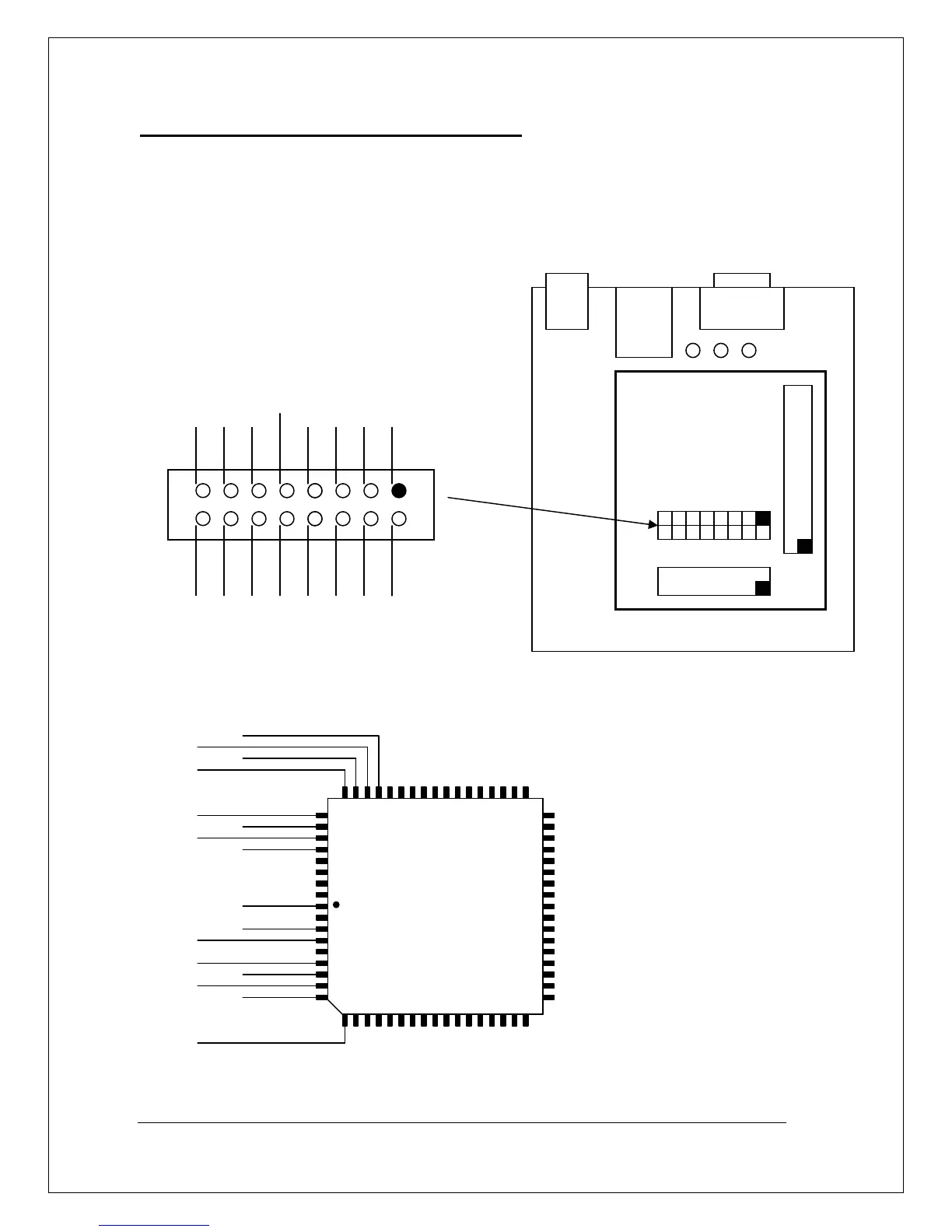

The MC68HC05V12 supported 16 wires in-circuit programming. The
suitable in-circuit programming interface must be used (see Figure ).
In-circuit programming
connector
TMS374 ICP adapter
P/C: 1-002-0008
GND VppR CLK CP1 AD1 AD3 AD5 AD7
Vcc RESET SYNC CP0 AD0 AD2 AD4 AD6
SYNC
AD4
AD3
AD0
AD2
AD1
CLK
AD7
Vcc
AD6
GND
RESET
AD5
PLCC68
CP0
Vppr
CP1
