TMT XPROG-m - 2.2.3. MC68 HC08 AZ32 A; 2.2.4. MC68 HC08 AS60;AS60 A(PLCC52)

XPROG-m © 2005
TMT
Users manual P/C: 3-001-0001
17

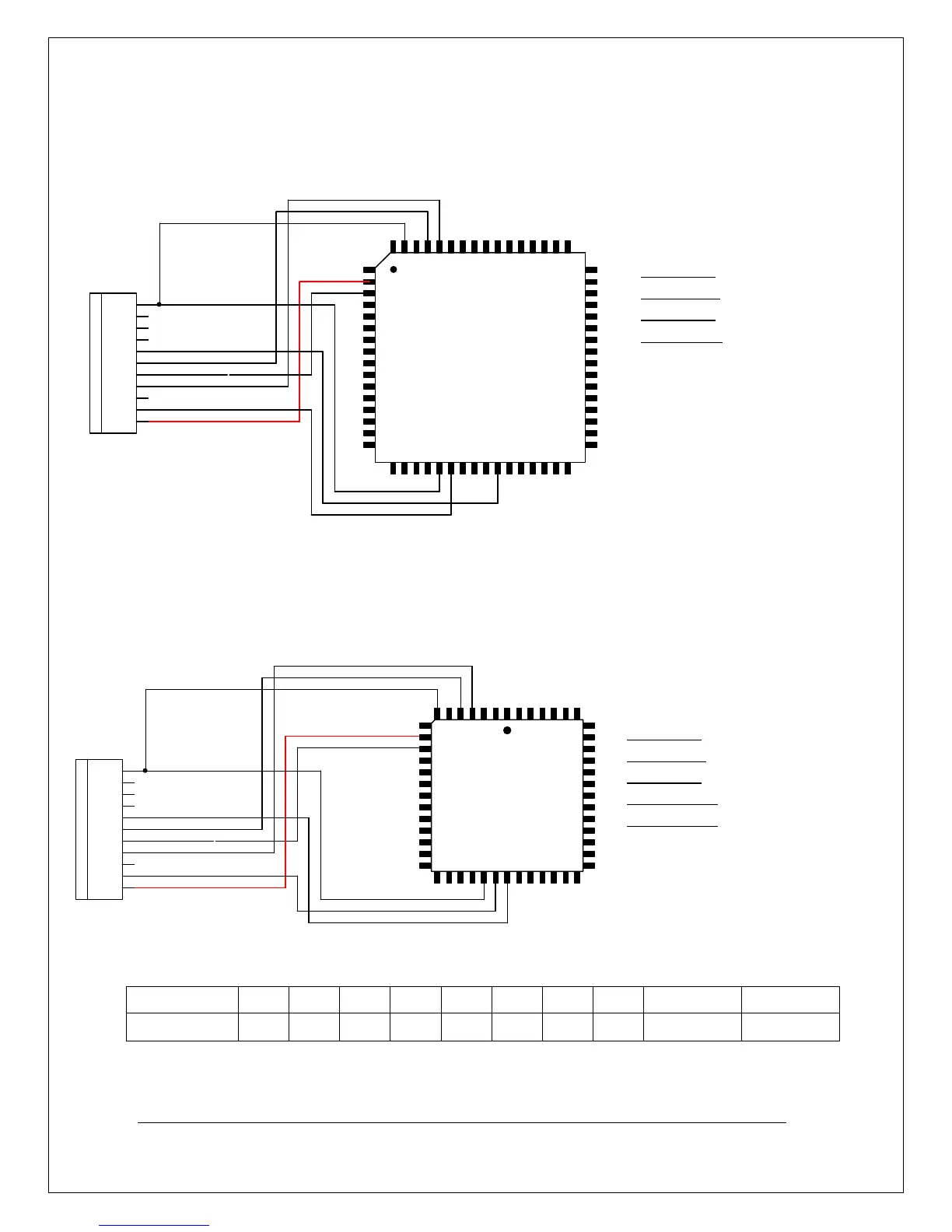

2.2.3. MC68HC08AZ32A
+9V
/IRQ
PTA0
PTC3
Vdd
Vss
/RST
QFP64
Optional-must be Lo
PTC0
Optional-must be Lo
PTC1
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
Optional-must be Hi
2.2.4. MC68HC08AS60/AS60A(PLCC52)
+9V
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
Optional-must be Lo
Optional-must be Lo
Vss
/IRQ
PTC1
/RST
PTC0
Optional-must be Hi
PLCC52
PTA0
Vdd
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - - 0/1 0 0/1 1 - +5V±5% +9V±5%
Mask sets: 0J66D
Oscillator: 58, 59 pin
Packages: QFP64
EEPROM: 0x0800 – 0x09FF
Mask sets: 0H62A, 8H62A
Oscillator: 2, 3 pin
Packages: PLCC52
EEPROM1: 0x0800 – 0x09FF
EEPROM2: 0x0600 – 0x07FF
