2.8. BMW EWS3
This section contains overall information about BMW EWS3 connection.
This is not intervention connection way uses EWS3 diagnostic line. With the
“Device Programmer Desktop” software (P/C: 2-001-0001) you can read,
write, decode and modify (VIN, Keys,…) EEPROM data (see Figure 9).
Figure 8. shows BMW EWS3 and XPROG-m connection using K-Line
(P/C: 1-002-0007)
adapter.

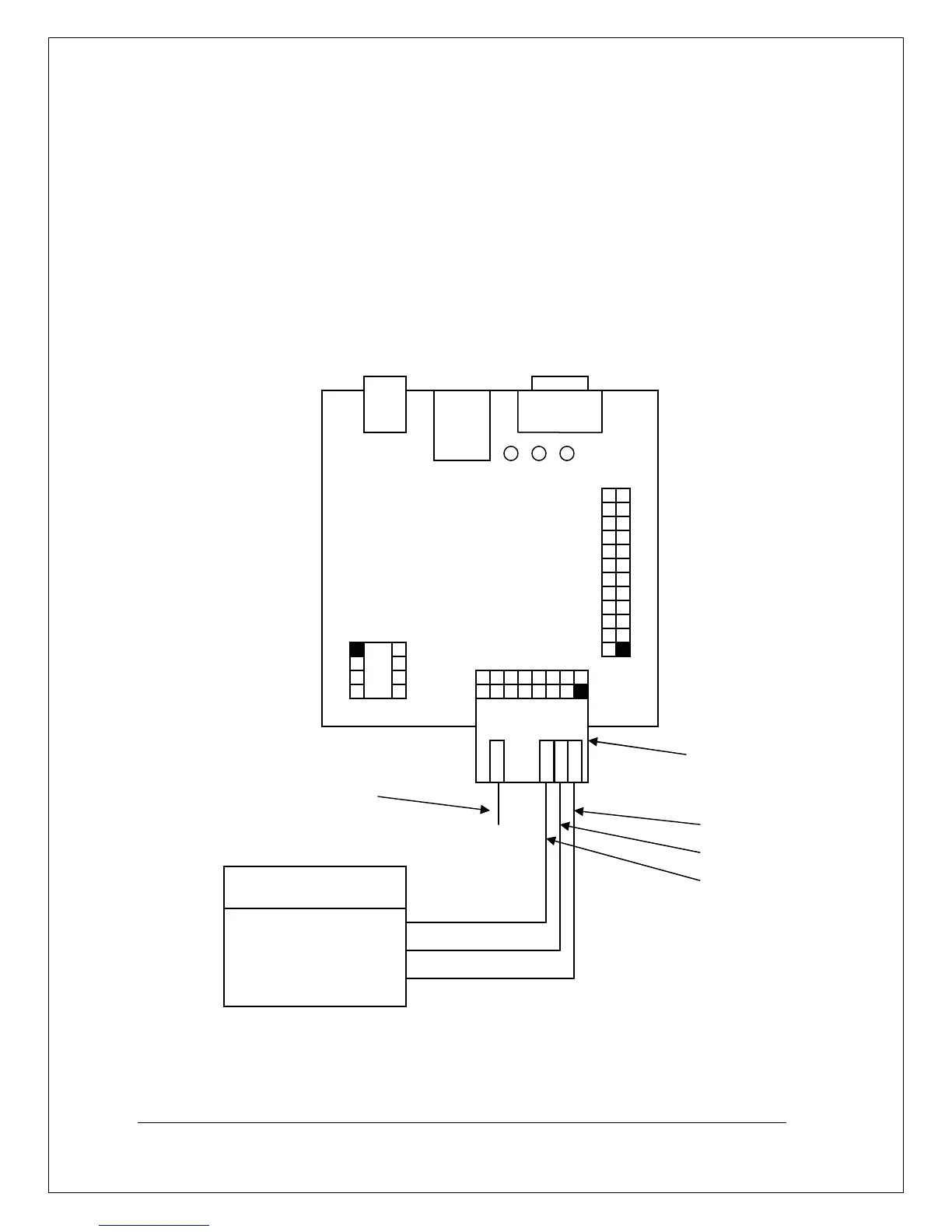

Figure 8. BMW EWS3 connection
K-Line adapter
P/C: 1-002-0007
GND
K-Line
+12V
Connect this pin to
MCU MODB pin.
(See 2.2.3 MC68HC11EA9 section)
BMW EWS3
Pin 10 (+30)
Pin 13 (K-Line)
Pin 9 (Ground)
