TMT XPROG-m - 2.3.11. MC68 HC11 PH8; 2.3.12. MC68 HC11 P2

XPROG-m © 2005
TMT
Users manual P/C: 3-001-0001
24

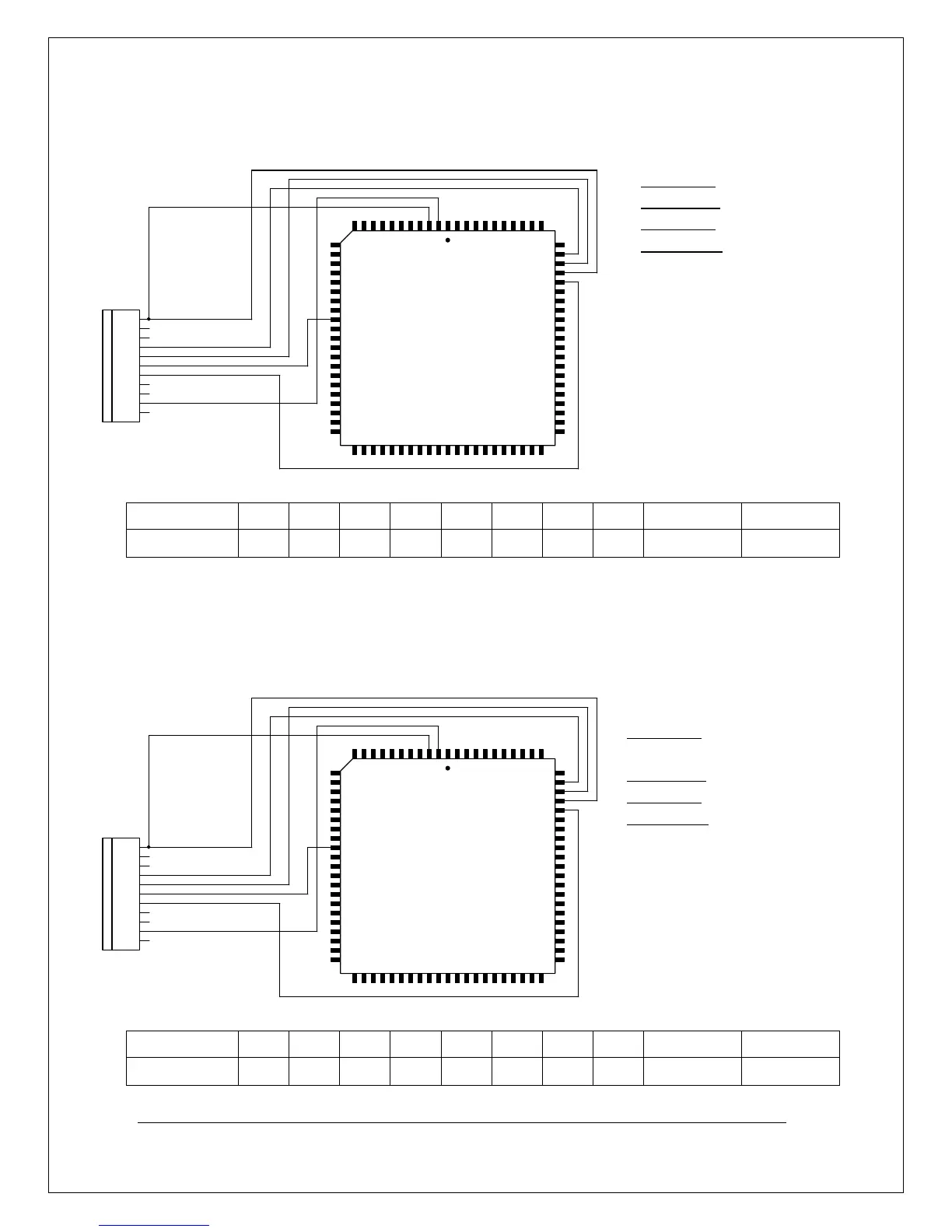

2.3.11. MC68HC11PH8
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
Optional-must be Lo
Optional-must be Lo
PLCC84
Vdd Vss
TxD
RxD
MODA
/RESET
MODB
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - 0/1 0/1 0 0/1 - - +5V±5%
2.3.12. MC68HC11P2
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
Optional-must be Lo
Optional-must be Lo
PLCC84
Vdd Vss
TxD
RxD
MODA
/RESET
MODB
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - 0/1 0/1 0 0/1 - - +5V±5%
Mask sets: 3D64J, 0H30R
Oscillator: 66, 67 pin
Packages: PLCC84
EEPROM: 0x0D00 – 0x0FFF
Mask sets: 3E74J, 1E53M,
0G10V
Oscillator: 66, 67 pin
Packages: PLCC84
EEPROM: 0x0D80 – 0x0FFF
