XPROG-m © 2005
TMT
Users manual P/C: 3-001-0001
8
2. TARGET CONNECTION
This section contains information how to connect XPROG-m™ to
various targets to access internal target resources such as EEPROM,
FLASH, ROM,…etc.
Note:
Nets marked “Optional - must be Lo or Hi TTL logic level” not
require connection with XPROG if they have described level in the
circuit.
Note: Some circuit connections can disturb proper XPROG
operation. In this case you must disconnect corresponding MCU pin
from circuit.
Warnig: XPROG Vpp and VppR pins have hi voltage who can
damage circuit. If you are not sure that you can’t damage circuit ,
you must disconnect this MCU pin from circuit.
2.1. MC68HC05 family

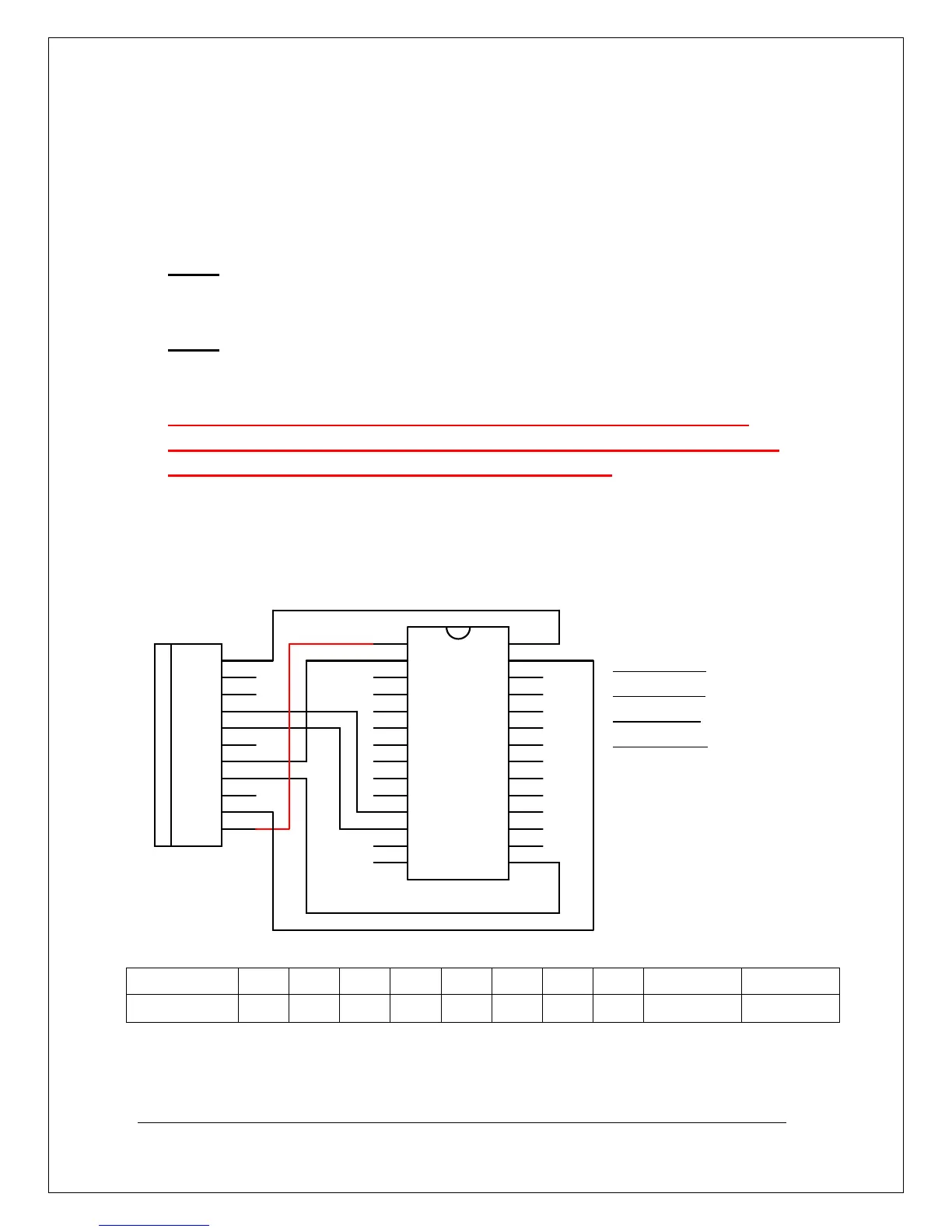

2.1.1. MC68HC05E6
Optional - must be Hi
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
+9V
/IRQ
/Reset
PB0
PB1
PC3
GND
Vcc
MC68HC05E6
1
2
3
4
5
6
7
8
9
10
12
11
14
13
24
23
22
21
20
19
18
17
16
15
25
26
27
28
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - 0/1 0/1 - 0/1 1 - +5V±5% +9V±5%
Mask sets: 0F82B, 0G72G
Oscillator: 3, 4 pin
Packages: SOIC28, SDIP28
EEPROM: 0x0100 – 0x019F
