TMT XPROG-m - 2.4. MC68 HC(S)12 family; 2.4.1. MC68 HC12 B32; 2.4.2. MC68 HC12 BE32

XPROG-m © 2005
TMT
Users manual P/C: 3-001-0001
26
2.4. MC68HC(S)12 family

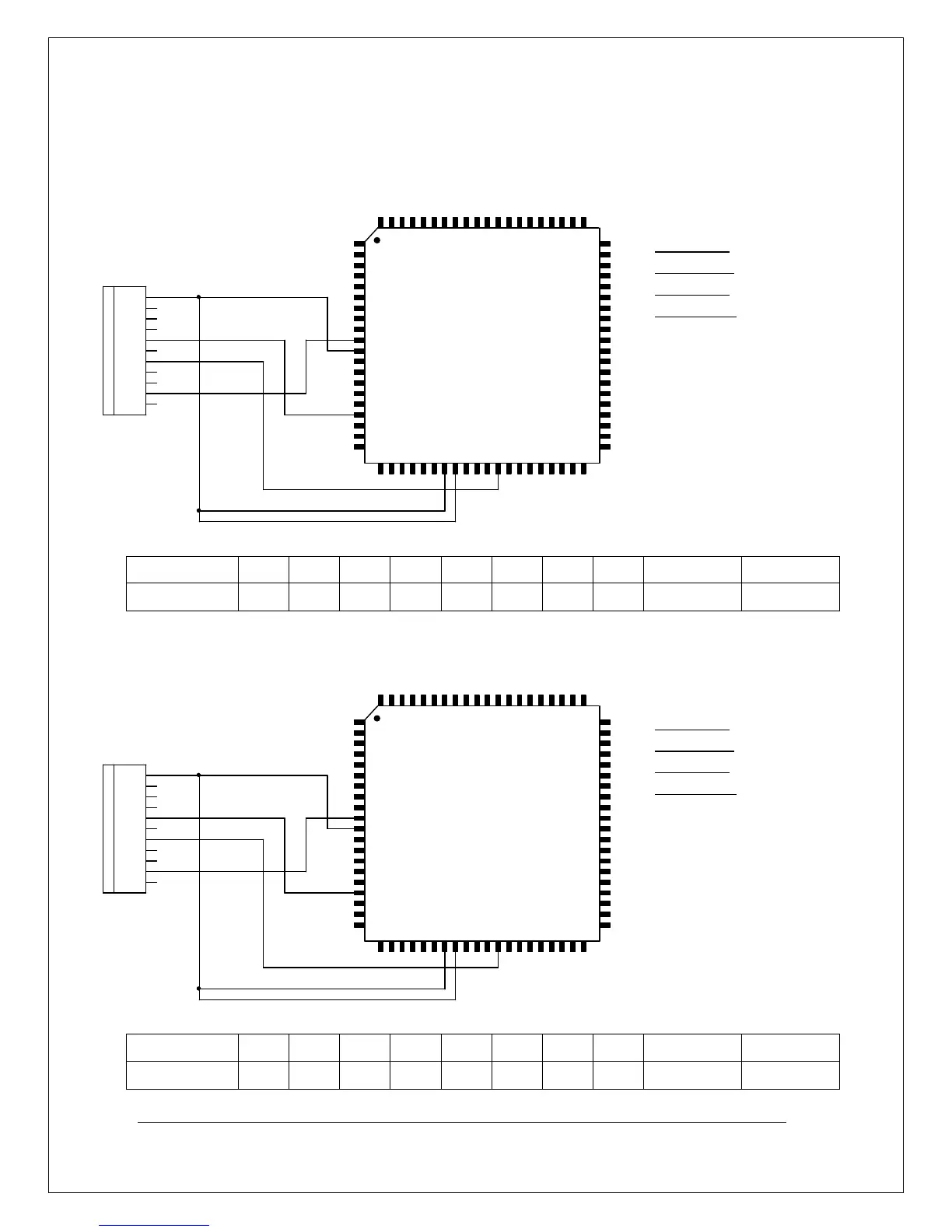

2.4.1. MC68HC12B32
MODB
Optional-must be Lo
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
QFP80
Optional-must be Lo
Vdd
Vss
BKGD
MODA /RESET
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - - 0/1 - 0/1 - - +5V±5%
2.4.2. MC68HC12BE32
MODB
Optional-must be Lo
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
QFP80
Optional-must be Lo
Vdd
Vss
BKGD
MODA /RESET
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - - 0/1 - 0/1 - - +5V±5%
Mask sets: 1H91F, 3H91F
Oscillator:
33, 34 pin
Packages: QFP80
EEPROM: 0x0D00 – 0x0FFF
Mask sets: 2H54T
Oscillator: 33, 34 pin
Packages: QFP80
EEPROM: 0x0D00 – 0x0FFF
