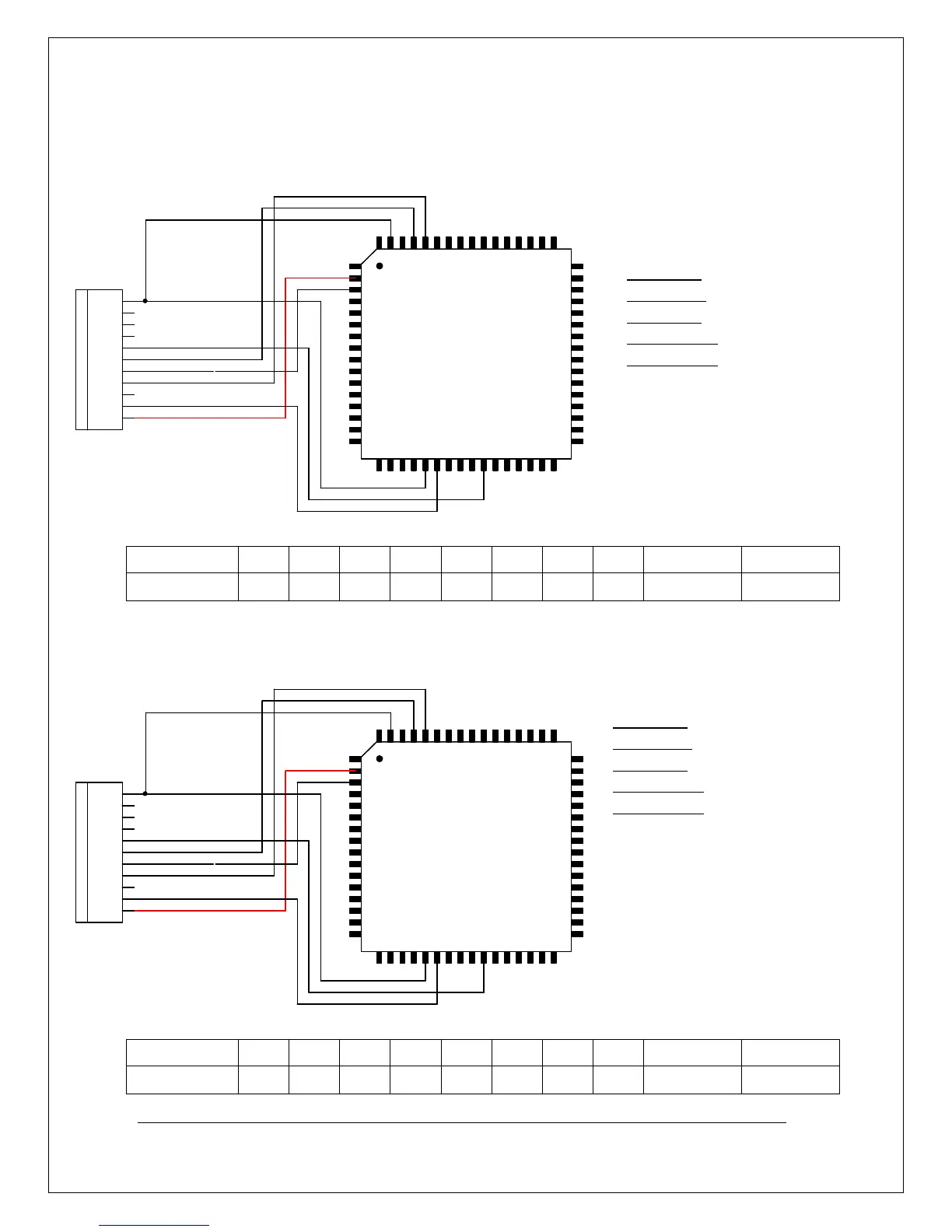

2.2.5. MC68HC08AS60/AS60A(QFP64)
+9V
/IRQ
PTA0
PTC3
Vdd
Vss
/RST
QFP64
Optional-must be Lo
PTC0
Optional-must be Lo
PTC1
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
Optional-must be Hi
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - - 0/1 0 0/1 1 - +5V±5% +9V±5%
2.2.6. MC68HC08AZ60A(QFP64)
+9V
/IRQ
PTA0
PTC3
Vdd
Vss
/RST
QFP64
Optional-must be Lo
PTC0
Optional-must be Lo
PTC1
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
Optional-must be Hi
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - - 0/1 0 0/1 1 - +5V±5% +9V±5%
Mask sets: 0H62A, 8H62A
Oscillator: 58, 59 pin
Packages: QFP64
EEPROM1: 0x0800 – 0x09FF
EEPROM2: 0x0600 – 0x07FF
Mask sets:
Oscillator: 58, 59 pin
Packages: QFP64
EEPROM1: 0x0800 – 0x09FF
EEPROM2: 0x0600 – 0x07FF
