TMT XPROG-m - 2.4.5. MC9 S12 D64(QFP80); 2.4.6. MC9 S12 D64(QFP112)

XPROG-m © 2005
TMT
Users manual P/C: 3-001-0001
28

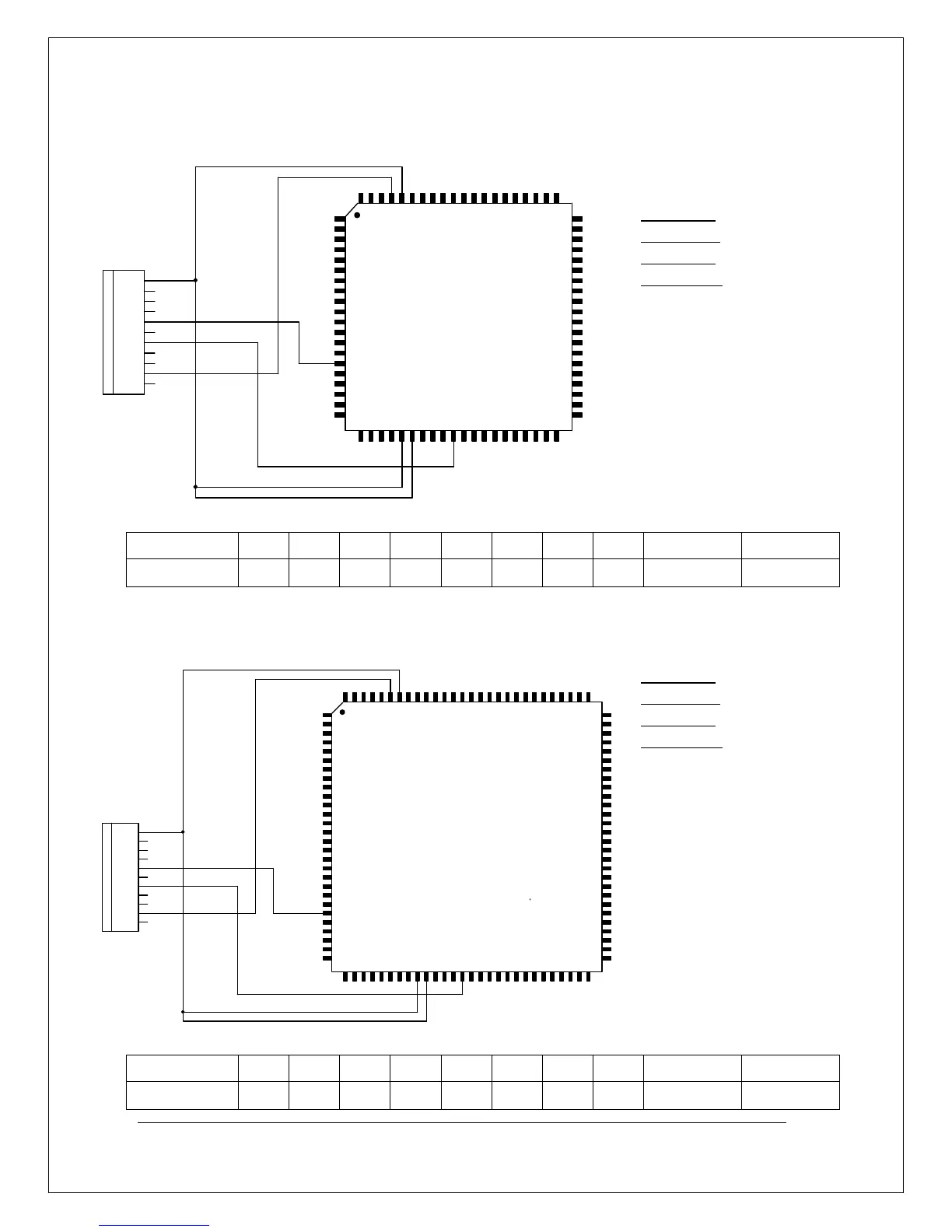

2.4.5. MC9S12D64(QFP80)
Optional-must be Lo
MODB
Optional-must be Lo
Vdd Vss
QFP80
BKGD
MODA /RESET
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - - 0/1 - 0/1 - - +5V±5%
2.4.6. MC9S12D64(QFP112)
QFP112
Vdd
Vss
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
BKGD
MODA MODB
Optional-must be Lo
/RESET
Optional-must be Lo
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - - 0/1 - 0/1 - - +5V±5%
Mask sets: 2L86D
Oscillator: 34, 35 pin
Packages:
QFP80
EEPROM: 0x4000 – 0x43FF
Mask sets: 2L86D
Oscillator: 46, 47 pin
Packages: QFP112
EEPROM: 0x4000 – 0x43FF
