TMT XPROG-m - 2.3.5. MC68 HC11 F1(QFP80); 2.3.6. MC68 HC11 K4(PLCC84)

XPROG-m © 2005
TMT
Users manual P/C: 3-001-0001
21

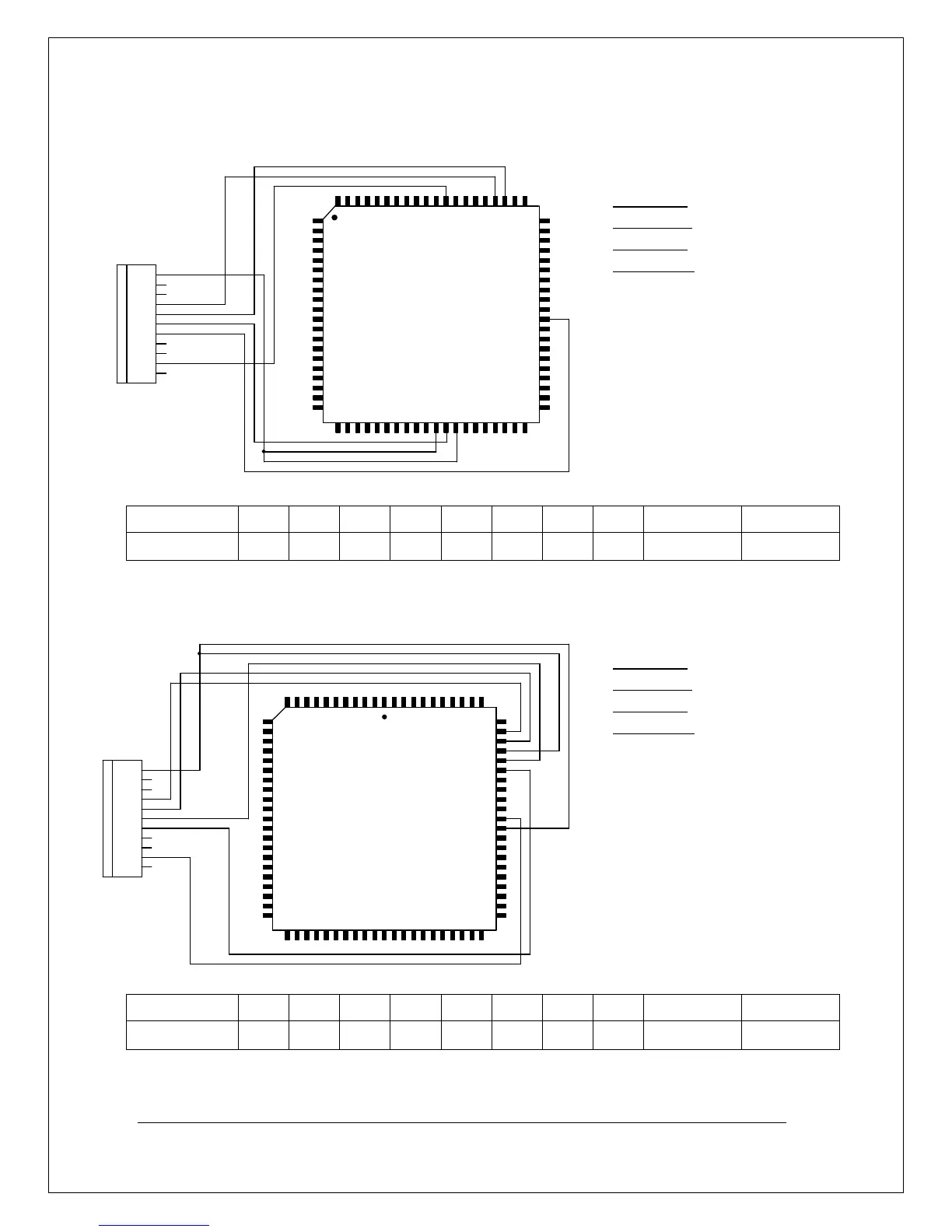

2.3.5. MC68HC11F1(QFP80)
Vdd
Vss
Optional-must be Lo
QFP80
/RESET
TxD
Optional-must be Lo
RxD
MODB
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
MODA
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - 0/1 0/1 0 0/1 - - +5V±5%
2.3.6. MC68HC11K4(PLCC84)
Vss
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
/RESET
PLCC84
MODA
Optional-must be Lo
MODB
TxD
Vdd
RxD
Optional-must be Lo
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - 0/1 0/1 0 0/1 - - +5V±5%
Mask sets: 2F37E
Oscillator: 36, 37 pin
Packages: QFP80
EEPROM:
0xFE00 – 0xFFFF
Mask sets: 1E62H
Oscillator: 67, 68 pin
Packages: PLCC84
EEPROM: 0x0D80 – 0x0FFF
