2.2. MC68HC08 family

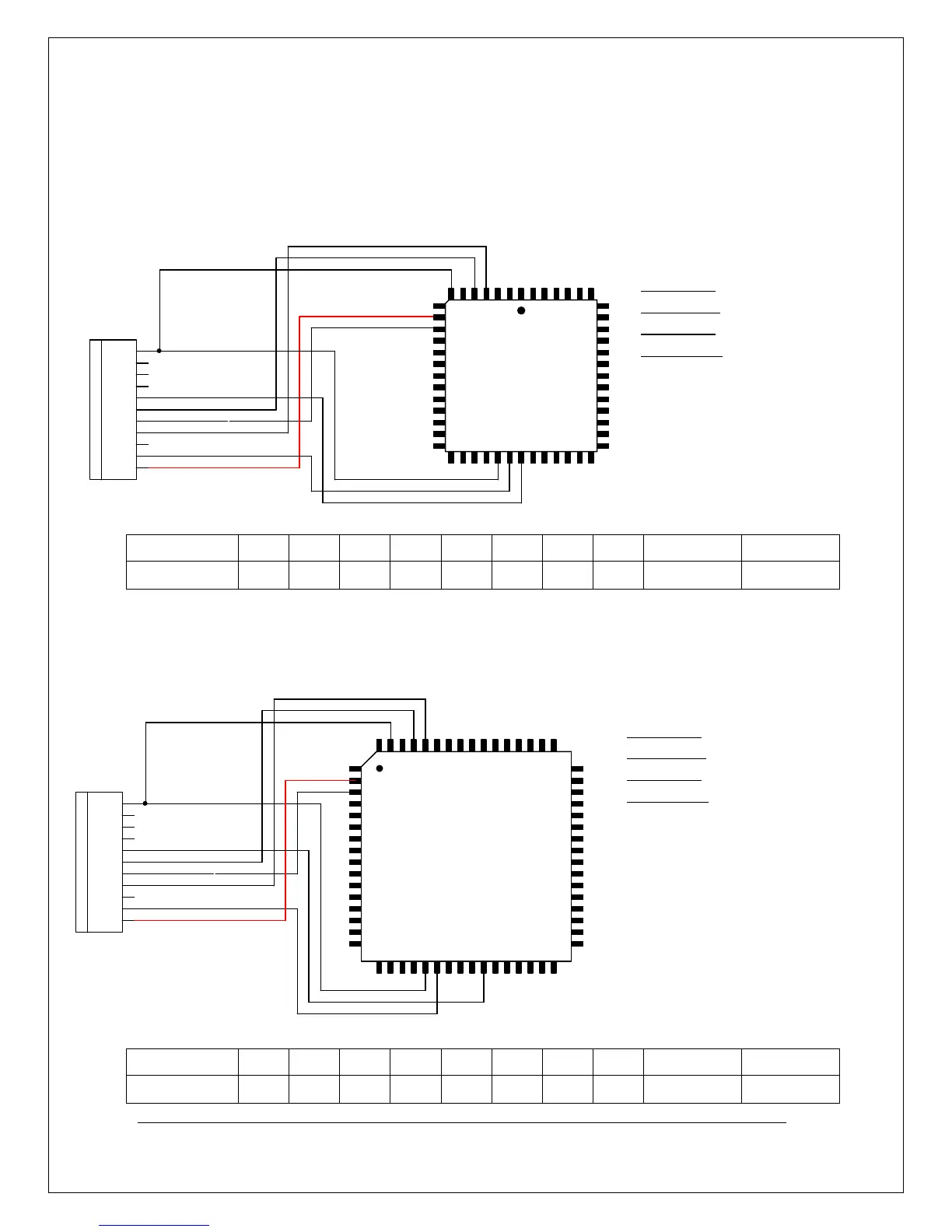

2.2.1. MC68HC08AS32/AS32A (PLCC52)
+9V
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
Optional-must be Lo
Optional-must be Lo
Vss
/IRQ
PTC1
/RST
PTC0
Optional-must be Hi
PLCC52
PTA0
Vdd
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - - 0/1 0 0/1 1 - +5V±5% +9V±5%
2.2.2. MC68HC08AS32/AS32A (QFP64)
Optional-must be Lo
+9V
QFP64
/RST
Vss
Optional-must be Lo
Vdd
Optional-must be Hi
/IRQ
PTA0
XPROG-m
GND
B0
B1
B2
B3
B4
B5
B6
Vcc
VppR
B7
PTC1 PTC0 PTC3
XPROG pin
B0 B1 B2 B3 B4 B5 B6 B7 Vcc VppR
Signal level - - - 0/1 0 0/1 1 - +5V±5% +9V±5%
Mask sets: 1J27F
Oscillator: 2, 3 pin
Packages: PLCC52
EEPROM: 0x0800 – 0x09FF
Mask sets: 1J27F
Oscillator: 58, 59 pin
Packages: QFP64
EEPROM: 0x0800 – 0x09FF
