2.7. M35080 SPI Bus EEPROM
The M35080 SPI Bus EEPROM memory with incremental registers area
support on-board and ICP (in-circuit programming) modes for reading all
EEPROM data, incremental area EEPROM writing, EEPROM writing,
erasing all EEPROM data to delivery state. Figure 6. shows M35080 on
board programming mode. In this mode M35080 device must be properly
inserted into XPROG-m DIP Socked. Figure 7. shows ICP programming
mode. In this mode, for best performance, ICP adapter must be used.
Note1. NC = Not Connected

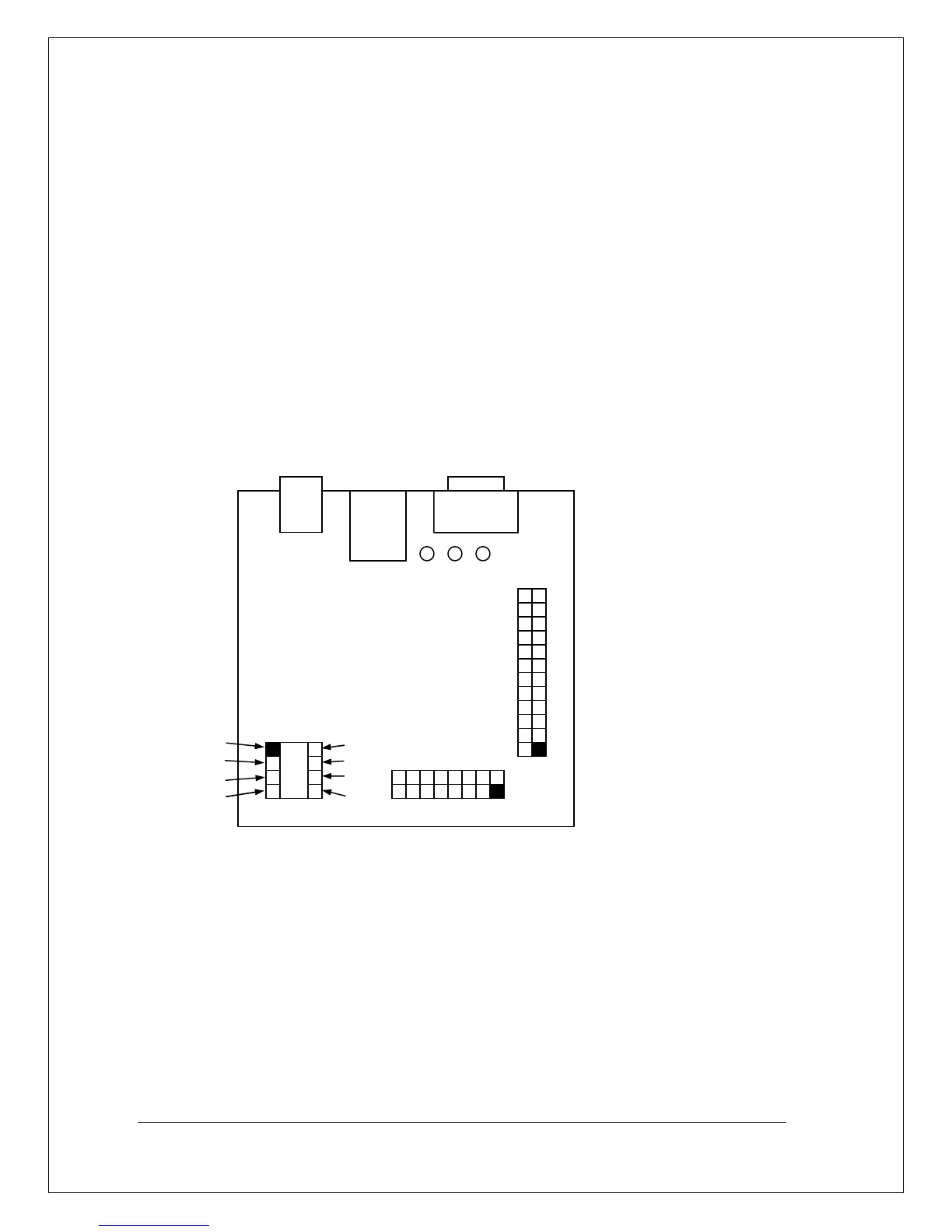

Figure 6. M35080 on board programming
M35080
Vss (1)
/S (2)
/W (3)
Q (4)
(8)Vcc
(7)D
(6)C
(5)NC
DIP Socked
