Chapter 2 INDICATOR STATUS OF REMOTE MICROPHONES
1.3.IndicatorStateattheTimeofBasePatternChange
When a Base pattern change function has been assigned to a function key, the 2 indicators to the left of the key
indicate its pattern selection and broadcast status.
Note
For instructions on assigning functions to function keys, see the separate Setting Software Instructions, "EVENT
SETTINGS."
Broadcast Status Indicator
Pattern Selection Indicator
Function key (Base pattern change key)

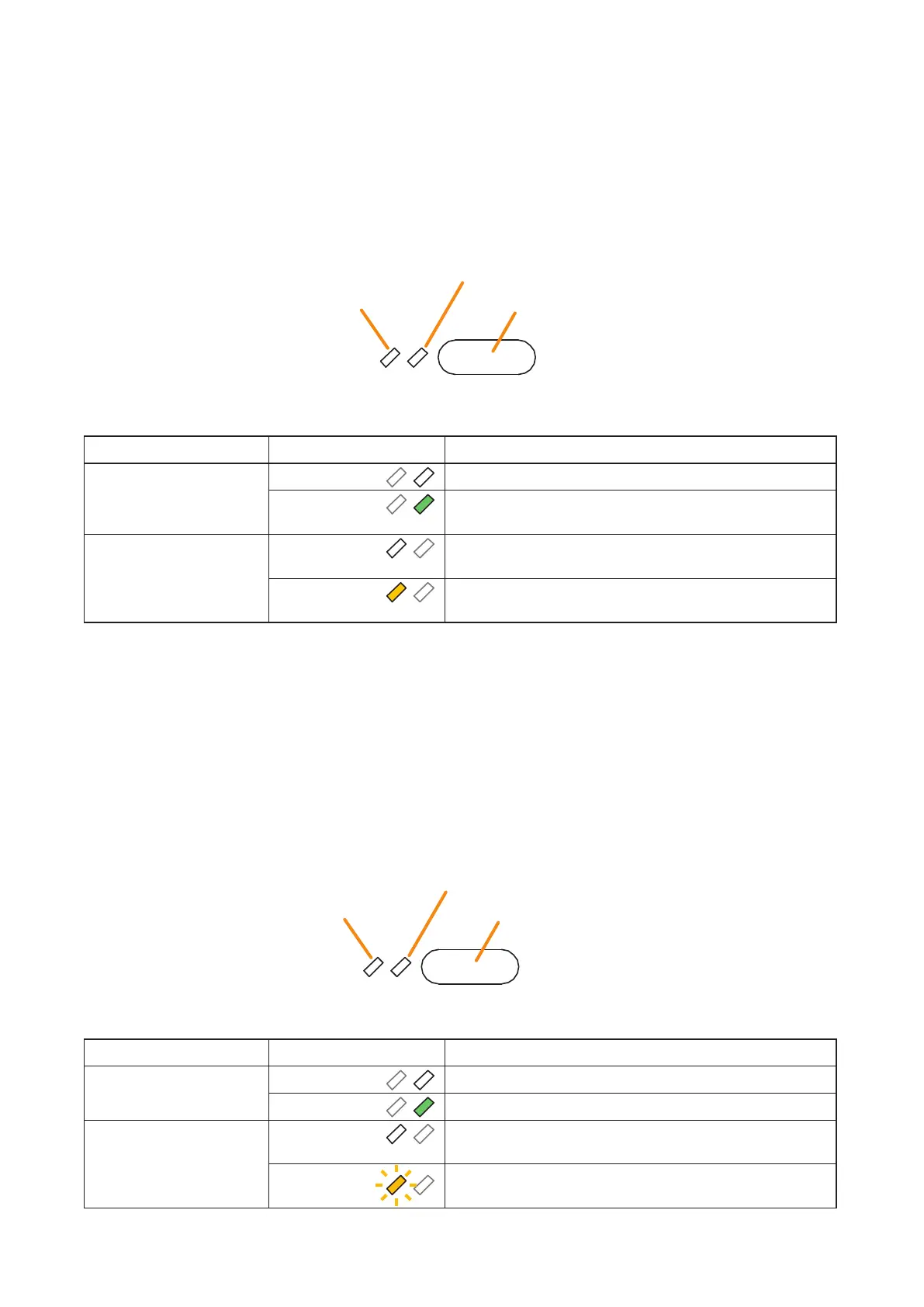

The meanings of the 2 indicators next to the Function key are as follows:
1.4.IndicatorStateattheTimeofGeneral-PurposeBroadcastPattern
When a general-purpose broadcast pattern function has been assigned to a function key, the 2 indicators to the
left of the key indicate its pattern selection and broadcast status.
Note
For instructions on assigning functions to function keys, see the separate Setting Software Instructions, "EVENT
SETTINGS."
Broadcast Status Indicator
Pattern Selection Indicator
Function key (General broadcast pattern key)
The meanings of the 2 indicators next to the Function key are as follows:
Indicator Status Meaning
Pattern Selection Indicator Unlit
When the function key is not pressed
Lights green
When the function key is pressed
(Lightsbriey,thengoesoff)
Broadcast Status Indicator Unlit
When the Base pattern assigned to the function key is not
being broadcast
Lights yellow
When the Base pattern assigned to the function key is being
broadcast (including broadcasts activated by other devices)
Indicator Status Meaning
Pattern Selection Indicator Unlit
When the function key is not pressed
Lights green
When the function key is pressed
Broadcast Status Indicator Unlit
When the broadcast pattern assigned to the function key is
not being broadcast
Flashes yellow
When the broadcast pattern assigned to the function key is
being broadcast
