Toa RM-300X - VX-3004 Fs Operation Example

3 -11
Chapter 3 OPERATION
GF
1F
2F
3F
Emergency
sequence
Phase 1
General-purpose
broadcast
restored.
Emergency
sequence
Phase 2
Continuous
BGM
GF
Building ABuilding B
1F
2F
3F
4F
5F
6F
BGM
GF
1F
2F
3F
Evacuation
GF
Building ABuilding B
1F
2F
3F
4F
5F
6F
Evacuation
Evacuation Evacuation
Evacuation
Evacuation
Evacuation
Evacuation
Evacuation
Evacuation
Evacuation
Alert
Alert
Alert
GF
1F
2F
3F
BGM
GF
Building ABuilding B
1F
2F
3F
4F
5F
6F
BGM

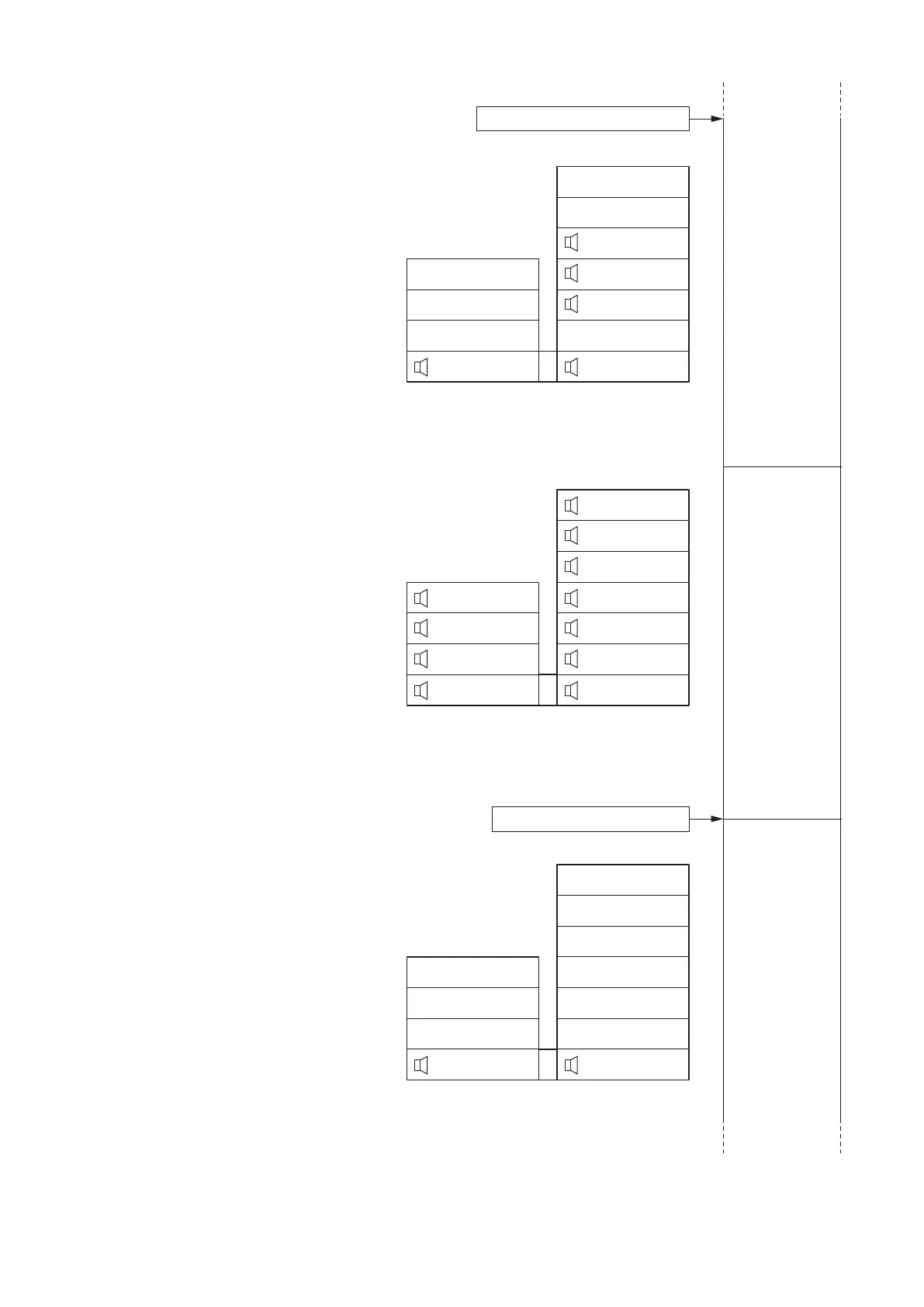

Emergency restoration signal
Signal added to A-2F and A-4F
Step 3. Following this, the sensors
installed on A-2F and A-4F detect
irregularities and the re alarm
system transmits a control signal
to the control input.
Broadcast zones are added, and
the alert message is also broadcast
to A-2F and A-4F, as well.
Step 4. After the set 5-minute time
interval elapses, the message is
automatically switched from Phase
1 to Phase 2.
Broadcast zones change to the
"entire zone" and the evacuation
message is broadcast to the entire
area, and BGM stops.
The evacuation announcement
continues until the Remote
Microphone's Reset key is
pressed or a restoration signal is
transmitted from the connected
realarmsystem.
Step 5. The re alarm system transmits
a restoration control signal to the
control input.
The emergency mode is terminated
and the broadcast reverts to
general-purpose broadcast mode,
restoring BGM output.
