Chapter 2 INDICATOR STATUS OF REMOTE MICROPHONES
1.22.IndicatorStateattheTimeofEmergencyWarningBroadcast
When an emergency warning broadcast function has been assigned to a function key, the 2 indicators to the
left of the key indicate its selection and broadcast statuses.
Meanwhile, when the Emergency key is assigned this function, the key indicate its broadcast statuses.
Note
For instructions on assigning functions to function keys, see the separate Setting Software Instructions, "EVENT
SETTINGS."

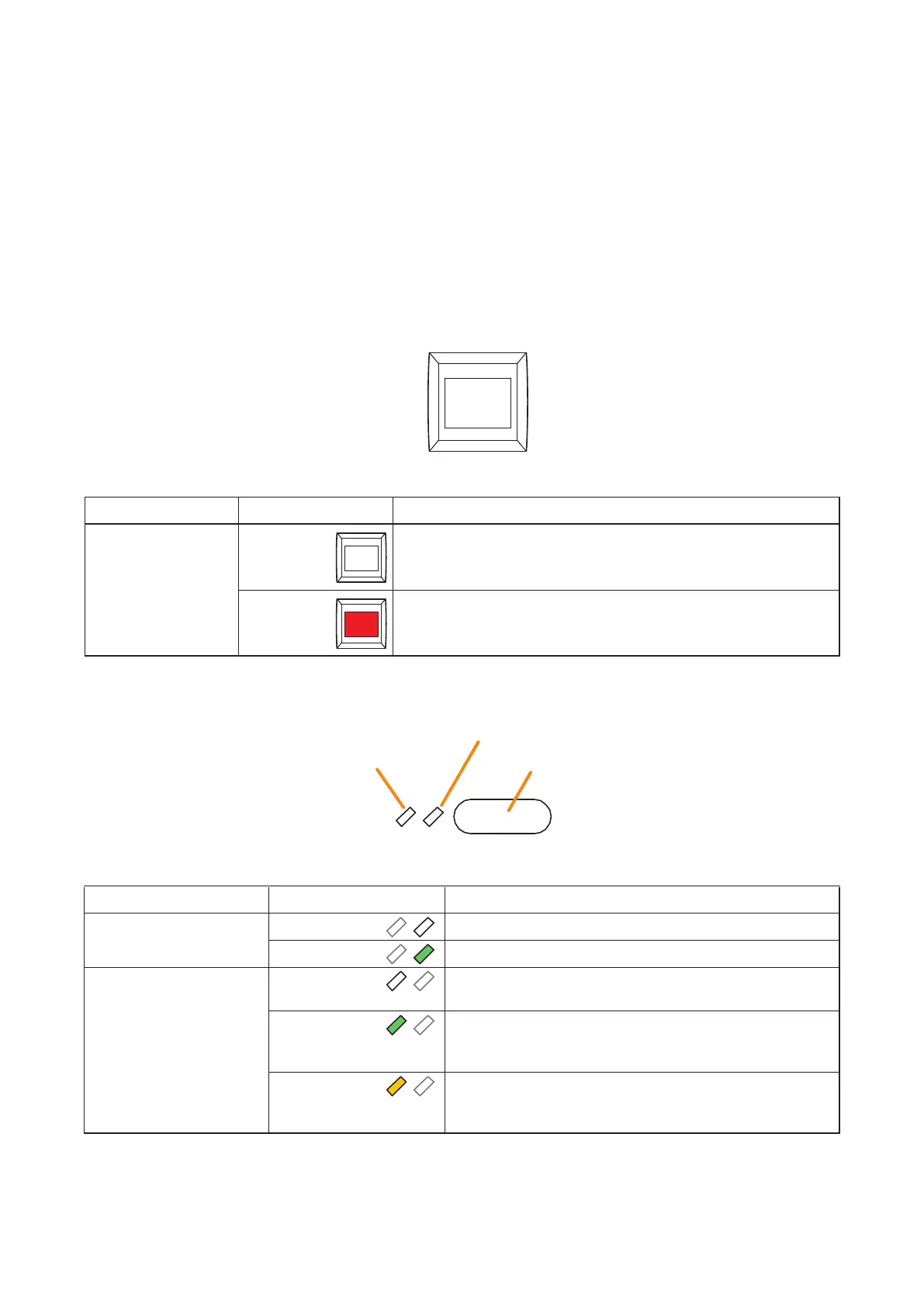

Emergency key
[WhenassignedtotheEmergencykey]
Indicator Status Meaning
Emergency Key
Indicator
Unlit
When the audio source for an emergency warning broadcast assigned
to the Emergency key is not broadcast to any zones
Lights red
When the audio source for an emergency warning broadcast assigned
to the Emergency key is broadcast to at least a part of the zones
assigned to this key
[Whenassignedtothefunctionkey]
The meanings of the 2 indicators next to the Function key are as follows:
Indicator Status Meaning
Selection Indicator Unlit
When the function key is not pressed
Lights green
When the function key is pressed (as long as it is pressed)
Broadcast Status Indicator Unlit When the audio source for an emergency warning broadcast
assigned to the function key is not broadcast to any zones
Lights green
When the audio source for an emergency warning broadcast
assigned to the function key is broadcast to the zones other
than those assigned to this key
Lights yellow When the audio source for an emergency warning broadcast
assigned to the function key is broadcast to at least a part of
the zones assigned to this key
Broadcast Status Indicator
Selection indicator
Function key (Emergency warning broadcast key)
