CONTROLS AND FEATURES (R type)
<Fast Idle Button>
(R3 type)
Use the fast idle button and the
remote control l
ever to adjust the
engine speed without gearshift when
warming up the engine.
Pushing the fast idle button, turn the
remote control lever forward. Keep
turning the
lever forward. The throttle
opens and the engine speed increases
after the lever passed the shift point.
Note that the gearshift mechanism
does not function when
the fast idle
button is pushed once and then
released after the remote control lever
is moved.
Emergency Stop Switch
(R1 type)
(R2, R3 types)
Press the emergency stop switch to
stop the e
ngine.
Emergency Stop Switch Lanyard/
Clip
The emergency stop switch lanyard is
provided
to stop the engine
immediately in the event the operator
should fall overboard or away from
the controls.
The emergency stop switch clip must
be
engaged with the emergency stop
switch or the engine will not start.
When the emergency stop switch clip
becomes disengaged with the
emergency stop switch the engine
will stop immediately.

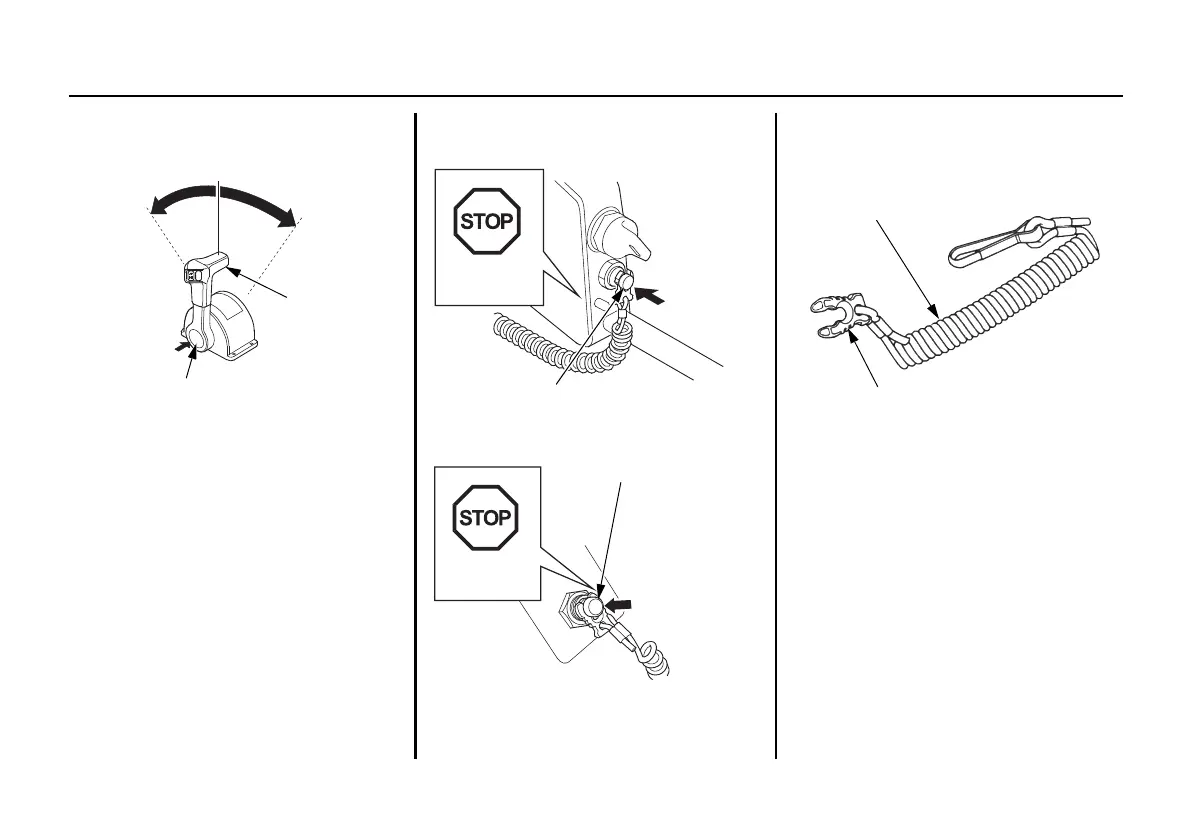

FAST IDLE BUTTON
NEUTRAL
FORWARD
REVERSE
Push
REMOTE
CONTROL
LEVER
STOP
EMERGENCY STOP SWITCH
EMERGENCY STOP
SWITCH
STOP
EMERGENCY STOP
SWITCH LANYARD
EMERGENCY STOP SWITCH CLIP
