INSTALLATION
Location
Install the outboard motor at the
stern, a
t the center line of the boat.
Installation Height
The anticavitation plate of the
o
utboard motor should be ± 25 mm
( ± 1 in) below the bottom of the boat.
The correct dimensions differ
according to the
type of the boats and
the configuration of the bottom of the
boats. Follow the manufacture’s
recommended installation height.
• The water level must be at least
100 mm (4 in) above the
anticavitation plate, otherwise
the water pump may not receive
sufficient cooling water, and the
engine will overheat.
• Adverse effect to the engine can
occur if the installation position
of the outboard motor is too low.
Trim/tilt down the outboard
motor with the boat fully loaded
and stop the engine. Check that
the idle port is 150 mm (5.9 in)
or more above the water level.

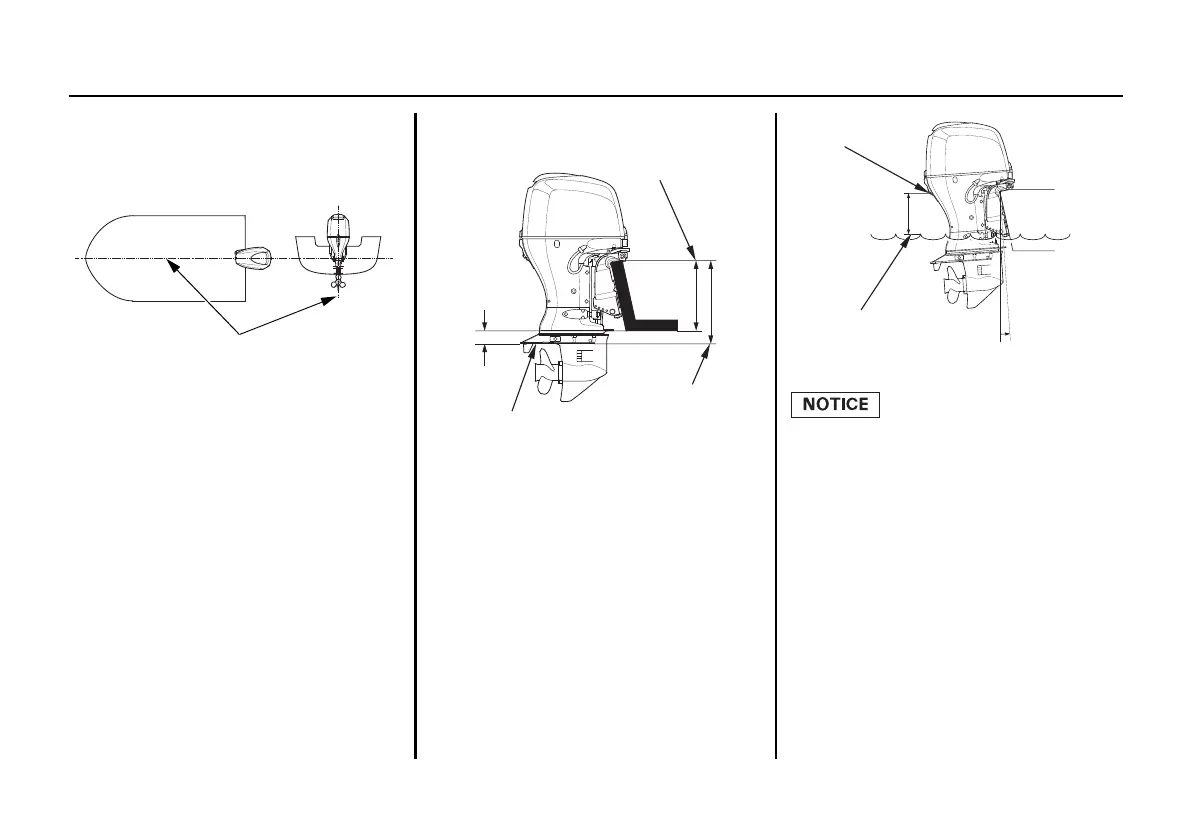

BOAT TRANSOM
HEIGHT
± 25 mm
( ± 1 in)
ANTICAVITATION
PLATE
TRANSOM
HEIGHT
IDLE PORT
150 mm
(5.9 in)
or more
WATER LEVEL
FULLY
TRIM/TILT
DOWN
