INSTALLATION
Outboard Motor Angle Inspection
(Cruising)
Install the outboard motor at the best
trim angle for
stable cruising and
maximum power.
Trim angle too large: Incorrect
causes boat to ‘‘squat.’’
Trim angle too small: Incorrect
causes boat to ‘‘plow.’’
The trim angle differs according to
the combination of the boat, outboard
motor, and propeller, and the
operating conditions.
Adjust the outboard motor
so that it
is perpendicular to the water surface
(i.e. axis of the propeller is parallel
with the water surface).

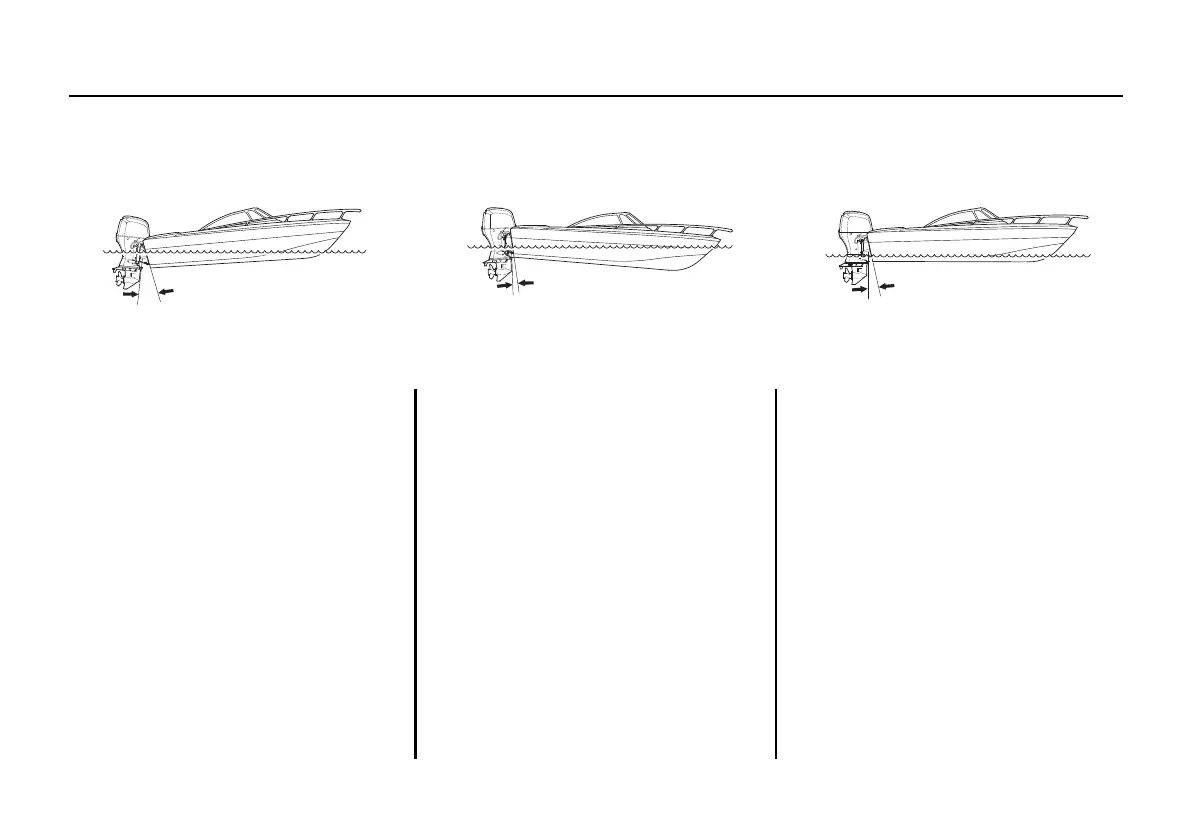

INCORRECT
CAUSES BOAT TO ‘‘SQUAT’’
INCORRECT
CAUSES BOAT TO ‘‘PLOW’’
CORRECT
GIVES MAXIMUM PERFORMANCE
To Next Page
