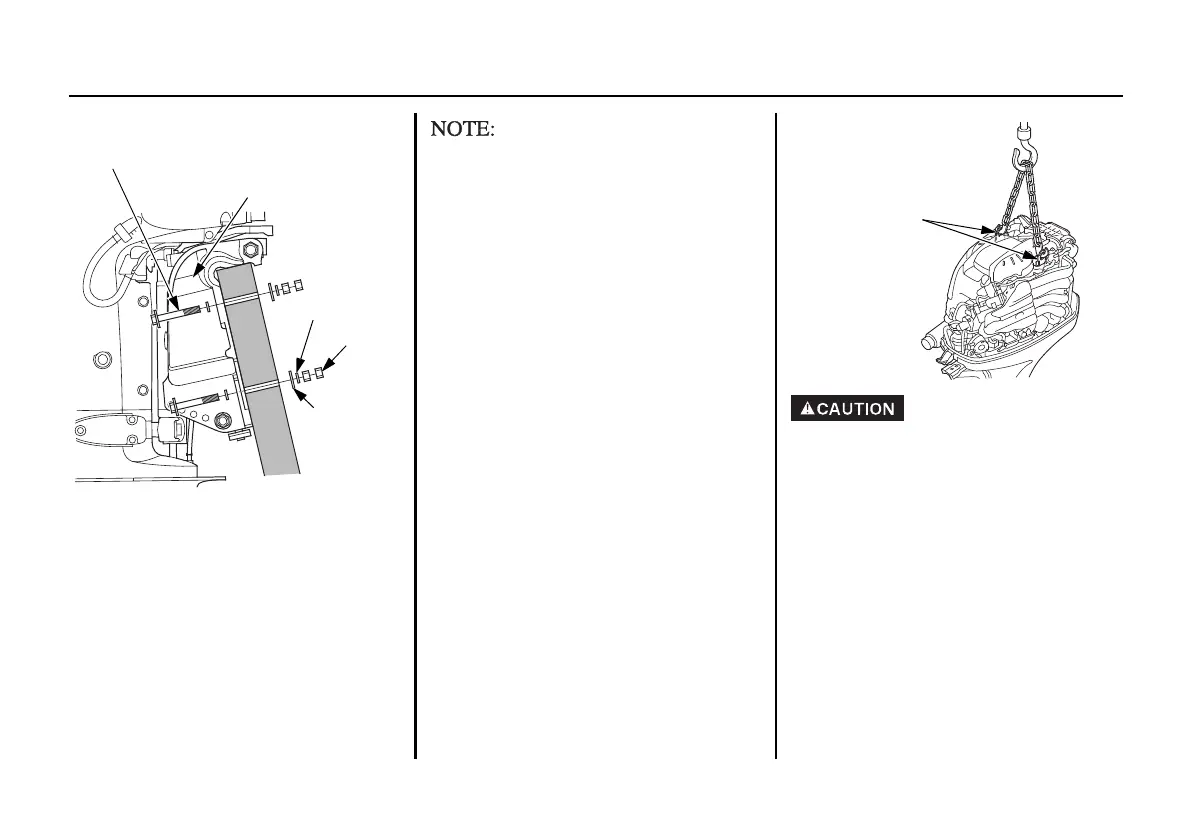

INSTALLATION
Outboard Motor Installation
1. Apply the silicone sealant
(Three Bond 1216 or equivalent) to
the outboard
motor mounting
holes.
2. Set the outboard motor on the boat
and se
cure with the bolts, washers,
and nuts.
Standard torque:
55 N·m (5.6 kgf·m, 41 lbf·ft)
The standard torque is given just as a
guideline. Torque of the nut can be
different according to the material of
the boat. Consult with an authorized
TOHATSU outboard motor dealer.
Install the outboard motor securely.
Loosely mounted outboard motor
can result in accidental loss of the
outboard motor and damage and
injury to the equipment and
personnel.
Before installing the outboard motor
on the boat, hang the outboard motor
with the hoist or equivalent devise by
attaching the two engine hangers to
the outboard.
Use the hoist which allowable load is
25
0 kg (551 lbs) or above.
BOLT (12 × 119 mm) (4)
STERN BRACKET
WAS H E R ( 8)
NUT (8)
WAS H E R ( 4 )
To Next Page
