PRE-OPERATION CHECKS
Tiller Handle Height/Angle
Adjustment (H type)
The tiller handle height and angle can
be adjusted to
three positions by
changing the installation direction of
the height adjustment block. Select a
suitable height and angle for the
operator and secure the block.

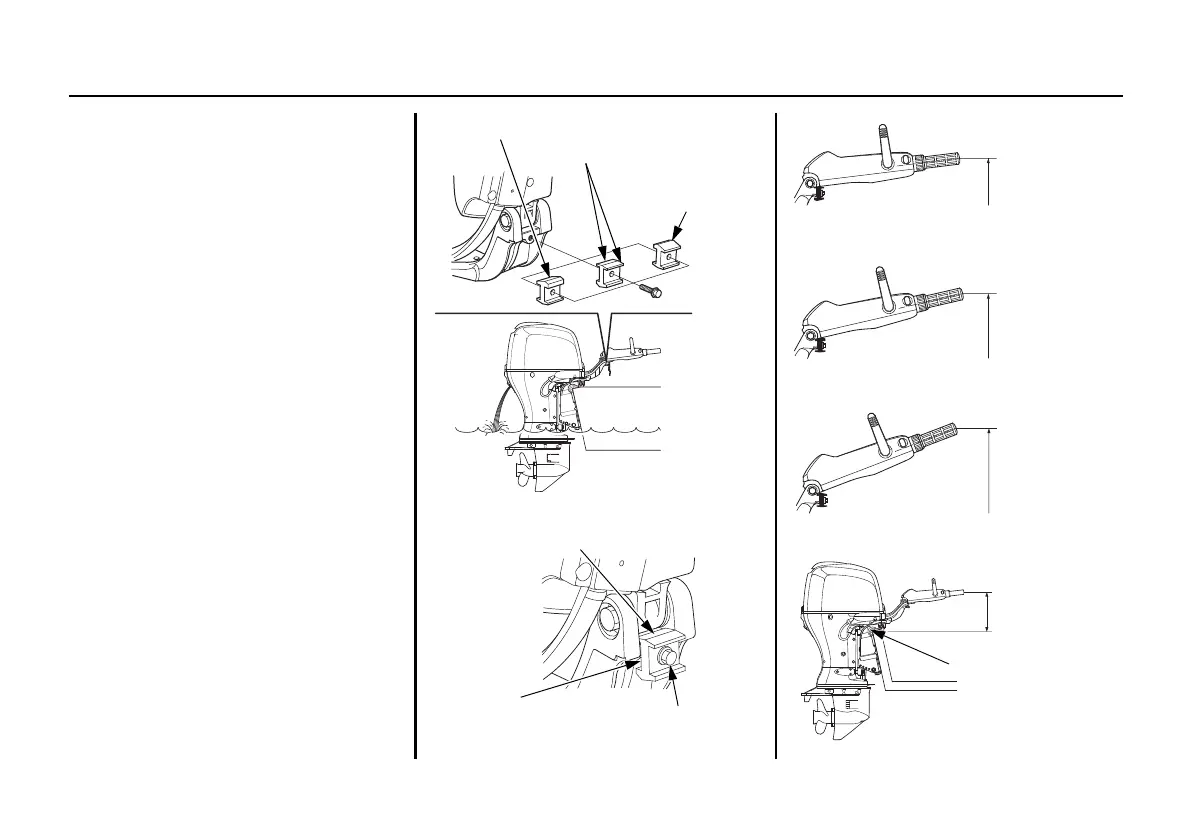

<Height/Angle Adjustment
Pr
ocedure>
1. Raise the tiller handle and remove
the 8 × 28 mm fl
ange bolt and the
height adjustment block.
2. Pull down the tiller handle.
Determine the height adjustment
blo
ck installation direction and
secure the block with the 8 × 28
mm flange bolt.
HANDLE ANGLE: 13°
HANDLE ANGLE: 7°
HANDLE
ANGLE: 21°
Install the height adjustment block
so that the selected angle of the
tiller handle is in this position.
HEIGHT
ADJUSTMENT
BLOCK
8 × 28 mm
FLANGE BOLT
361 mm
(14.2 in)
438 mm
(17.2 in)
HEIGHT
Reference point
298 mm
(11.7 in)
HANDLE ANGLE: 7°
HANDLE ANGLE: 21°
HANDLE ANGLE: 13°
To Next Page
