TOMAHAWK TW-9010

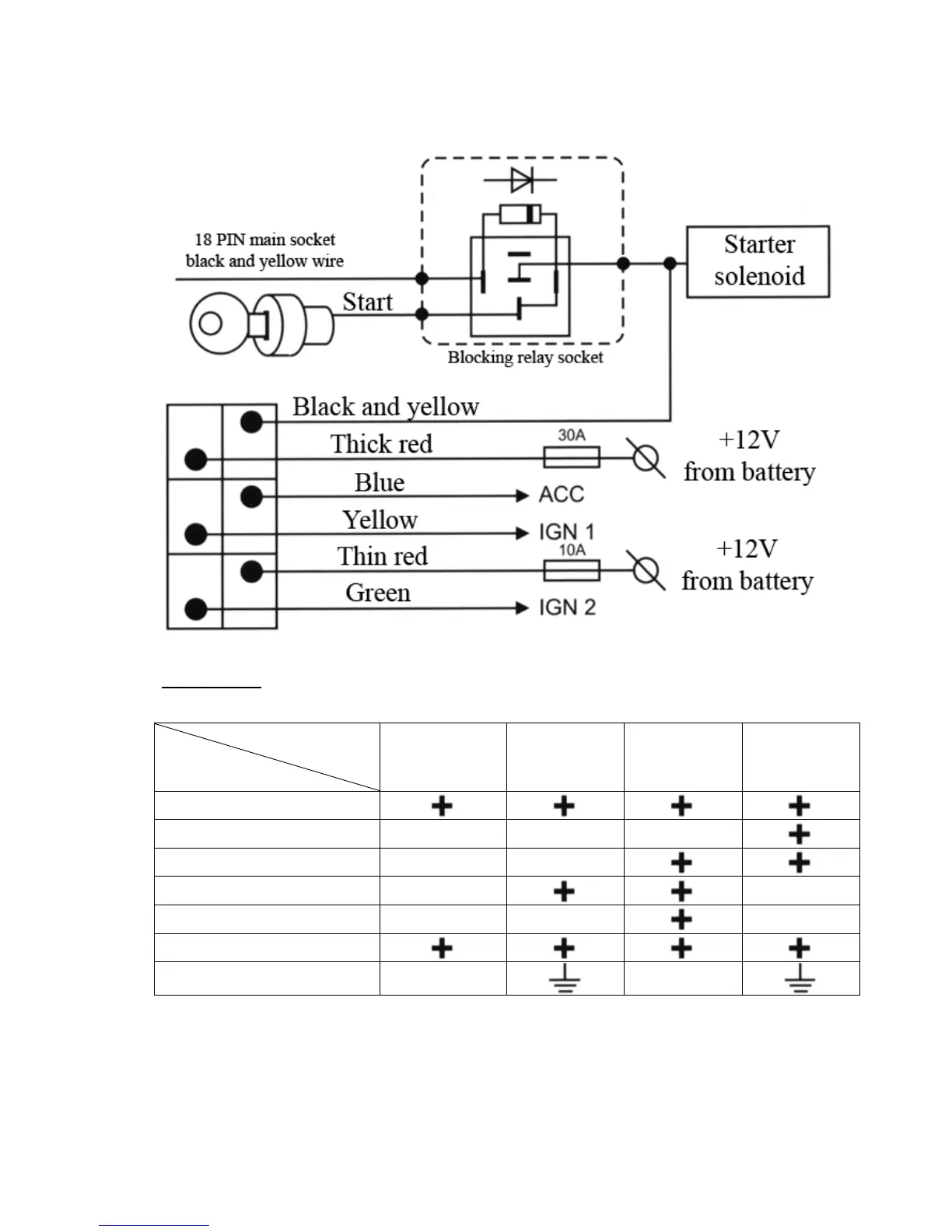

6 PIN Remote Start-up Power Socket
Diagram 1
ATTENTION!
Connect blocking relay socket according to diode polarity shown in diagram 1.
Ignition key
position
Wire
Off
ACC
Ignition
Start
System power supply wire
Starter wire
IGN 1 wire
ACC wire
IGN 2 wire
Power circuit supply wire
IGN 3 wire
30
