Introduction
3.4 Operating Modes

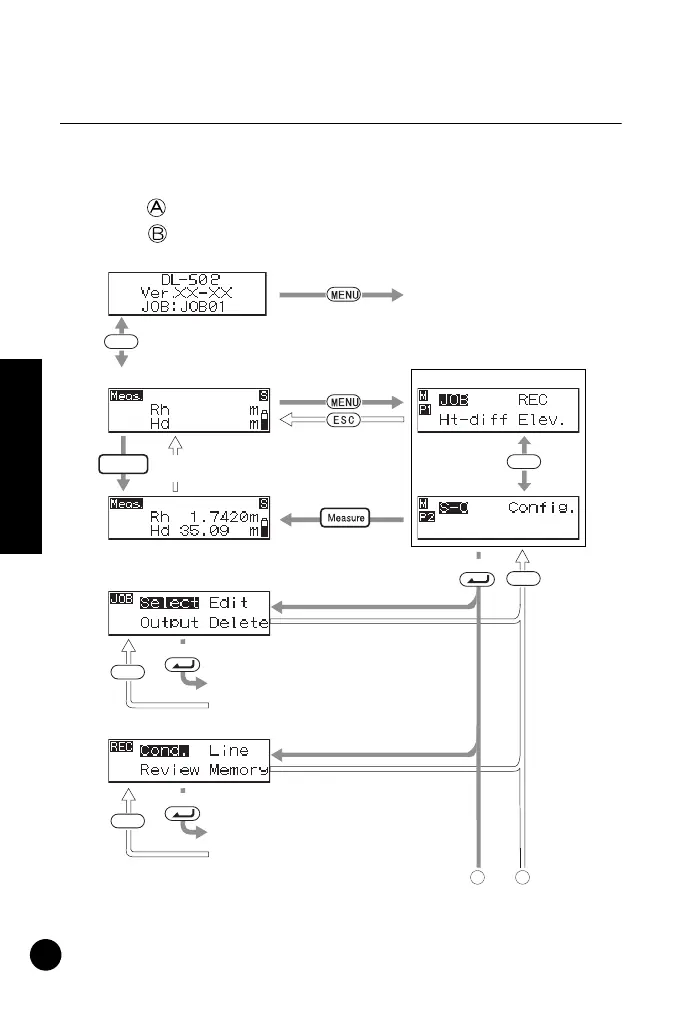

The DL has a number of functional modes. This section
shows the screens that can be displayed in each mode.
: Key operation for selecting each menu
: Key operation for returning to previous screen
[Instrument information mode]
[Measurement mode]
[Job setting mode]
[Record setting mode]
[Status mode]
ESC
ESC
ESC
Select
Measure
[At completion of a
measurement]
[Menu of selected
function is displayed]
ESC
Select
[Menu of selected
function is displayed]
[Menu mode]
(Page 1)
(Page 2)
MENU
[Screen showing the number
of points that can be
recorded is displayed]
Select
A B
