15. Sending Recorded Data
Recorded data can be sent to a connected computer or data collector.
Commands sent from a computer or the data collector instruct the DL-
502/503 to carry out measurement, and the measurement results are
output.

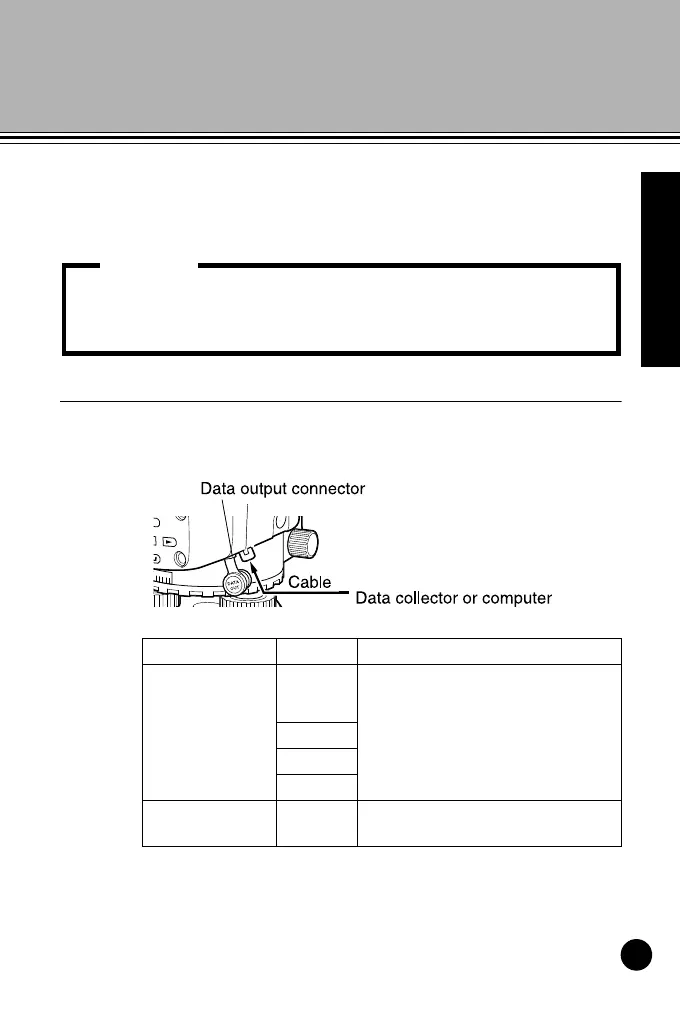

15.1 Connecting to a Computer or Data Collector
Use the dedicated communication cable to connect the DL-
502/503
to the data collector or a computer.
• Communication cable
If using a data collector, use the cable supplied with the data
collector.
Computer Cable Notes
IBM PC/AT or
compatible
DOC26 Length: 2m
Pin Numbers and signal levels:
RS-232C compatible
D-sub connector:
DOC26: 25 pins (female)
DOC27: 9 pins (female)
DOC27
F-4
F-24
Other personal
computers
DOC1 No connector for attachment to
a computer.
• The DL-502/503 accepts commands only when in status mode or
menu mode. Received commands are not executed in any other
state.
Important:
