How to Enter Grade
1 Press the X/Y key to begin grade input.
The axis symbol will flash and it will go into grade entry
status.
(The X and Y axis displays will switch with each push.)
2 Select positive or negative grade by pressing arrow
keys (Up or Down).
3 Move the cursor by pressing the arrow keys (Right or Left).
4 Increase or decrease the number by pressing the arrow keys (Up or Down).
5 Press the [ENT] key to finish input.
When setting up using the remote controller
Confirm the [OK].
If the [NG] mark is displayed, press the [ENT] key.
When holding down the [X] or [Y] key while the X or Y symbol is flashing, the flashing
axis will reset to 00.000%.

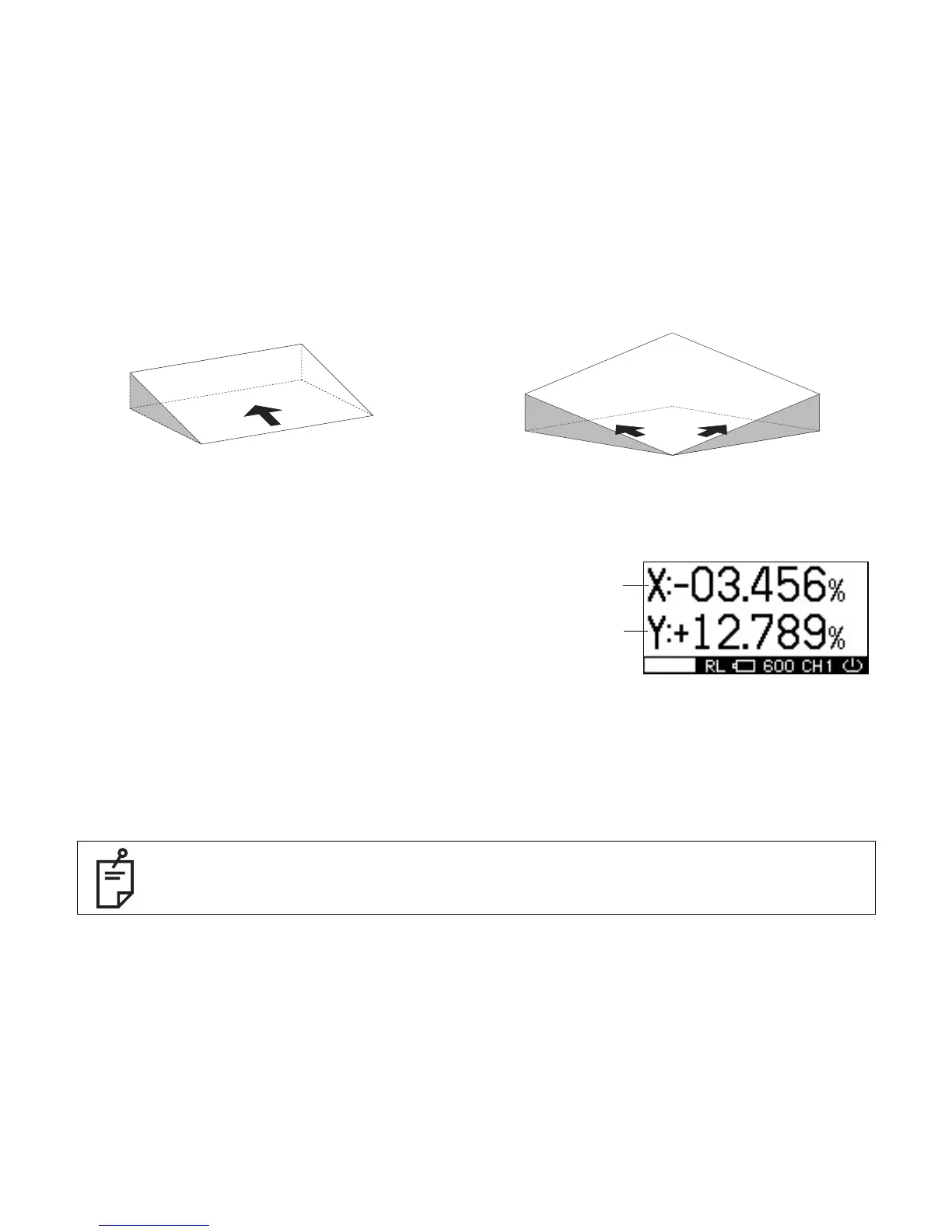

Single axis Dual axes
Grade range:
X: –10% to +10%
or
Y: –5% to +25%
Grade range:
X: –10% to +10%
Y: –5% to +25%
X axis
Y axis
X axis
Y axis
To Next Page
