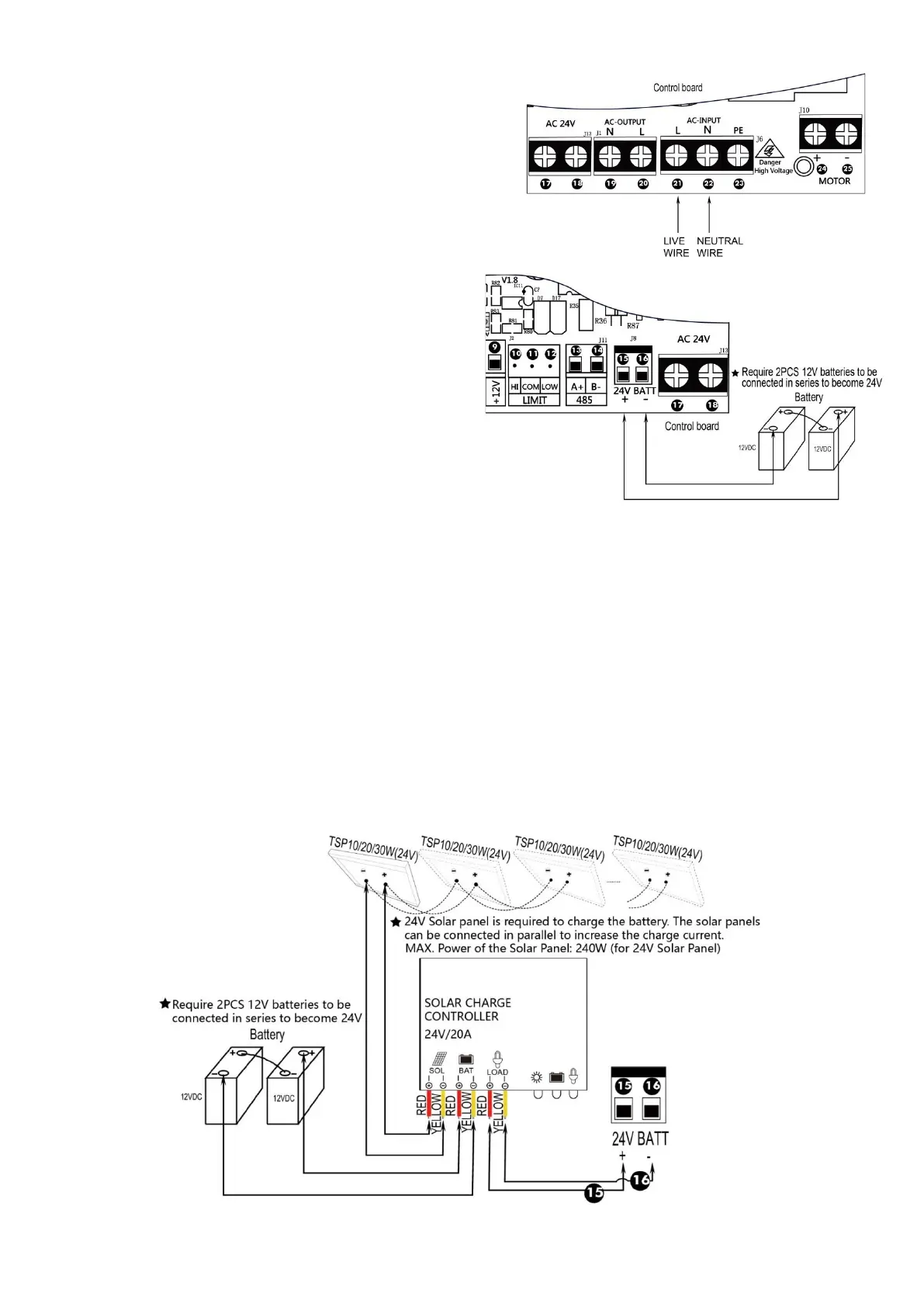

Power Mode 1. Only use the AC electricity as
the power source
The power supply cord should be at least 2×0.75mm
2
(2C×18AWG). Connect the live wire, neutral wire to the “L”,
“N” terminals respectively. (PE is no need to be connected
for this model of gate opener).
Power Mode 2. By AC electricity and back-up
batteries, only use the AC electricity to
charge the batteries
If the AC electricity failure happens rarely (less than 8
hours per day), then you can use minimum 5Ah
2*12VDC batteries as back-up power source in case of
AC power failure. In this situation, you can connect the
AC electricity following the “Power Mode 1” and the
batteries to the “24V BATT” terminal of the control
board directly as the wiring diagram.
Power Mode 3. Only use the batteries as the power source, only use the solar panel to
charge the batteries
If the AC electricity is not available, then you can choose the batteries as the power source and use the solar
panel to charge the batteries. The capacity of the batteries should be at least 17Ah and the power of the
solar panel should be at least 40W in this situation. The gate opener can run for 10 cycles per day without
connecting any other accessories except push button & warning light if the local average sunshine time is
more than 6 hours per day. The power of the solar panel and the capacity of the batteries should be
enlarged if the local average sunshine time is less than 6 hours per day or using one of the accessories
(photocell, external receiver, exit wand and keypad). Please provide us with more details of the local
sunshine condition and accessories needs which we can calculate the configuration of the solar panel and
the batteries. Please connect the batteries & the solar panels & solar controller refer to the following wiring
diagram.
