Power Mode 4. By AC electricity and back-up batteries, use the AC electricity and the
solar panel to charge the batteries at the same time
If the AC electricity failure happens frequently and lasts for a long time (maybe lasts for 4-5 days one time),
then you can charge the batteries with the AC electricity and the solar panel at the same time. The capacity
of the batteries should be at least 12Ah. You can connect the AC electricity following the “Power Mode 1”

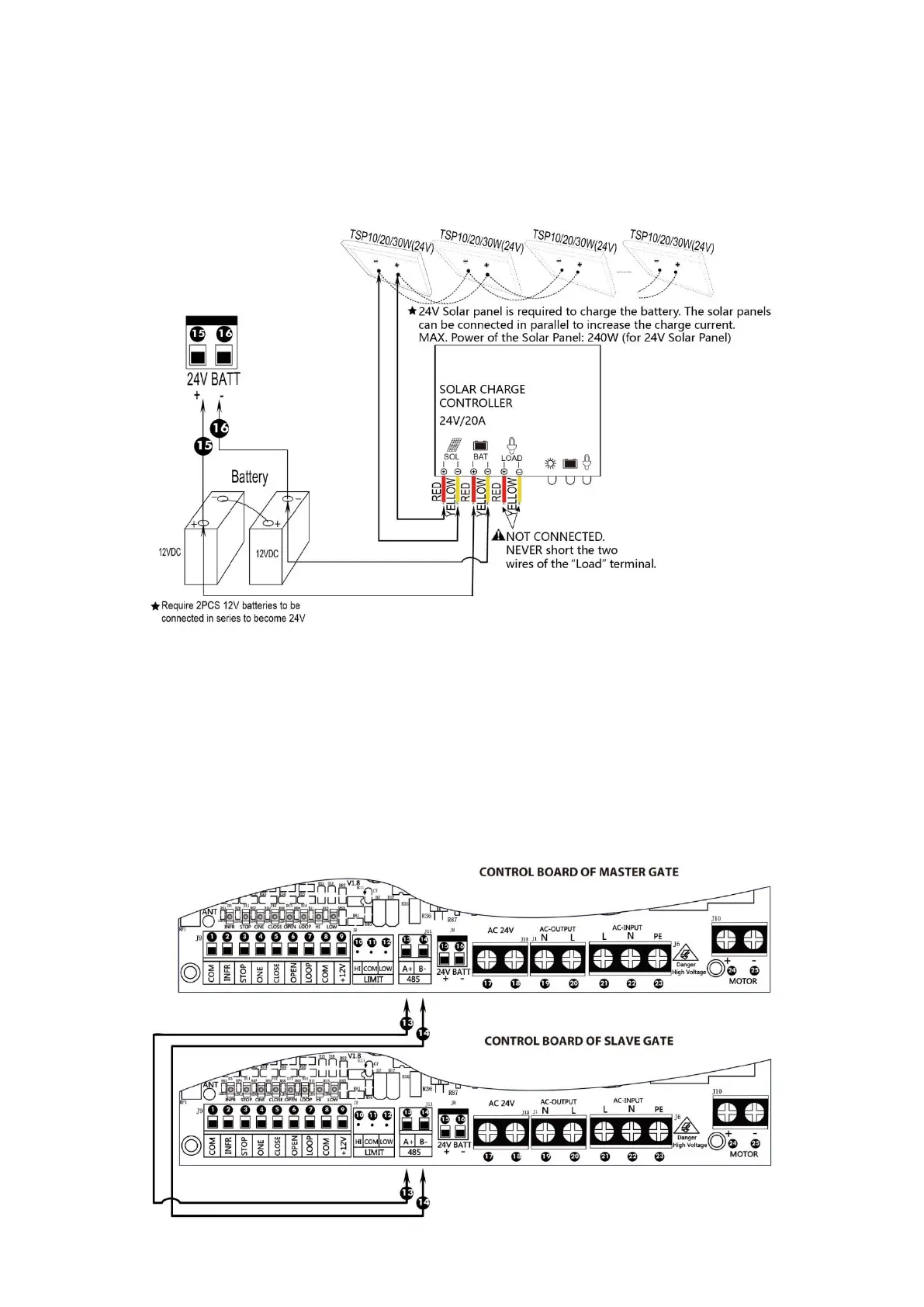

and the batteries & the solar panels & solar controller refer to the following wiring diagram.
Connection between Master and Slave Gate Opener
In the dual gate opener system, the slave gate opener is controlled by the master gate opener, so the slave
gate opener must be connected to the master gate opener for communication. Use a 2-core shield
twisted-pair wire (minimum size of the wire is 20AWG) to connect the two control board refers to the
following illustration.
NOTE: The maximum distance between the master and slave gate opener should be within 100ft. (30m).
