Installation of the Magnets
Before install limit switch, make sure the gate
opener is put in manual operation. (The clutch
connected with gear shaft is disengaged) and
the mains power supply is disconnected.

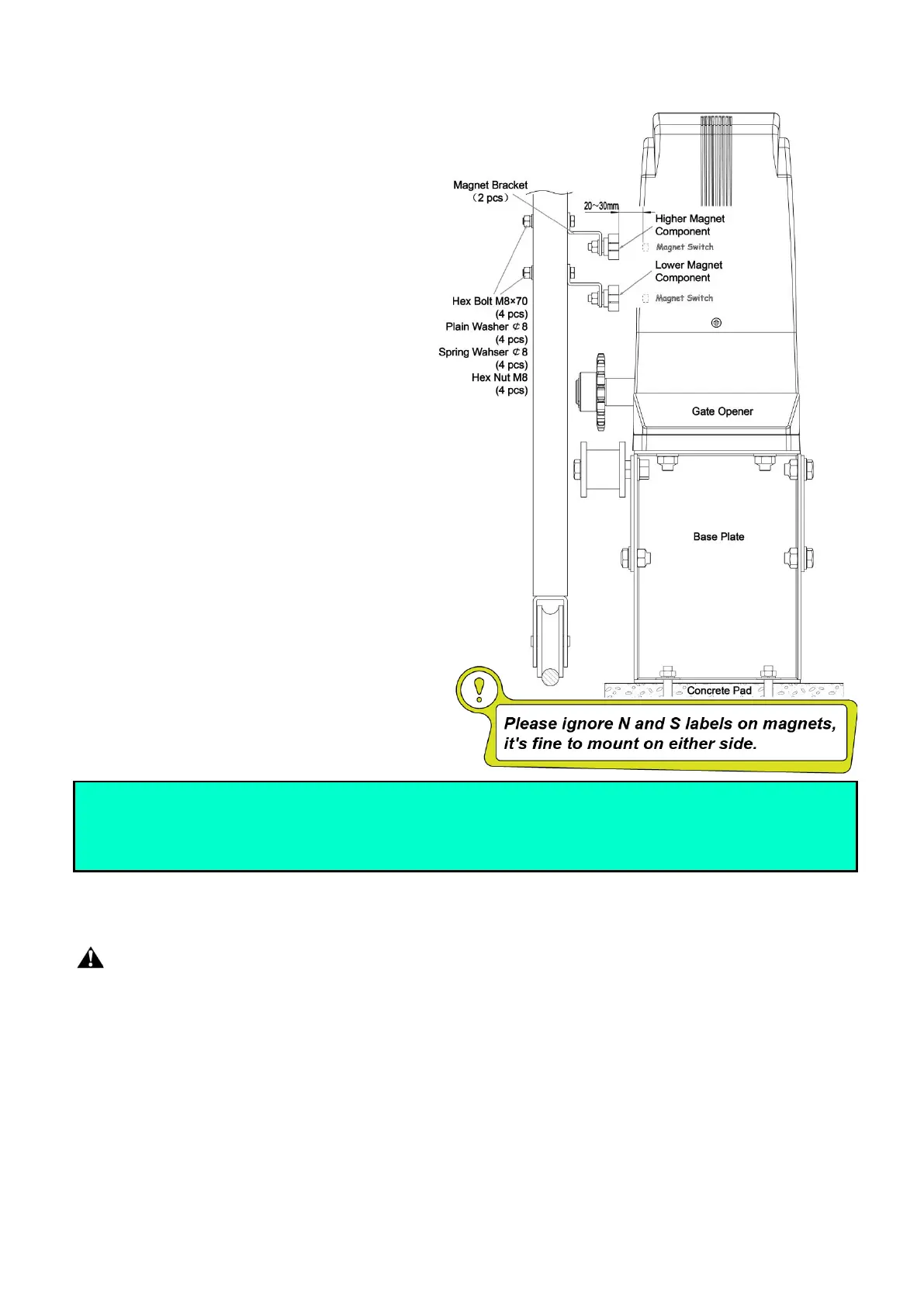

Position the two Magnet Components
approximately on the gate and move the gate by
hand to fix them in place.
Fit magnets bracket
Push the gate fully closed by hand. Locate and
install the magnet bracket so that the opener will
stop at the desired close position when the close
limit switch approaches it.
Push the gate fully open by hand. Locate and
install the magnet bracket so that the opener will
stop at the desired open position when the open
limit switch approaches it.
The lower magnet bracket must be installed
at left side and higher magnet bracket must
be installed at right side from the view inside
of property. Finally adjust the magnet to the
proper position by moving the gate with the
motor.
The magnets should be 25~30mm (1-1.2”)
away from the Limit Switch Box. If it is too near
or too far, the switches will fail to work. Adjust
the position of the magnets until the positions of
the opening and closing meet the requirement.
Connection of the Power Supply
WARNING: NEVER connect the gate opener to the power outlet before all the installations
have been done.
NOTE:
1. If batteries are chosen as the power source, Marine or Automotive Type Battery is required. The
batteries should be waterproof type, or be placed in water proof circumstance.
2. 2 PCS 12VDC batteries can be connected in series to function as 24VDC. The following diagram
shows on how to connect 2 PCS batteries in series.
3. Please note that the wire connection of the power supply system is very important. Incorrect wire
connection will damage the control board.
