Table 2.1: Power specification
Input voltage 90 to 250 V AC, 50/60 Hz
Power consumption 25 W at maximum in active
Table 2.2: Physical specifications
Size 340× 60× 265 mm
Weight 3.2 kg
Operating temperature 0 to 45
◦
C
Storage relative humidity 5 to 90 %
2.3 Rear panel connections

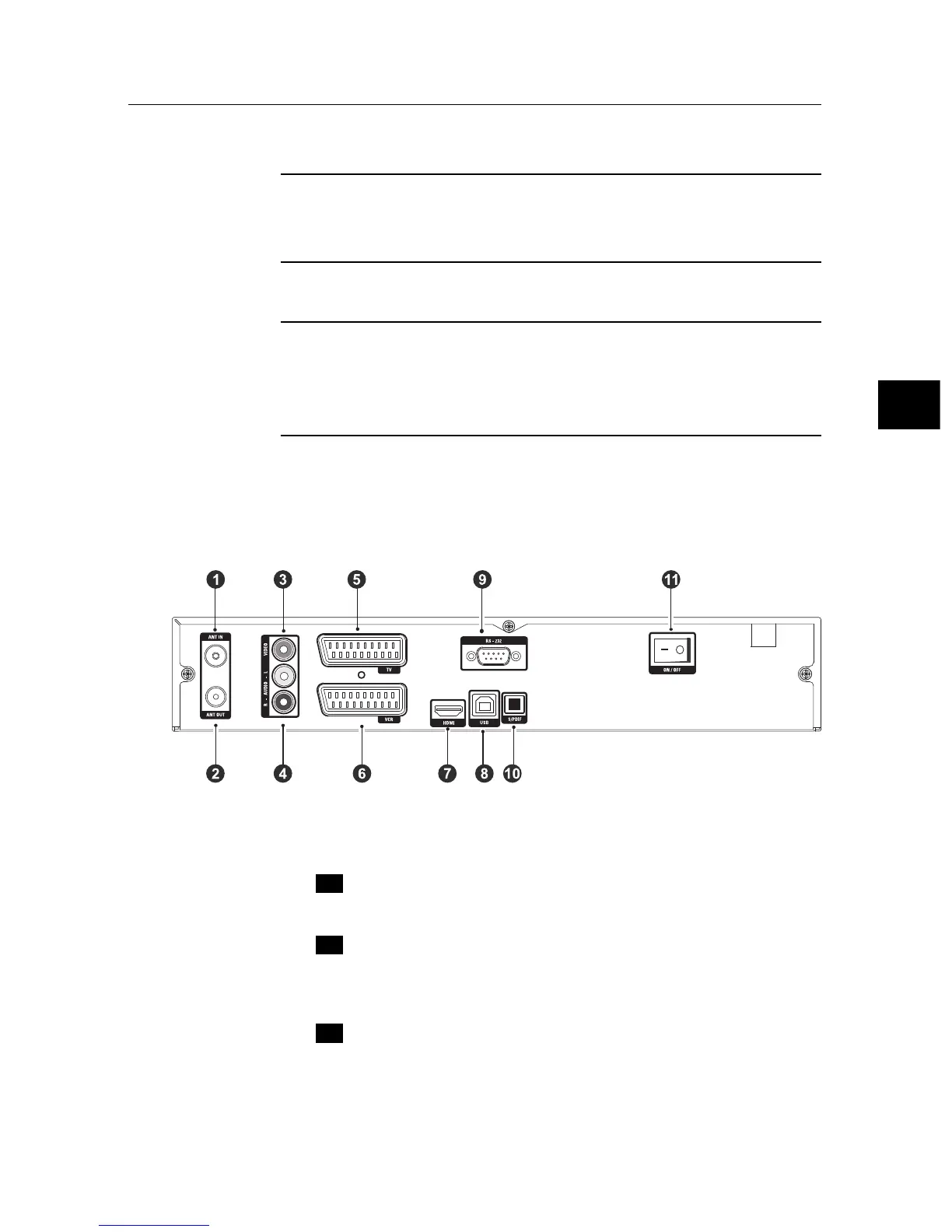

The TF 520 PVRt has a wide range of connections on the back.
TV
VCR
Check what connections your television set has in comparison
with the digital receiver.
.
.
.
1
ANT IN Terrestrial broadcasting signal input socket
(5V, Max.100mA)
.
.
.
2
ANT OUT Terrestrial broadcasting signal output socket
through the ANT IN socket for another dig-
ital receiver
.
.
.
3
VIDEO Composite video output socket for the tele-
vision set (yellow)
