Toptech FCM II User Manual

Chapter 3 – Field Wiring
32
FCM II Installation Guide: 20160419 - Part # 2307
3.2.14 3 OUTPUT AIR ELIMINATOR WIRING
Gnd/Overfill Switched
Line
N.O. Digital
Valve
Solenoid
N.C. Digital
Valve
Solenoid
Port 2 Output
Port 3 Output
Air Purge
Valve
Solenoid
Top Float Switch
Bottom Float Switch
Neutral
High
Low
Not Low Low
Air Eliminator
Neutral
Note 2: Port 1 configured as Alt. High Flow Rate Inversed. When this signal is removed,
the flow rate will drop to the Alt. High Flow Rate.
Note 1: When the level drops below Low Low, the power will be removed from the digital
valves, stopping flow before the air eliminator is completely drained.
L N L N
A1 A2 A3 A4
 
Bottom Side
Bottom Row
Port 0
Port 1
L N L N
B1 B2 B3 B4
Bottom Side
Middle Row
Port 2
Port 3
L N L N
C1 C2 C3 C4
Bottom Side
Top Row
Port 4
Port 5
A
B
Terminal
Number
A
B
C
In Out In Out
A1 A2 A3 A4
Bottom Side
Bottom Row
Port 0
Port 1
In Out In Out
B1 B2 B3 B4
   
Bottom Side
Middle Row
Port 2
Port 3
1 2 3 4 1 2 3 4

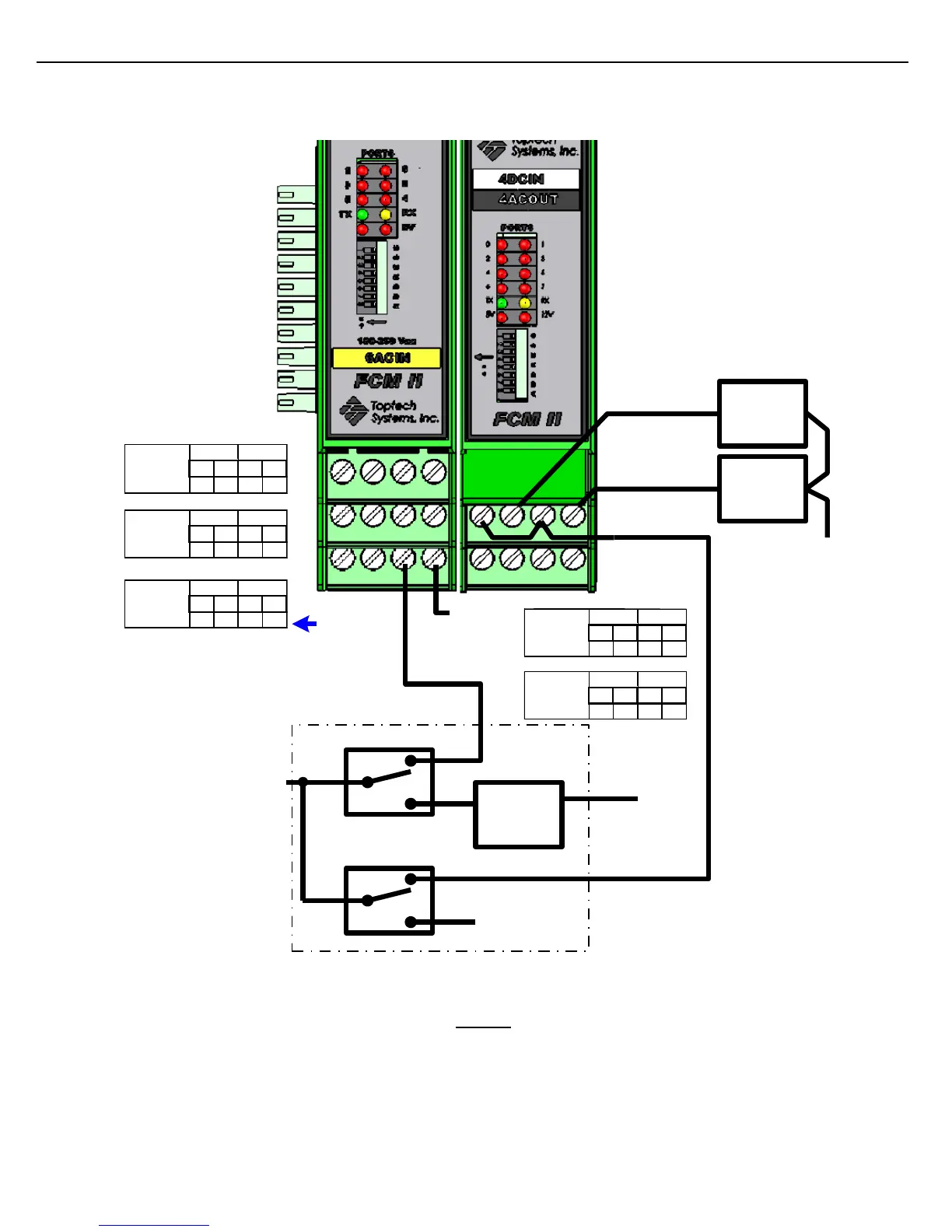

Figure 3.15 FCM II Field Wiring: 3 Output Air Eliminator
