4. Removetheold“wallwart”powerconnectorandreplaceitwithwires501,502.Thesewireswillberoutedtothe
newDCBusBoard,andyouwillbeabletothrowoutthewallwartpowersupply.

supply.

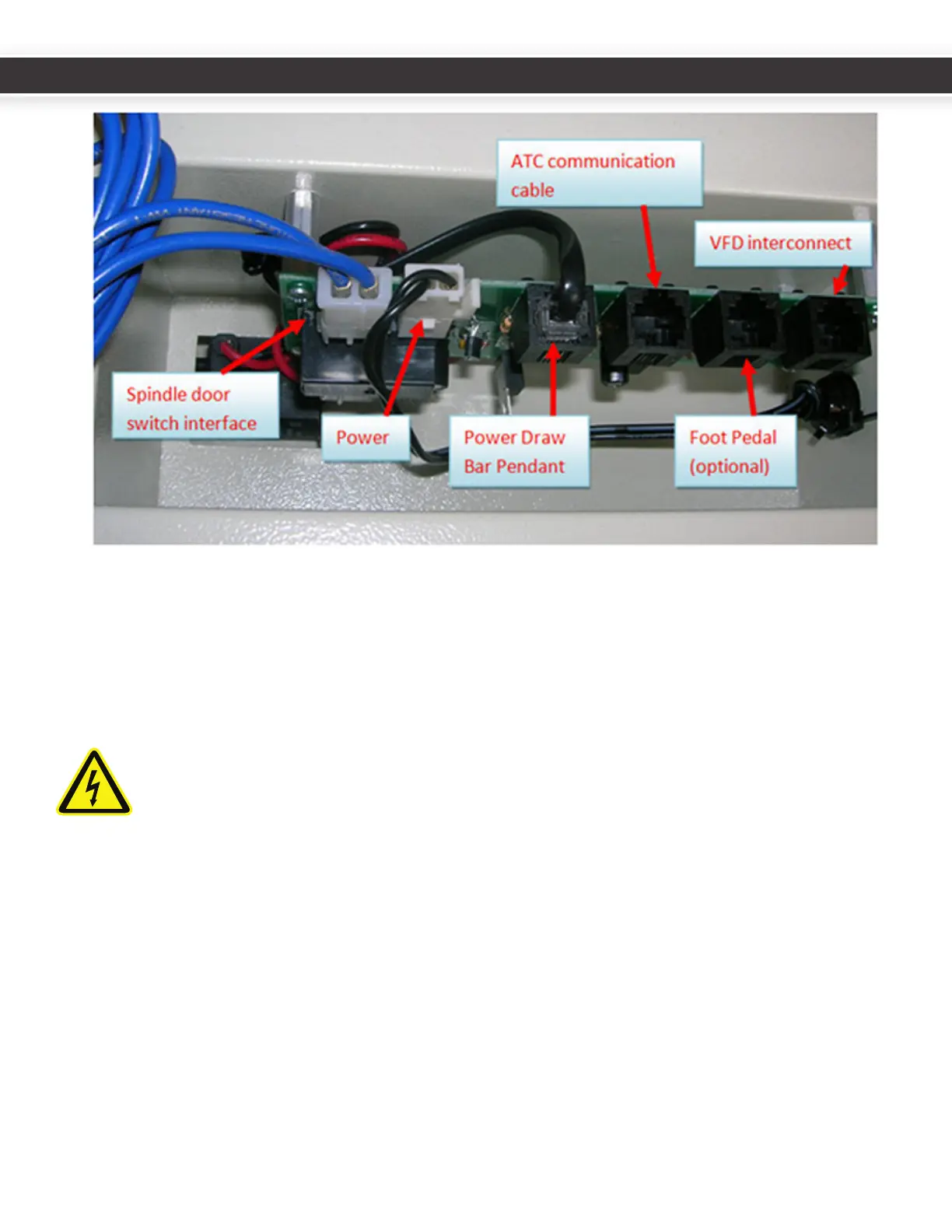

5. Routeallwires(thetwoRJ11cables,thebluespindledoorswitchinterfacewires,andthepowerwires503,504)
throughthemillcolumn.


COLUMN. THESE WIRES CARRY 110V AC AND IN RARE CASES CAN CAUSE EMF THAT
DISTURBS USB SIGNAL TRANSMISSION WHEN THEY ARE NOT TWISTED. TWISTING THE
WIRES CANCELS THIS EMF.
