11
BEFORE USE
HANDLING OF THE PACKED MACHINE
The machine is supplied with suitable packing
foreseen for fork lift truck handling.
The total weight is 148kg (326 lbs.).
The packing dimensions are:
Base: 138 cm x 67 cm (54"x26")
Height: 119 cm (47")
Do not place more than 2 packages on top of
each other.

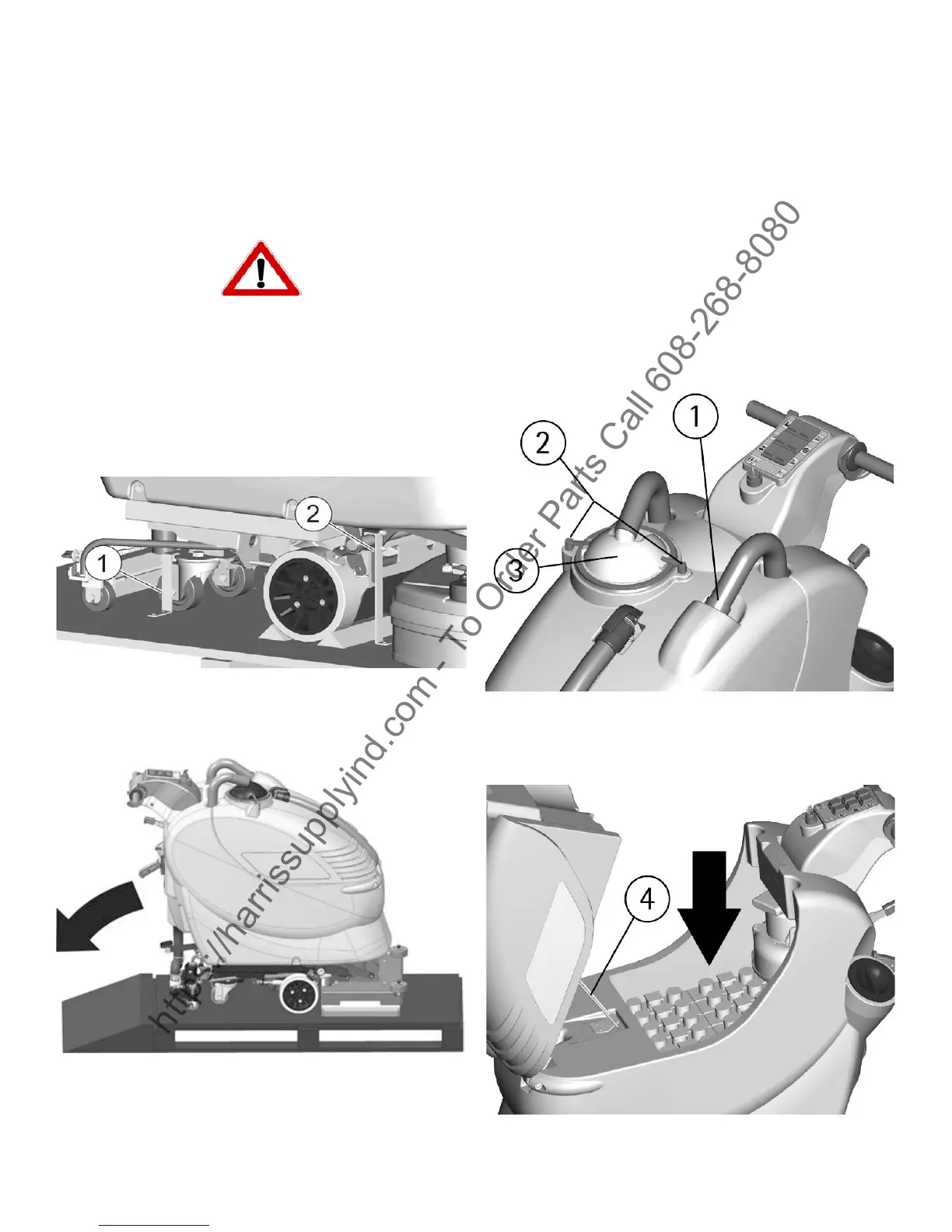

UNPACKING OF THE MACHINE
1. Remove the external packing.
2. Unscrew the brackets (1+2) that secure the
machine to the pallet.
3. Provide for an inclined base.
4. Move the machine backwards, as indicated in
the gure, avoiding heavy contacts to mechanical
parts.
5. Keep the pallet and the brackets for eventual
transport.
BATTERY INSTALLATION
The machine is equipped either with batteries in
serial connection or elements of DIN-type assem-
bled together and connected in series, placed in
its appropriate compartment under the recovery
tank and must be handled using suitable lifting
equipment (due to weight, considering the type of
batteries chosen, and coupling system).
The batteries must be in accordance with CEI
21-5 Norms.
For batteries installation proceed as follows:
1. Take off the squeegee hose (1).
2. Take off the suction cover (2) after turning the
blocking levers (3).
3. Lift the recovery tank by rotating it and x it
with the suitable bar (4).
4. Place the batteries in its compartment.
