8

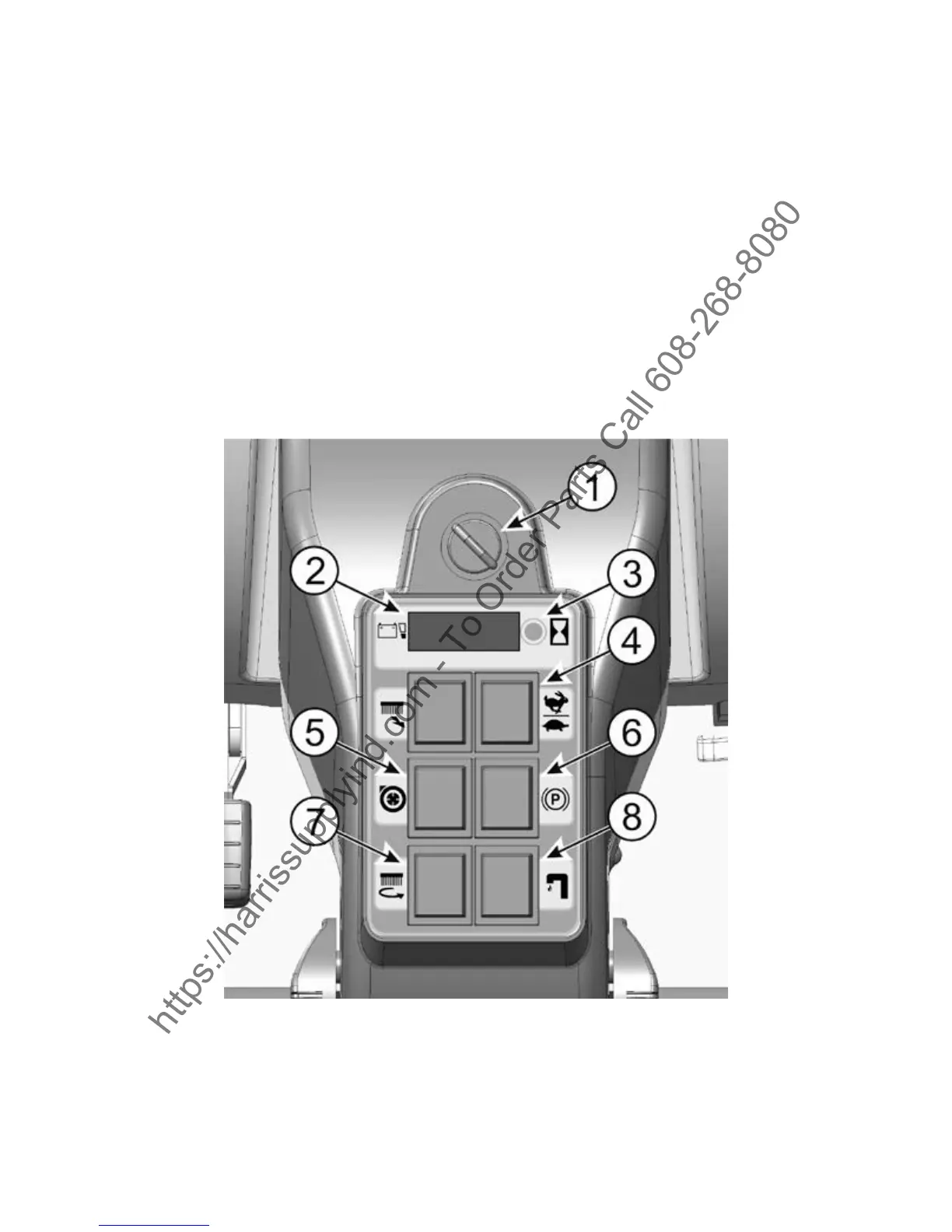

LEGEND INSTRUMENT BOARD AND CONTROLS
1. SWITCH WITH KEY
2. DISPLAY CHARGE LEVEL BATTERIES/HOUR METER
3. PUSH BUTTON VISUALIZATION HOUR METER (DISPLAY)
4. SWITCH SPEED SELECTION
5. SWITCH SUCTION MOTOR
6. SIGNAL LAMP BRAKE ON
7. SWITCH BASE MOTOR
8. SWITCH SOLENOID VALVE
