Tornado OB 20/14 User Manual

9

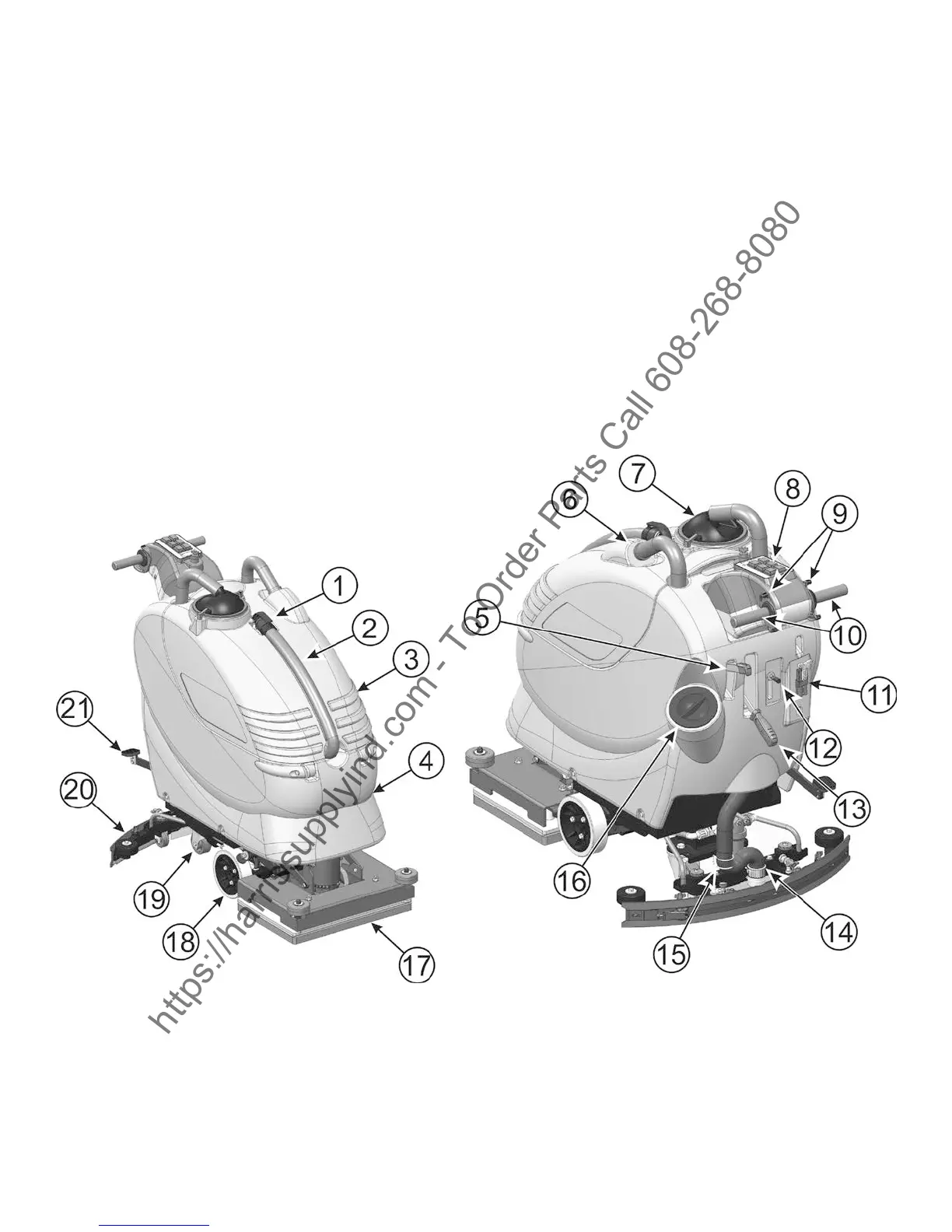

LEGEND MACHINE
1. DRAIN HOSE PLUG
2. DRAIN HOSE
3. RECOVERY TANK
4. SOLUTION TANK
5. LEVER PARKING / EMERGENCY BRAKE
6. INLET OPENING SQUEEGEE HOSE
7. SUCTION COVER
8. INSTRUMENT BOARD
9. LEVERS DRIVE CONTROL
10. HANDLE BARS
11. CONNECTOR BATTERIES
12. LEVER SOLUTION VALVE
13. LEVER SQUEEGEE LIFTING
14. SQUEEGEE HOSE
15. GUIDE SPRING SQUEEGEE HOSE
16. SCREW CAP FOR INLET SOLUTION TANK
17. BASE GROUP
18. WHEELS
19. CASTOR WHEELS
20. SQUEEGEE ASSEMBLY
21. PEDAL BASE GROUP LIFTING
