20

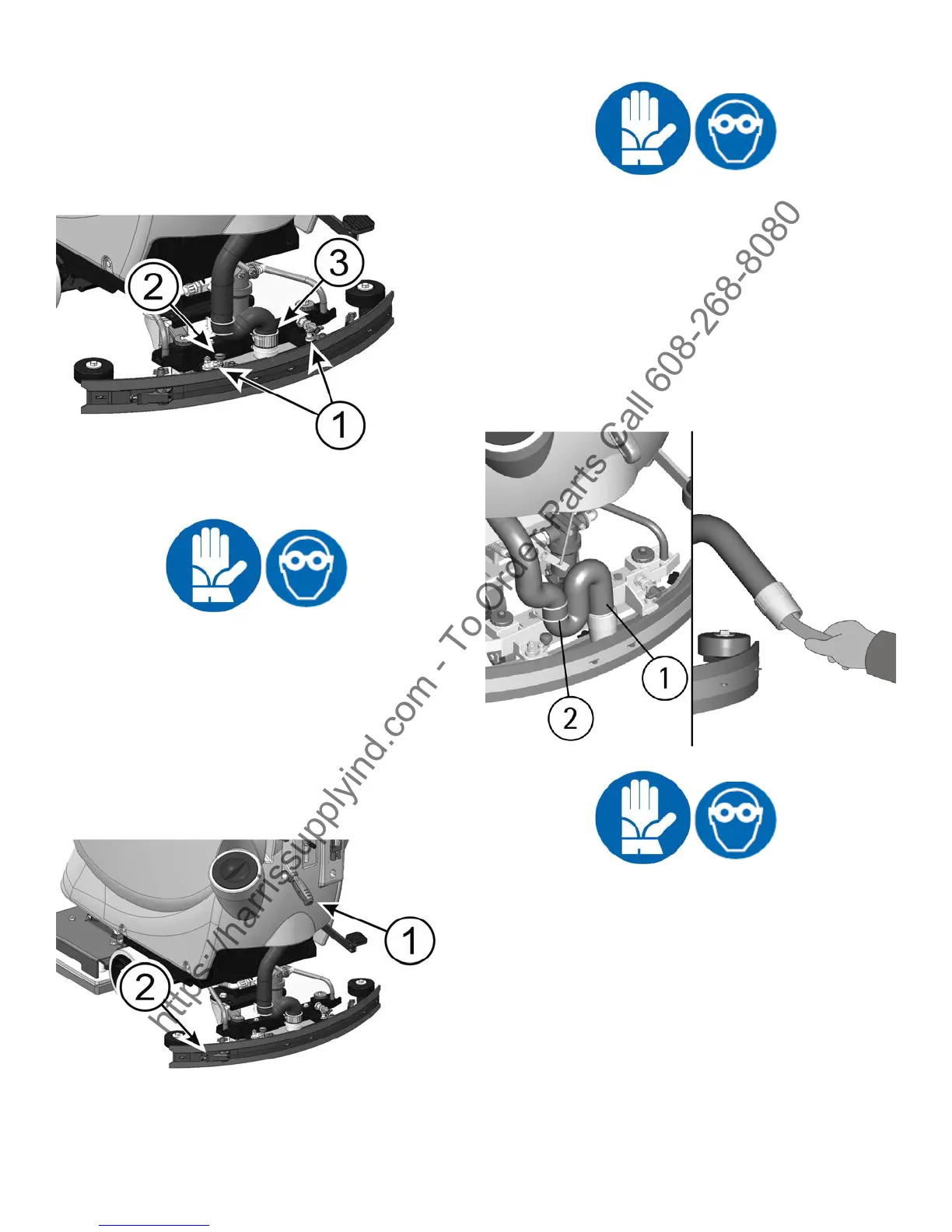

2. Disassemble the squeegee from the support
rotating the lever (2) counterclockwise sliding the
stud bolts (1) in their slots.
3. Clean with care the internal part of the squee-
gee inlet eliminating eventual dirt residuals.
4. Clean with care the squeegee rubbers.
5. Reassemble all parts.
WEEKLY MAINTENANCE
REAR SQUEEGEE RUBBER CHECK
Check the squeegee rubber wear and eventually
turn or replace it.
For the replacement it is necessary to:
1. Lift the squeegee acting upon the lever (1).
2. Release the hook (2) of the rubber holder
blade and take the rubber off.
3. Turn the rubber to a new side or replace it.
To reassemble the squeegee reverse the opera-
tions above, inserting the rubber on the guides
and blocking it with the rubber holder blade.
SQUEEGEE HOSE CLEANING
Weekly or in case of insufcient suction, it is
necessary to check that the squeegee hose is
not obstructed. Eventually, to clean it, proceed as
follows:
1. Take off the hose from the squeegee coupling
(1) and release the guide spring of the squeegee
hose (2).
2. Wash the inside of the hose with a water jet,
from the squeegee hose side.
3. To reassemble the hose reverse the operations
above.
CLEANING OF SOLUTION TANK AND FILTER
1. Bring the machine to an appropriate place for
tanks draining.
2. Unscrew the solution tank cap (1).
3. Unscrew the exhaust plug (2).
4. Rinse with a water jet the solution tank.
5. Rinse the solution tank lter placed inside the
exhaust plug (2).
6. Reassemble all parts
