TWO-MONTHLY MAINTENANCE
FRONT SQUEEGEE RUBBER CHECK

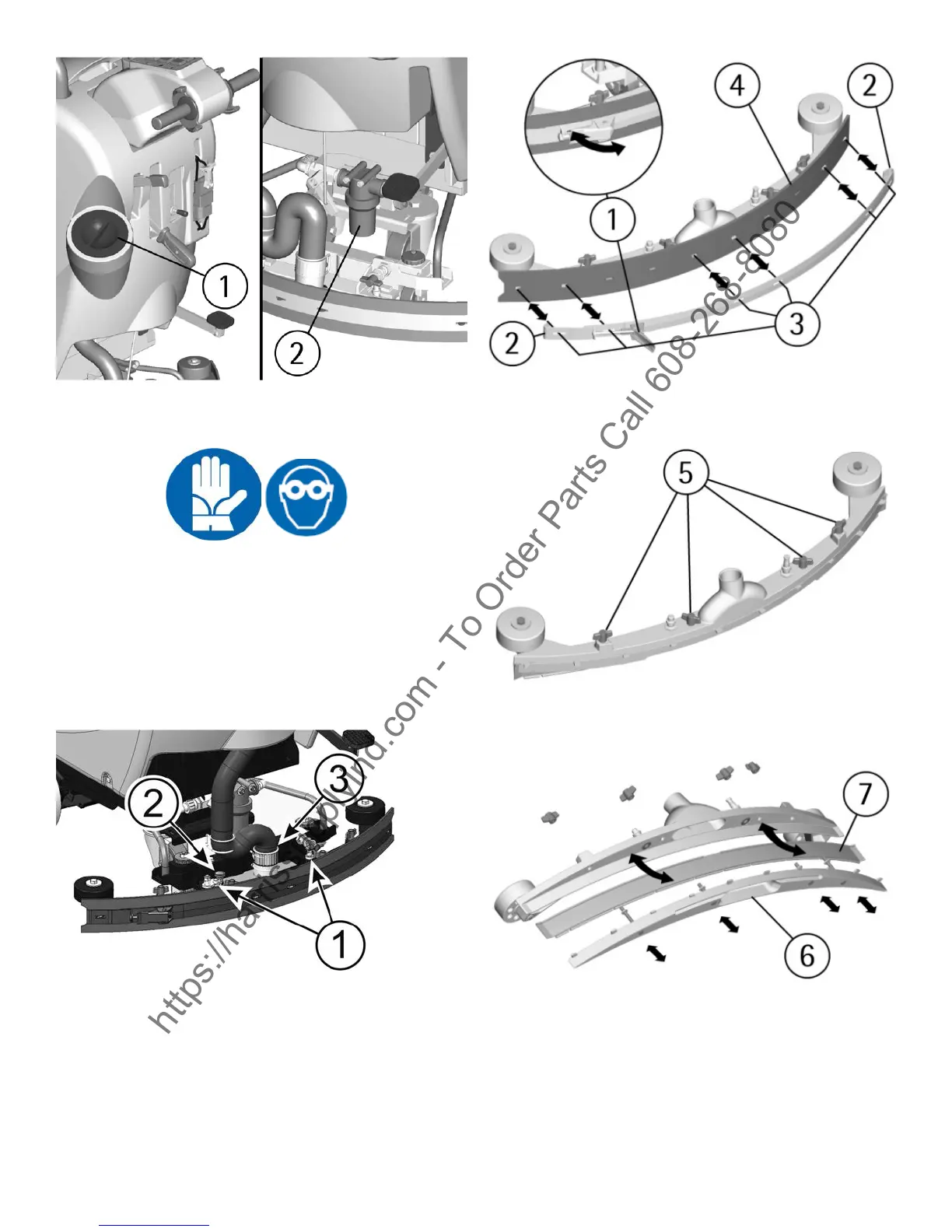

Check the wear of the squeegee rubber and
eventually replace it.
For the replacement it is necessary to:
1. Take off the squeegee hose (3) from its cou-
pling.
2. Disassemble the squeegee from the support
rotating the lever (2) counterclockwise and sliding
the stud bolts (1) in their slots.
3. Uncouple the hook (1) of the rubber holder
blade, release the extremities (2) from the squee-
gee body and take off the rubber (4).
4. Unscrew the wing nuts (5) in the upper part of
the squeegee.
5. Slip off the lower part (6) of the squeegee
body, so to take off the front rubber (7).
6. Replace the front rubber.
To reassemble the squeegee reverse the opera-
tions above.
