14
After a few seconds from the blinking of the four
lines, the base motor stops automatically. With
the remaining charge it is still possible to nish
the drying operation before proceeding to the
charge station.

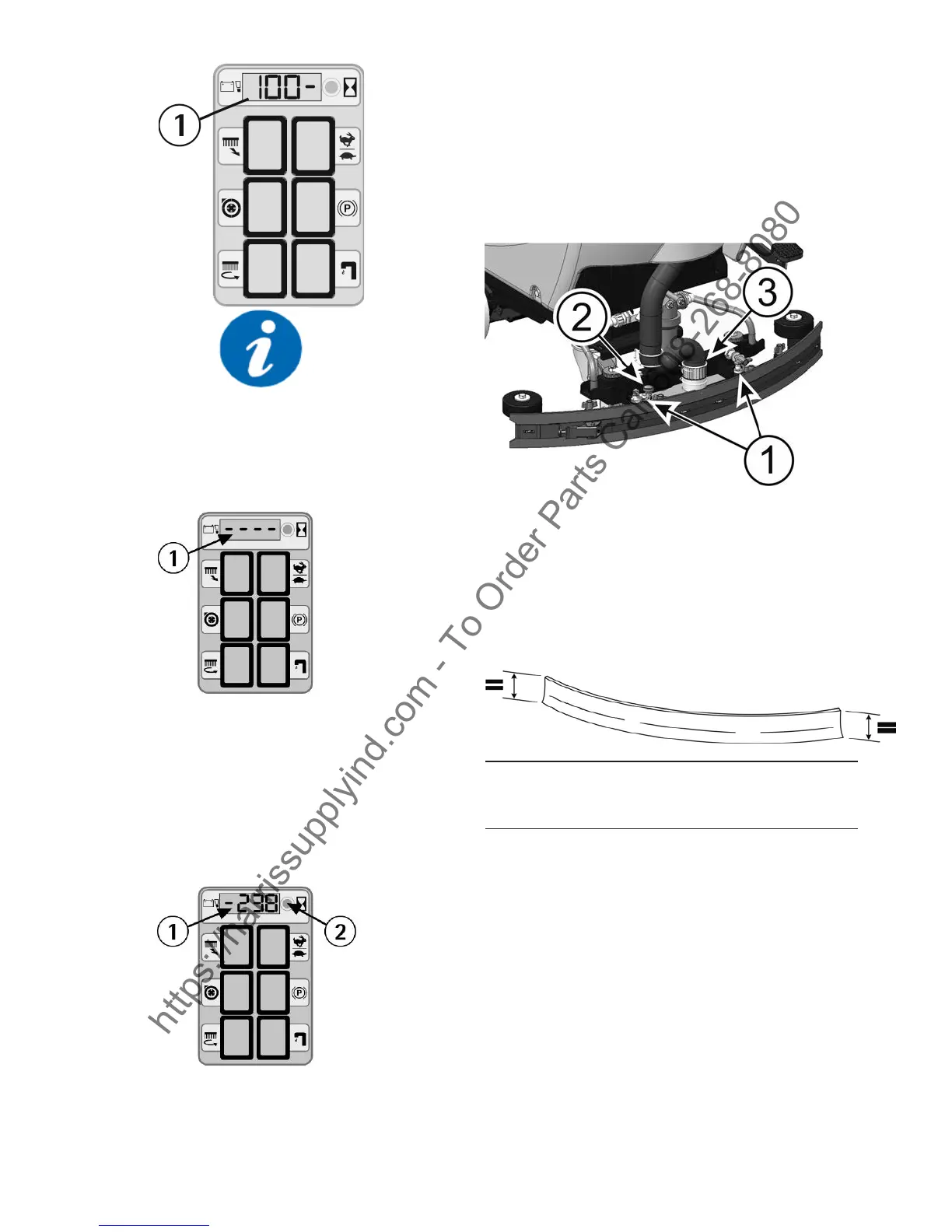

HOUR METER
The machine is equipped with an hour meter
located on the same display of the battery charge
level indicator (1). Keeping the button (2) pressed
for more than 3 seconds, the rst data indicates
the working hours and after a few seconds the
working minutes are shown.
SQUEEGEE ASSEMBLY
With the squeegee support slightly lifted from the
oor, slide the two stud bolts (1) placed on the
upper part of the squeegee, inside the slots on
the support. Block the squeegee by rotating the
lever (2) clockwise.
Insert the squeegee hose (3) into its coupling,
respecting its position as indicated in the gure.
ADJUSTMENT OF THE SQUEEGEE
In order to have a perfect drying result through
the squeegee, the rear rubber must have the low-
er bending uniformly adjusted in all its length. For
the adjustment, it is necessary to put oneself in
working condition and therefore the suction motor
has to be switched on and the brushes have to
function together with the detergent solution.
The lower part of the rubber is too much bent
Take off the pressure rotating the wing nut (4)
counterclockwise.
The lower part of the rubber is not much bent
Increase the pressure rotating the wing nut (4)
clockwise.
